Back-Up Light System: Location

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

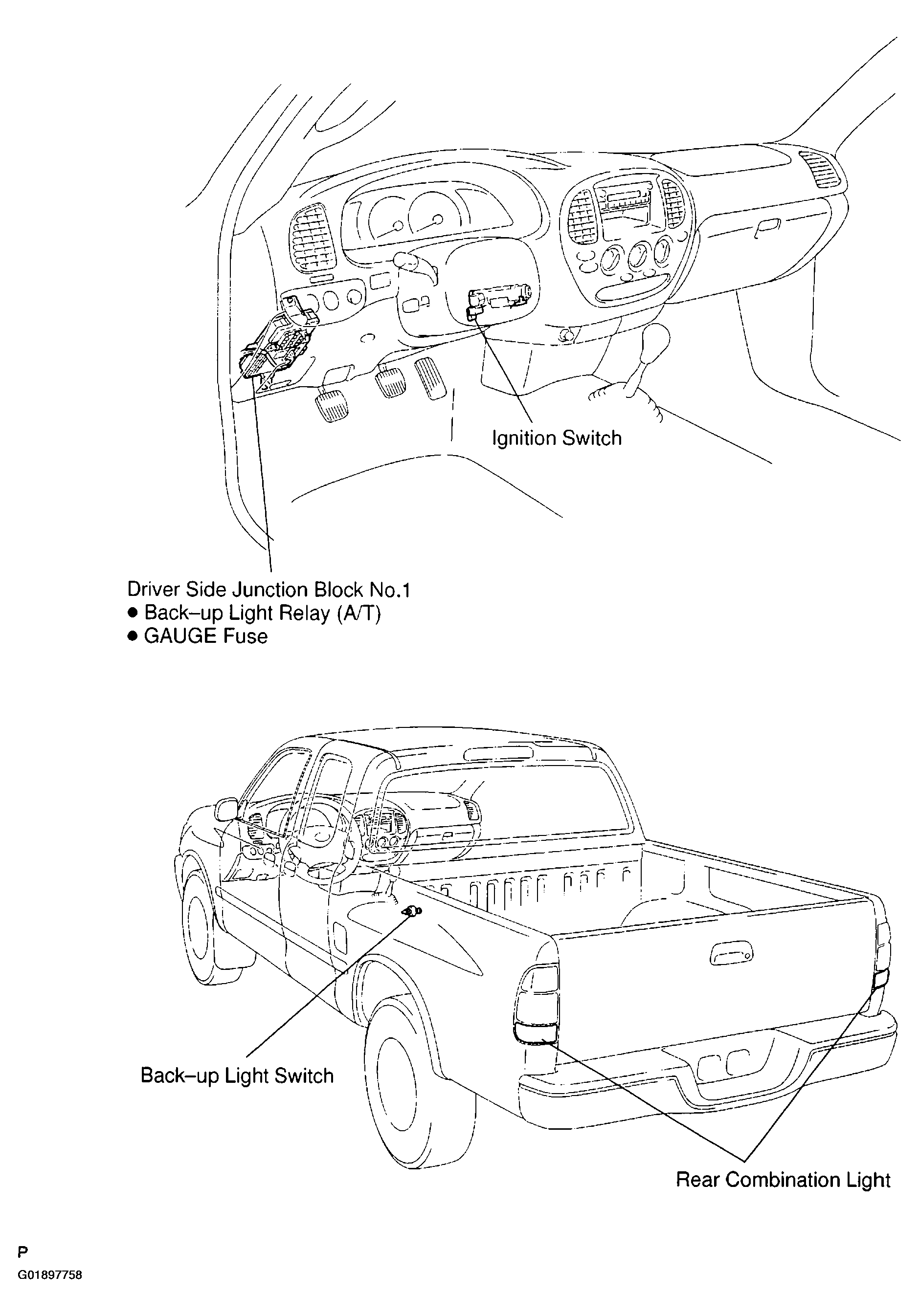

Fig 1: Locating Backup Light System Components
G01897758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

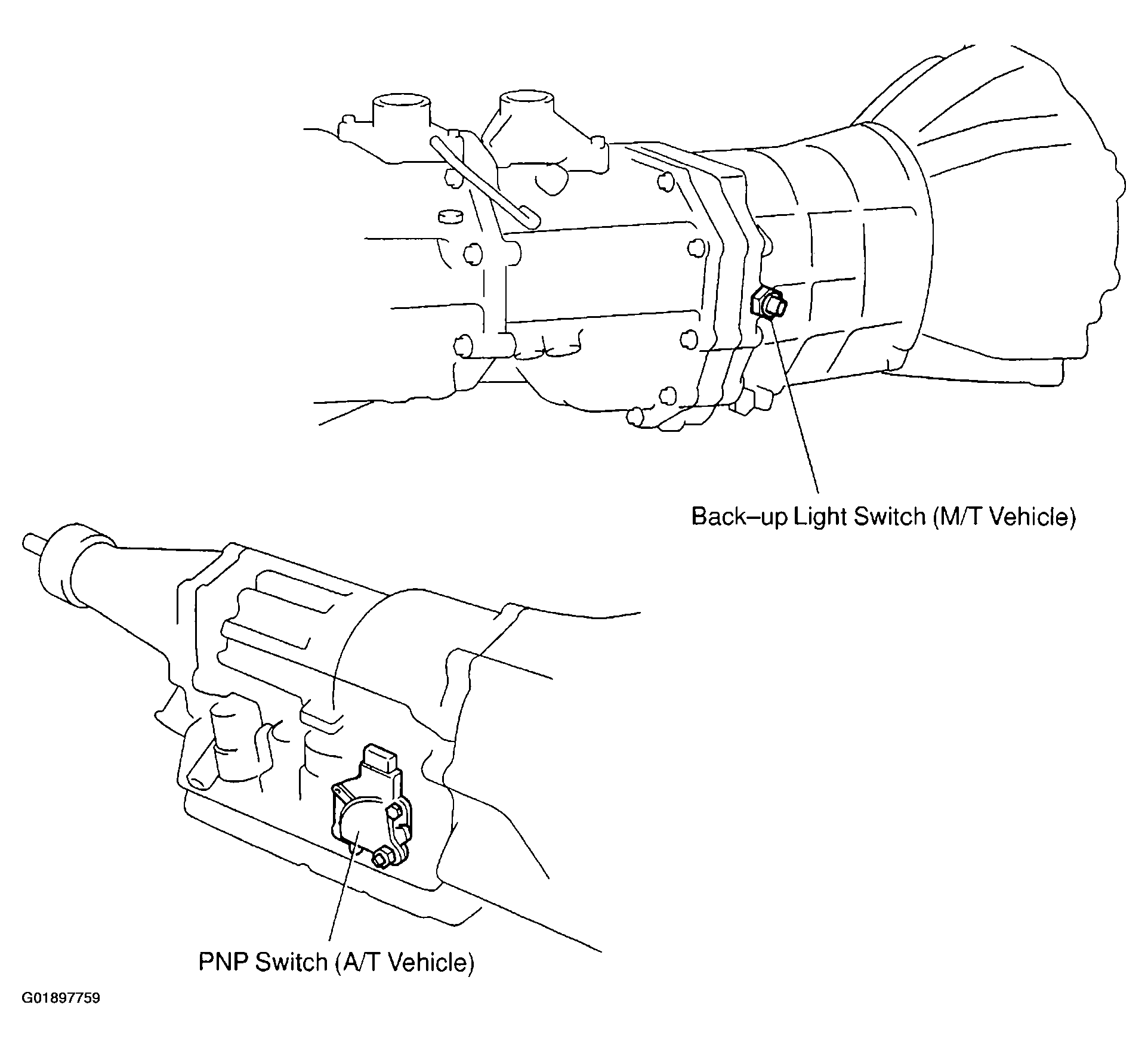

Fig 2: Locating Park/Neutral Position (A/T) & Back-Up Light (M/T) Switches
G01897759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
