Step 9 - Inspect Fuel Sender Gauge Resistance

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Measure the resistance between terminals 1 and 2 for each float position.

Fig 1: Identifying Fuel Sender Positions & Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

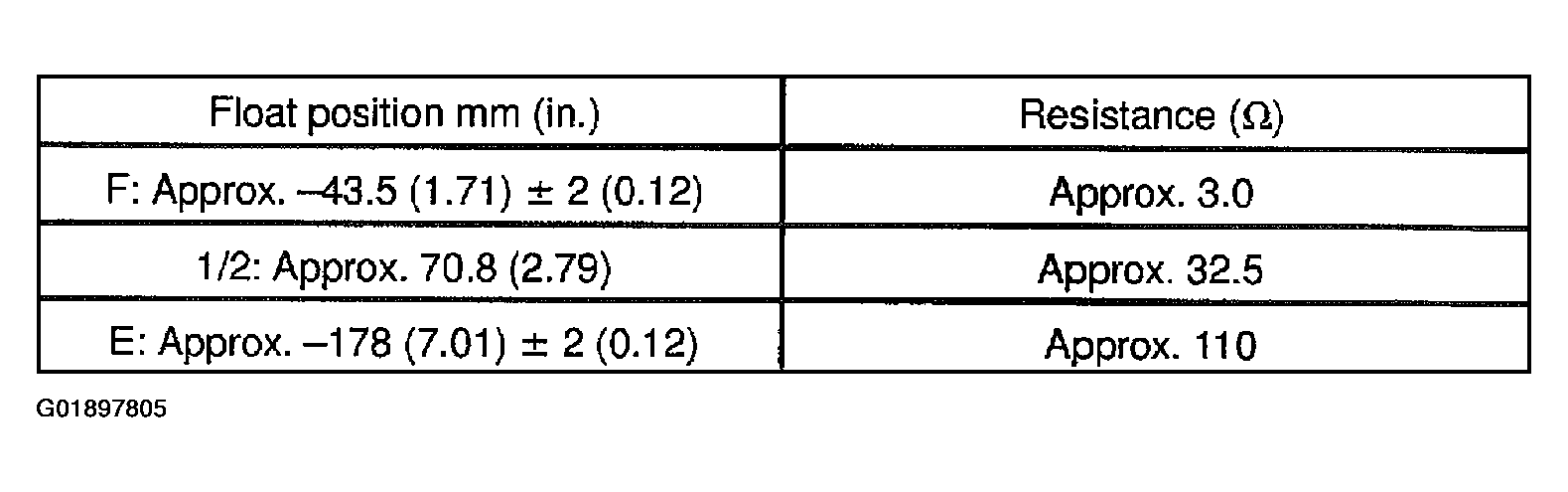

Fig 2: Fuel Sender Specifications

If resistance value is not as specified, replace the main sender gauge.
