Step 30 - Passenger's Seat Only: Inspect Seat Belt Warning Occupant Detection Sensor Continuity

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Check that continuity exists between the terminals 1 and 2 when pressing the sensing part.

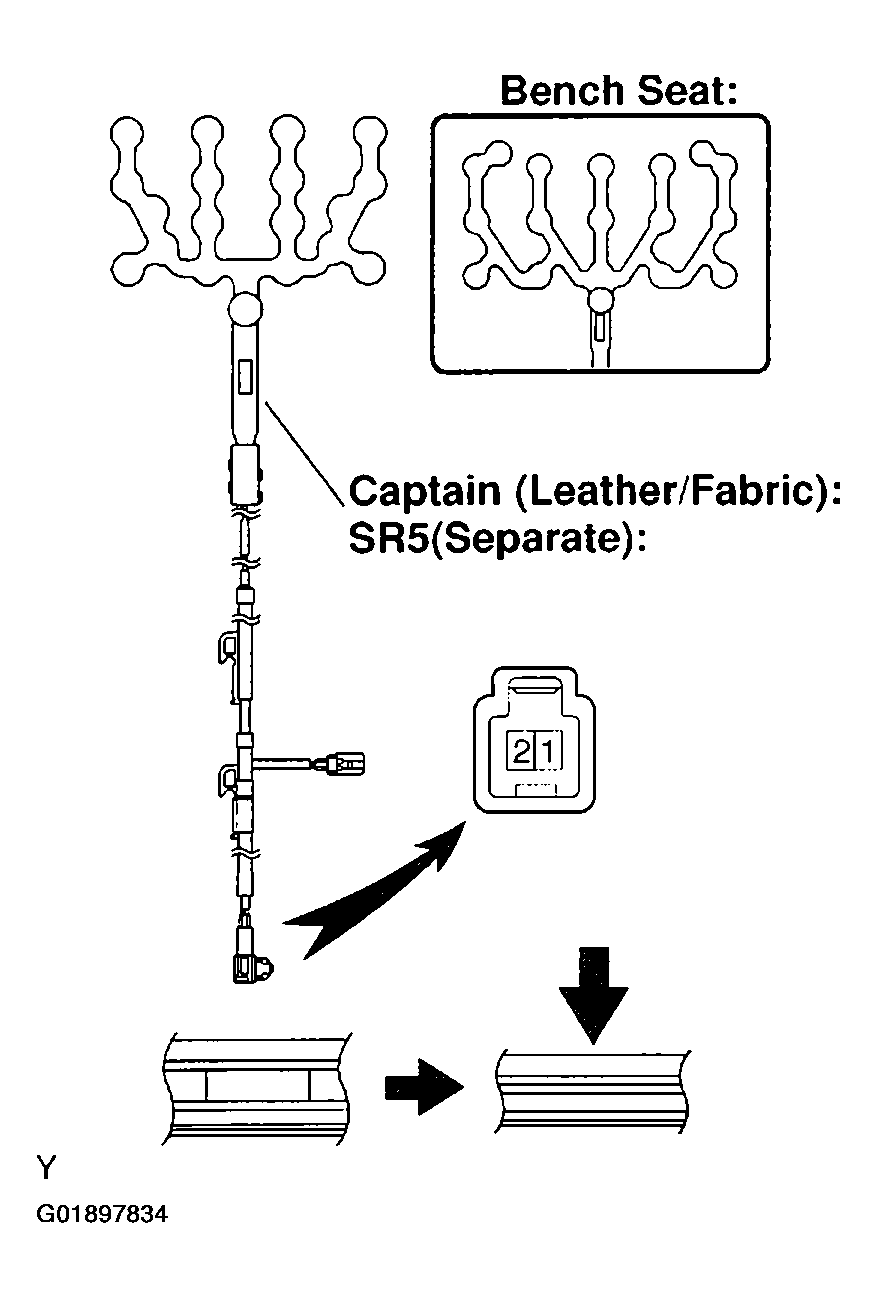

Fig 1: Testing Seat Belt Warning Occupant Detection Sensor (Passenger's Seat Only)

If operation is not as specified, replace the sensor.
