Connector Disconnected

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the connector from the relay and inspect the connector on the wire harness side.

Fig 1: Identifying Daytime Running Light Relay Connector Terminals (Wire Harness Side)
G01897728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

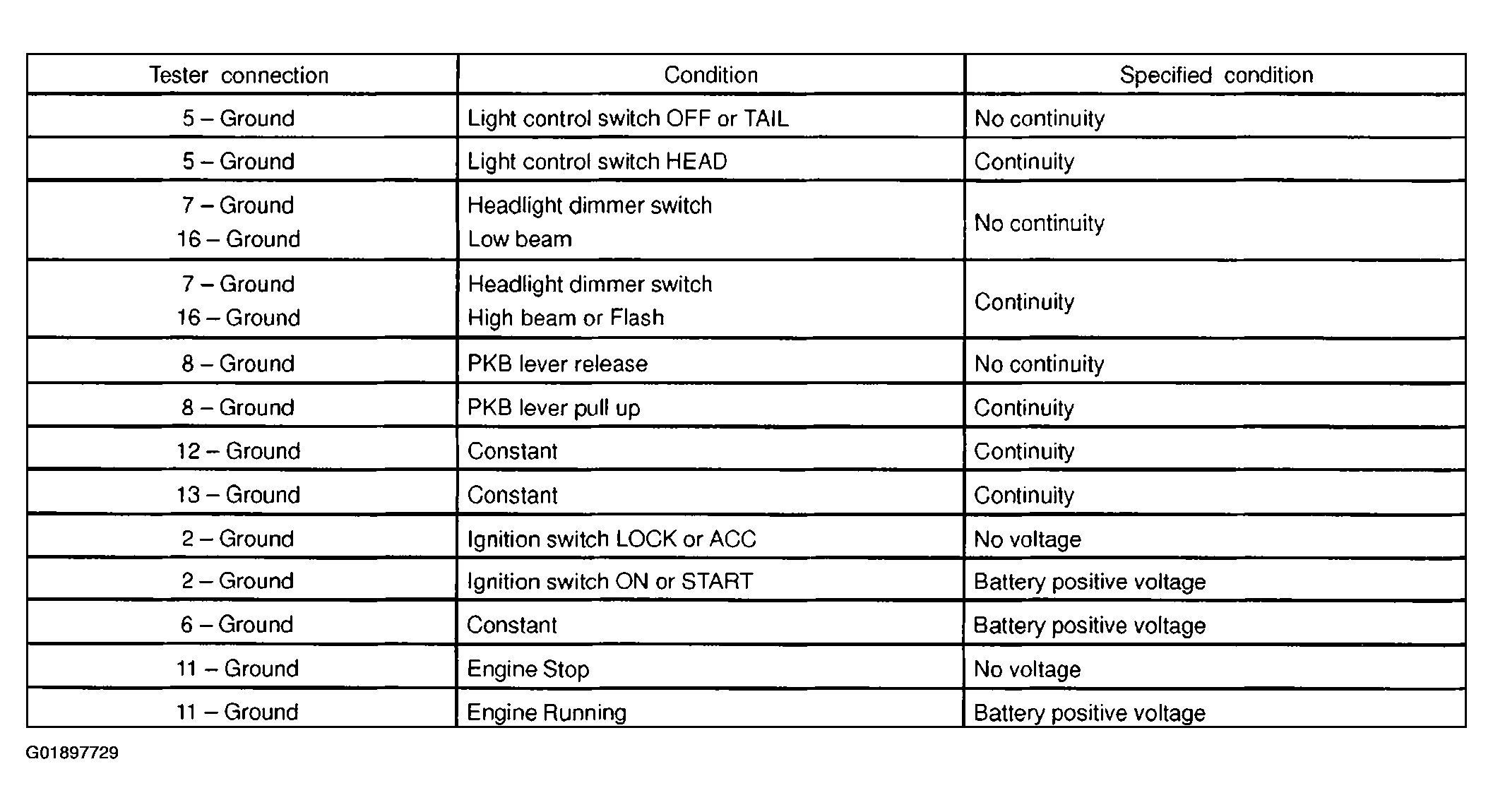

Fig 2: Daytime Running Light Relay Connector Terminal Specifications (Wire Harness Side)
G01897729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If circuit is as specified, perform inspections.
