Connector Connected

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Connect the wire harness side connector to the relay and inspect wire harness side connector from the back side.

Fig 1: Identifying Daytime Running Light Relay Connector Terminals (Back Side)
G01897730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

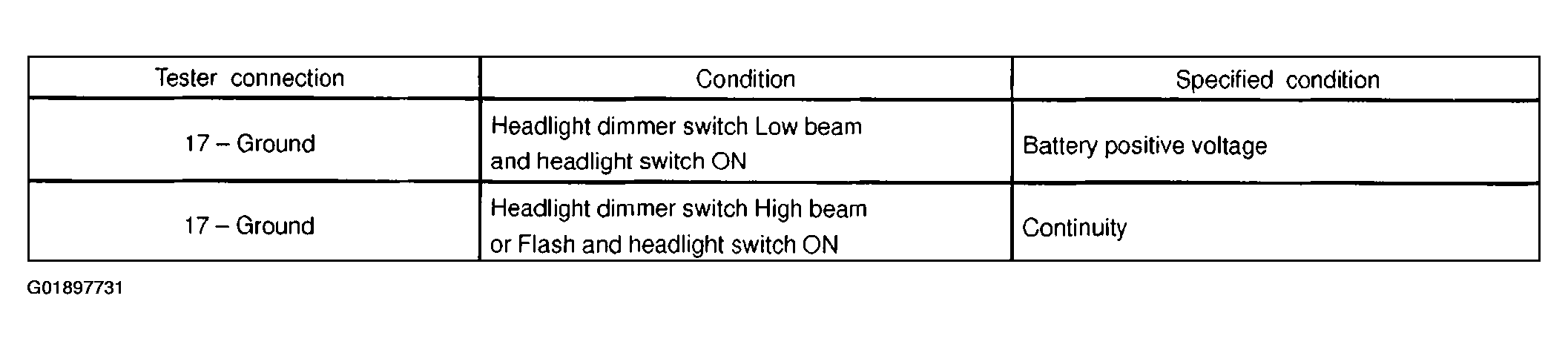

Fig 2: Daytime Running Light Relay Connector Terminal Specifications (Back Side)
G01897731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If circuit is not as specified, trying replacing the relay with a new one.
