CAMRY SOLARA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS (CAMRY SOLARA)
| Application |
Ft. Lbs. (N.m) |
| A/F Sensor |
32 (43) |
| Air Intake Chamber Bolt/Nut |
32 (43) |
| Air Intake Chamber Support Brace Bolt |
15 (20) |
| Control Lever Nut |
11 (15) |
| Coolant Housing Bolt/Nut |
11 (15) |
| ECT Sensor |
15 (20) |
| EGR Gas Temperature Sensor |
15 (20) |
| Engine Hanger Bolt |
29 (39) |
| Engine Mount Support Brace Bolt |
23 (31) |
| Fuel Line-To-Intake Manifold Clamp Bolt |
15 (20) |
| Heated Oxygen Sensor |
32 (43) |
| Intake Air Control Valve Nut |
11 (15) |

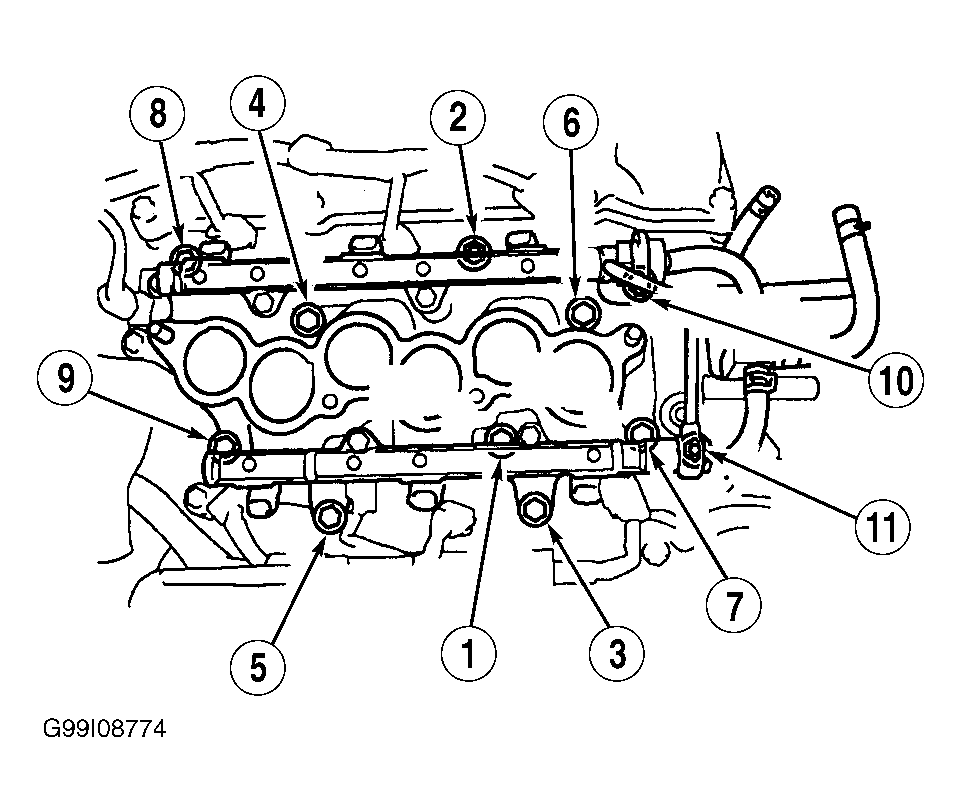

| Intake Manifold Bolt/Nut |
11 (15) |
| Knock Sensor |
29 (39) |
| Power Steering Pressure Switch |
15 (20) |
| Suspension Upper Brace Nut |
59 (80) |
| Throttle Body Bolt/Nut |
14 (19) |
| Vehicle Speed Sensor Retaining Bolt |
| A/T |
|
| M/T |
13 (18) |
| INCH Lbs. (N.m) |
| Camshaft Position Sensor Bolt |
71 (8.0) |
| Crankshaft Position Sensor Bolt |
71 (8.0) |
| EGR Pipe Nut |
106 (12.0) |
| EGR Position Sensor-To-EGR Valve Nut |
18 (2.0) |
| EGR Valve Retaining Nut |
106 (12.0) |
| Fuel Pressure Regulator Retaining Screw |
18 (2.0) |
| Fuel Pump Protector Cover Bolt |
35 (4.0) |
| Fuel Pump Retaining Plate-To-Fuel Tank Bolt |
35 (4.0) |
| Fuel Rail-To-Intake Manifold Bolt |
89 (10.1) |
| Ignition Coil Bolt |
71 (8.0) |
| PNP Switch Retaining Bolt |
48 (5.4) |
| PNP Switch Retaining Nut |
61 (6.9) |
| Round Fuel Filter Retaining Screw |
18 (2.0) |
