Ignition Coil: Installation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Tighten bolt for ignition coil to specification. See TORQUE SPECIFICATIONS .
When installing spark plug wire on ignition coil, ensure spline on ignition coil aligns with spline on holder and install spark plug wire. Ensure holder is properly positioned on grommet and ignition coil. See Fig 2. Lightly pull upward on holder to ensure lock claw is securely locked in place.

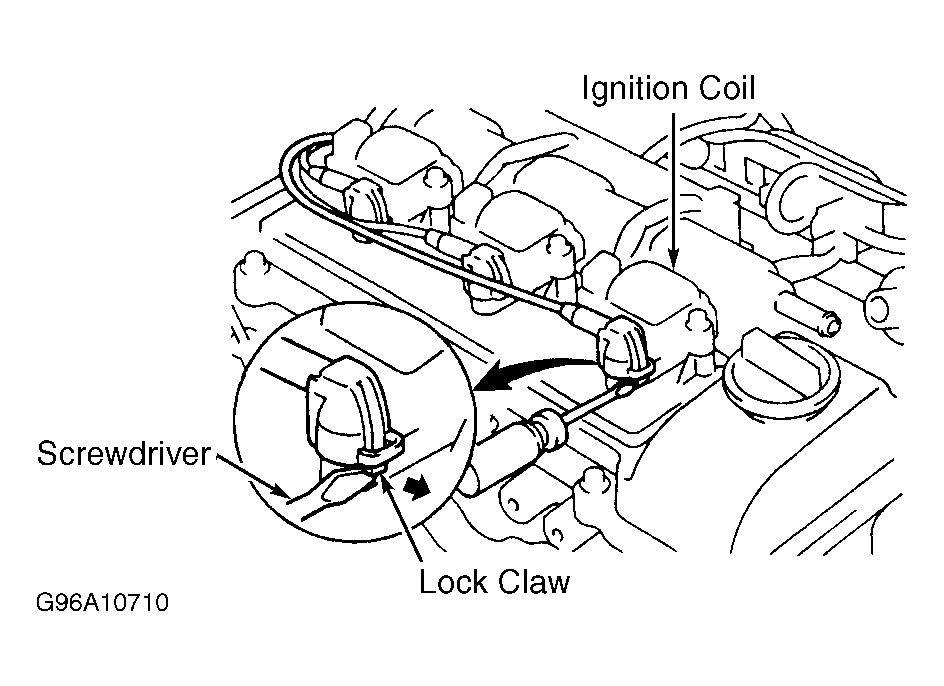

Fig 1: Releasing Lock Claw On Spark Plug Wire (Camry Solara)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

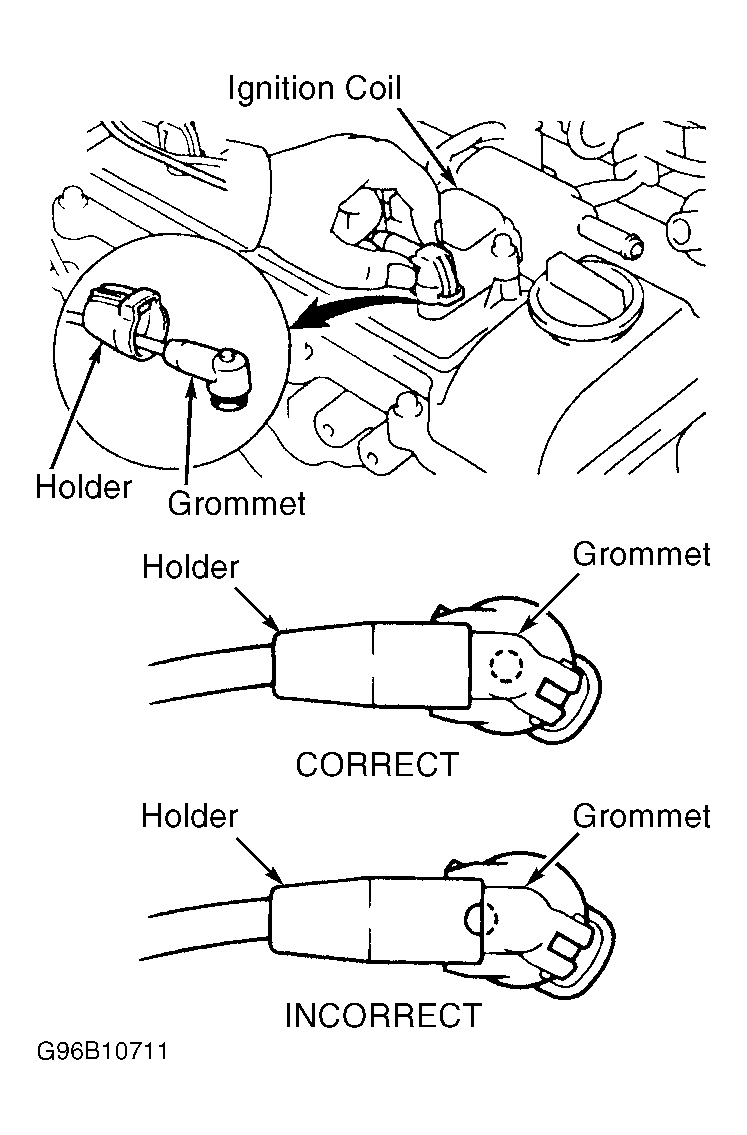

Fig 2: Identifying Holder, Grommet & Checking Holder & Grommet Installation (Camry Solara)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

To install, reverse removal procedure. Tighten bolt for ignition coil to specification. See TORQUE SPECIFICATIONS .
When installing spark plug wire on ignition coil, ensure spline on ignition coil aligns with spline on holder and install spark plug wire. Ensure holder is properly positioned on grommet and ignition coil. See Fig 2. Lightly pull upward on holder to ensure lock claw is locked in place.

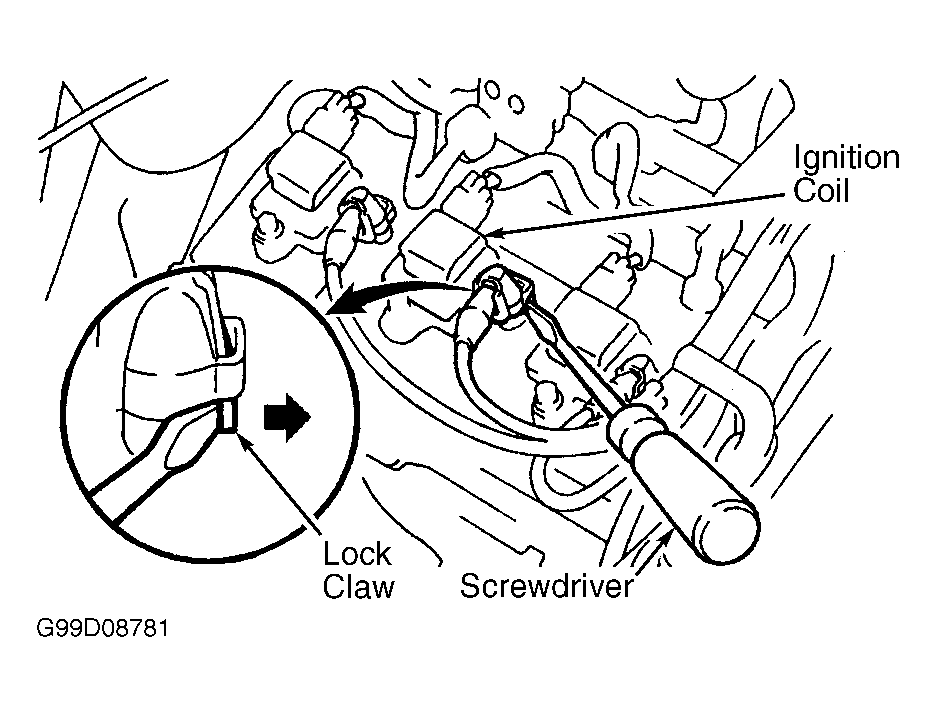

Fig 1: Releasing Lock Claw On Spark Plug Wire (Tacoma, Tundra 3.4L & 4Runner)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

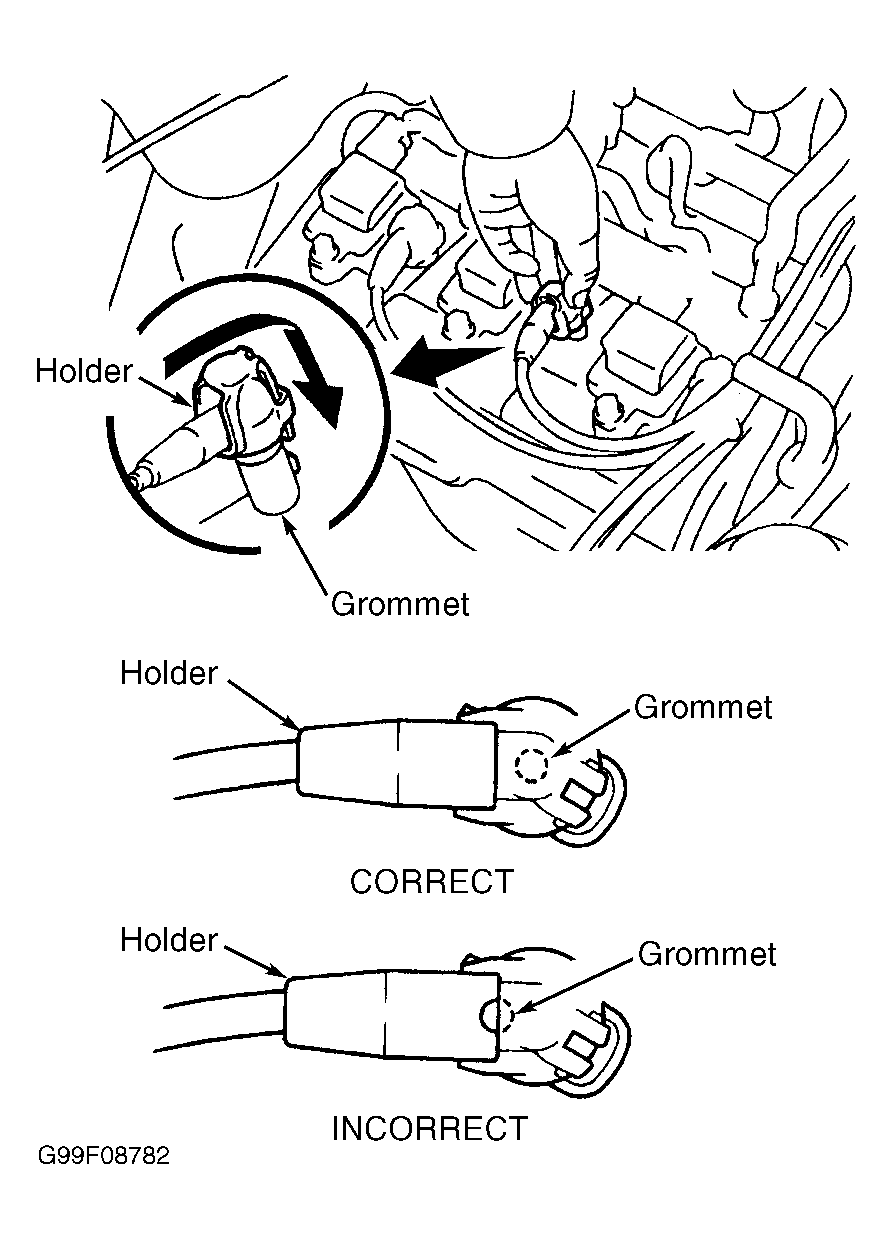

Fig 2: Identifying Holder, Grommet & Checking Holder & Grommet Installation (Tacoma, Tundra 3.4L & 4Runner)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
