Removal & Installation (Land Cruiser, Sequoia & Tundra 4.7L)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

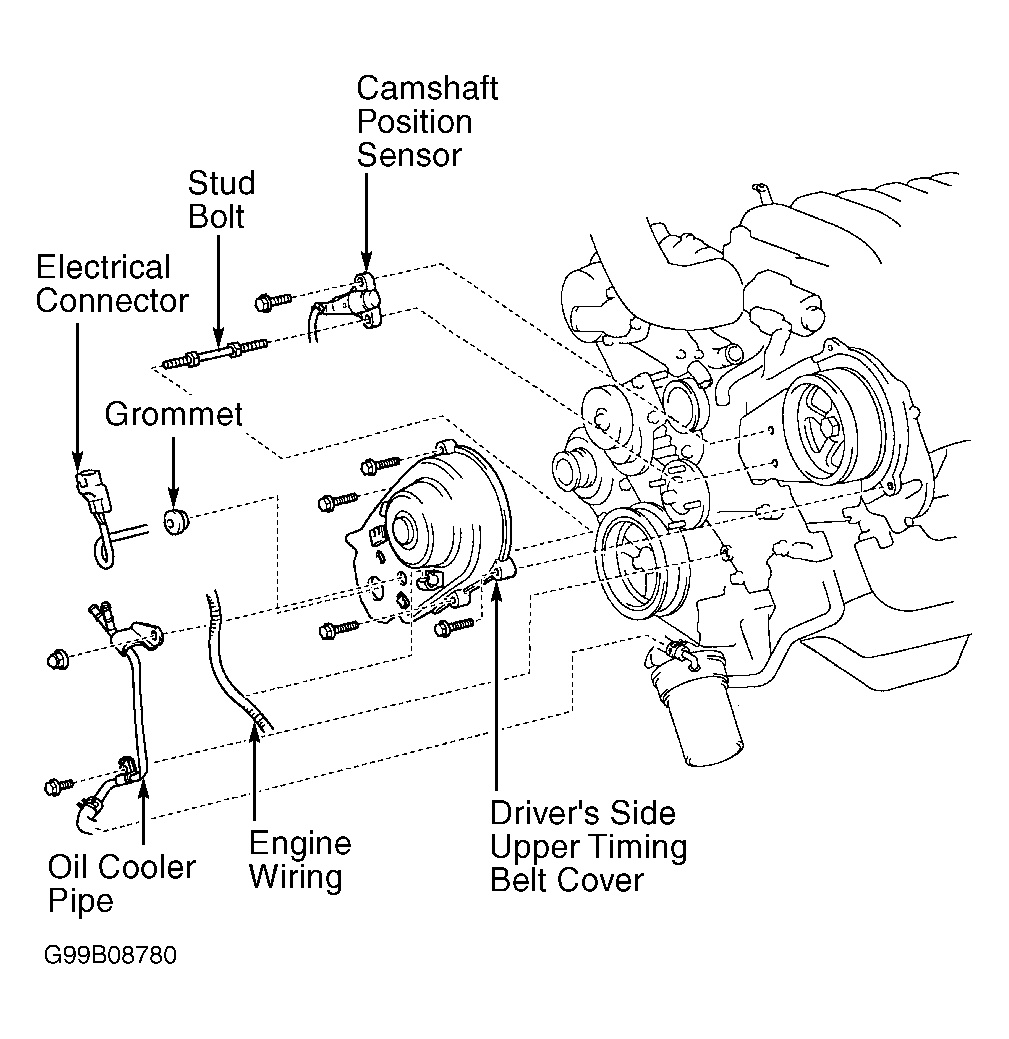

- Camshaft position sensor is located behind driver's side upper timing belt cover, near camshaft sprocket with electrical connector near front of driver's side upper timing belt cover. See Fig 1.
- On Land Cruiser, remove intake manifold cover. On all models, drain cooling system. Disconnect upper radiator hose. Remove necessary components for access to driver's side upper timing belt cover. It may be necessary to remove accessory drive belt by rotating automatic belt tensioner counterclockwise as viewed from front of engine for access to driver's side upper timing belt cover. Remove engine wiring from front of driver's side upper timing belt cover. Disconnect electrical connector for camshaft position sensor from mounting bracket. Disconnect electrical connector at camshaft position sensor.
- Remove grommet from driver's side upper timing belt cover. Remove bolts/nuts and driver's side upper timing belt cover. Remove bolt, stud bolt and camshaft position sensor.
- To install, reverse removal procedure. Tighten bolts/nuts and stud bolt to specification. See TORQUE SPECIFICATIONS . Fill cooling system.
