Intake Air Control Valve: Installation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

To install No. 2 intake air control valve on end of air intake chamber, reverse removal procedure using NEW gasket. Apply Seal Packing (08826-00080) or equivalent at designated areas and a light coat of engine oil at rubber area on No. 2 intake air control valve before installing. See Fig 3. Tighten No. 2 intake air control valve nuts to specification. See TORQUE SPECIFICATIONS .
To install No. 1 intake air control valve on throttle bodies, reverse removal procedure using NEW gaskets and "O" rings. Tighten throttle body-to-No. 1 intake air control valve bolts to specification. See TORQUE SPECIFICATIONS . Ensure proper procedure is followed when installing throttle bodies. See THROTTLE BODY under FUEL SYSTEMS.

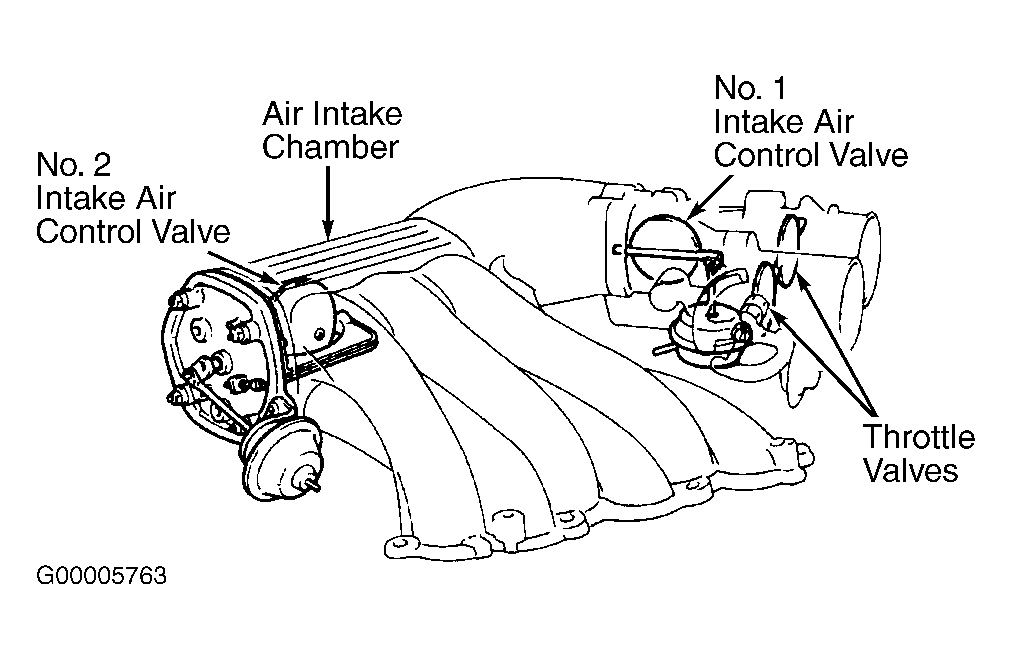

Fig 1: Locating Intake Air Control Valves (Avalon, Highlander & Sienna)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

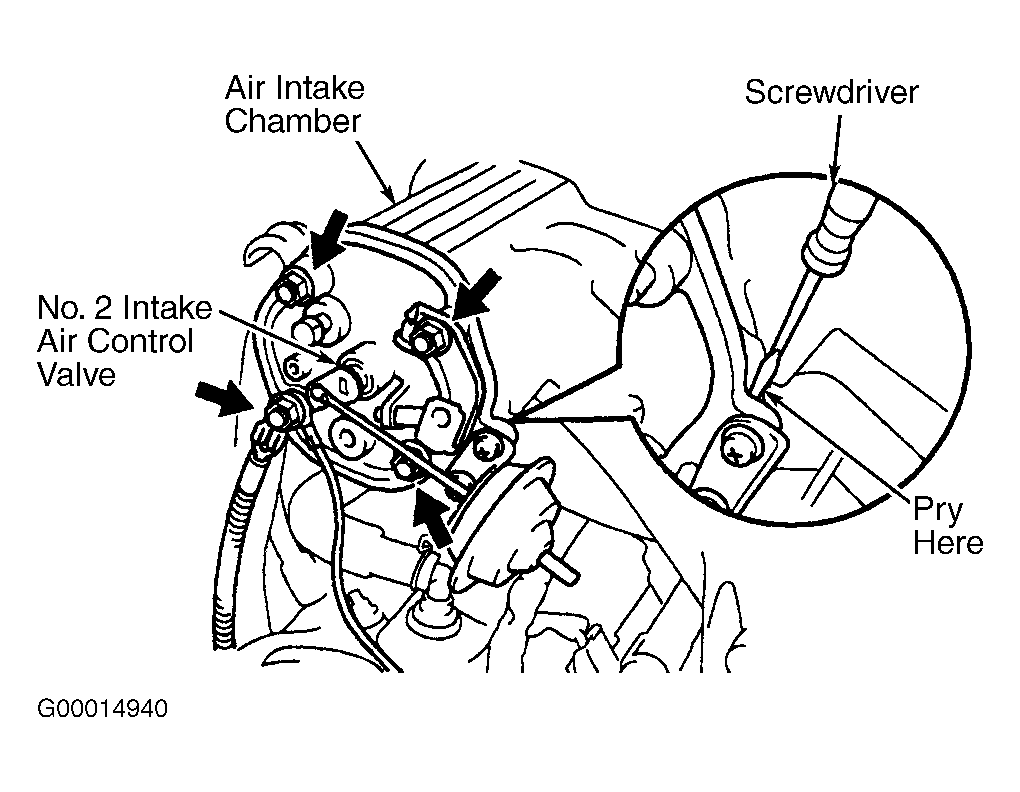

Fig 2: Removing Typical Intake Air Control Valve (Avalon, Camry, Camry Solara, Highlander & Sienna)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Seal Packing Application Areas & Rubber Area On Typical Intake Air Control Valve (Avalon, Camry, Camry Solara, Highlander & Sienna)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

To install, reverse removal procedure using NEW gasket. Apply Seal Packing (08826-00080) or equivalent at designated areas and a light coat of engine oil at rubber area on intake air control valve before installing. See Figure. Tighten intake air control valve nuts to specification. See TORQUE SPECIFICATIONS .

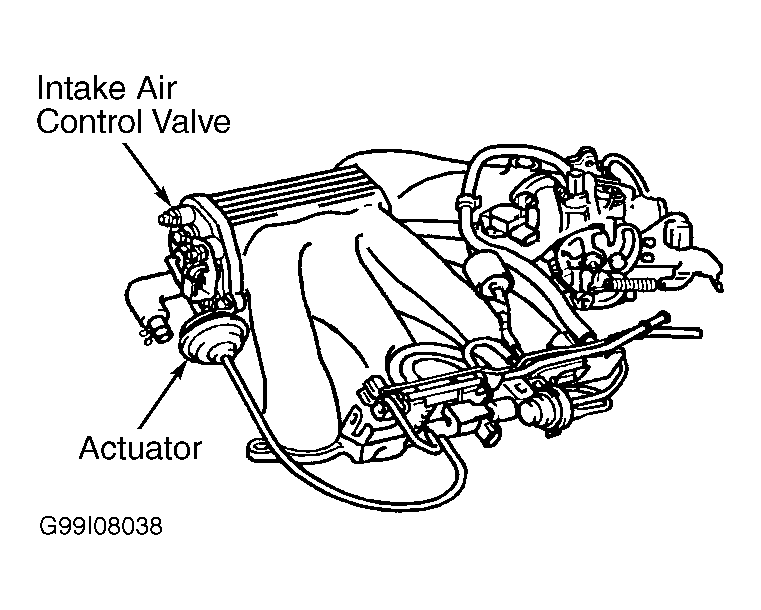

Fig 1: Locating Intake Air Control Valve (Camry)

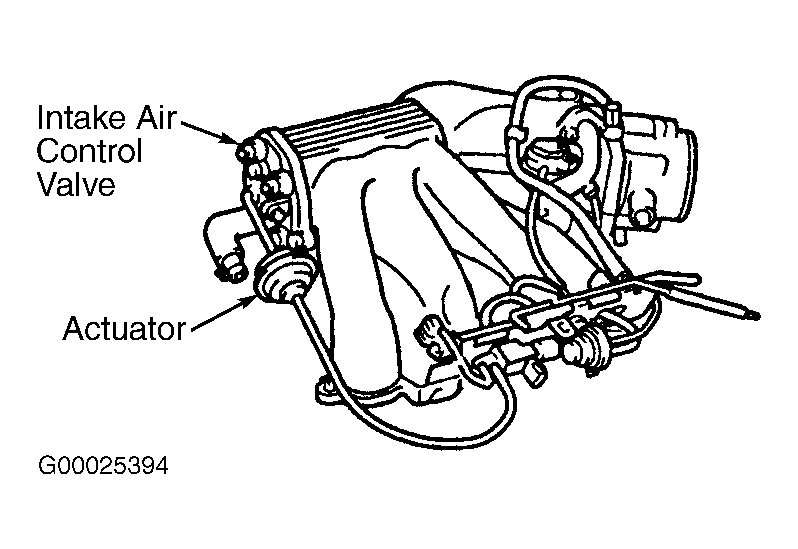

Fig 2: Locating Intake Air Control Valve (Camry Solara)
