Power Steering Vane Pump Replacement

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When using a vise, do not overtighten it.

If necessary, replace oil seal :

CAUTION: Be careful not to damage the bushing of the front housing.

Fig 1: Removing Oil Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver with vinyl tape wound around its tip, remove the oil seal.
Coat a new oil seal lip with power steering fluid.

NOTE: Make sure to install the oil seal facing in the correct direction.

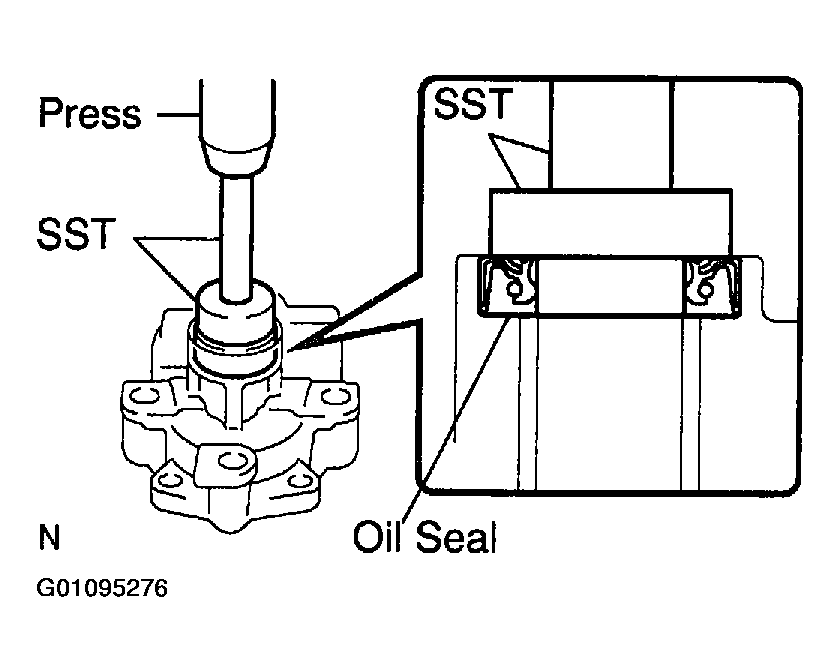

Fig 2: Installing Oil Seal

Using SST, press in the oil seal.
SST 09950-60010 (09951-00330),09950-70010 (09951-07100)
