Power Steering Vane Pump Inspection

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check oil clearance between vane pump shaft and bushing  .

    Using a micrometer and caliper gauge, measure the oil clearance.

    Standard clearance: 0.03 - 0.05 mm (0.0012 - 0.0020 in.)  .

    Maximum clearance: 0.07 mm (0.0028 in.)  .

    If it is more than the maximum, replace the shaft and front housing.

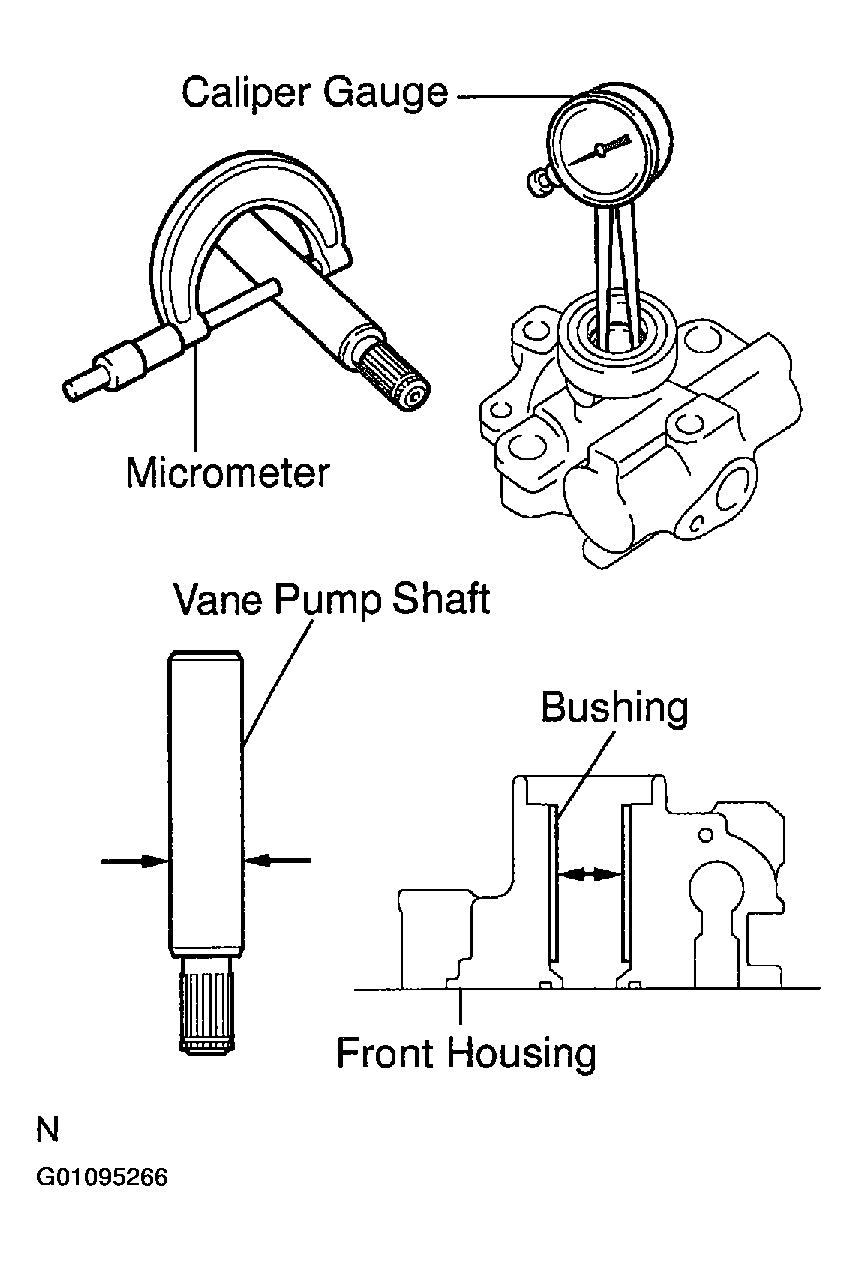

    Fig 1: Identifying Micrometer, Caliper & Vane Pump Shaft & Bushing Measurement Points
    G01095266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Inspect vane pump rotor and vane plates  .
    1. Using a micrometer, measure the height, thickness and length of the 10 plates.
      Fig 2: Measuring Vane Plates
      G01095267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Minimum height: 8.6 mm (0.339 in.)  .

      Minimum thickness: 1.397 mm (0.0550 in.)  .

      Minimum length: 14.991 mm (0.5902 in.)  .

    2. NOTE: There are 5 vane plate lengths corresponding to the following rotor and cam ring marks:

      Inscribed mark: 1,2, 3, 4 or None

      Fig 3: Locating Rotor & Cam Ring marks
      G01095270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 4: Measuring Rotor Groove & Plate Clearance
      G01095268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

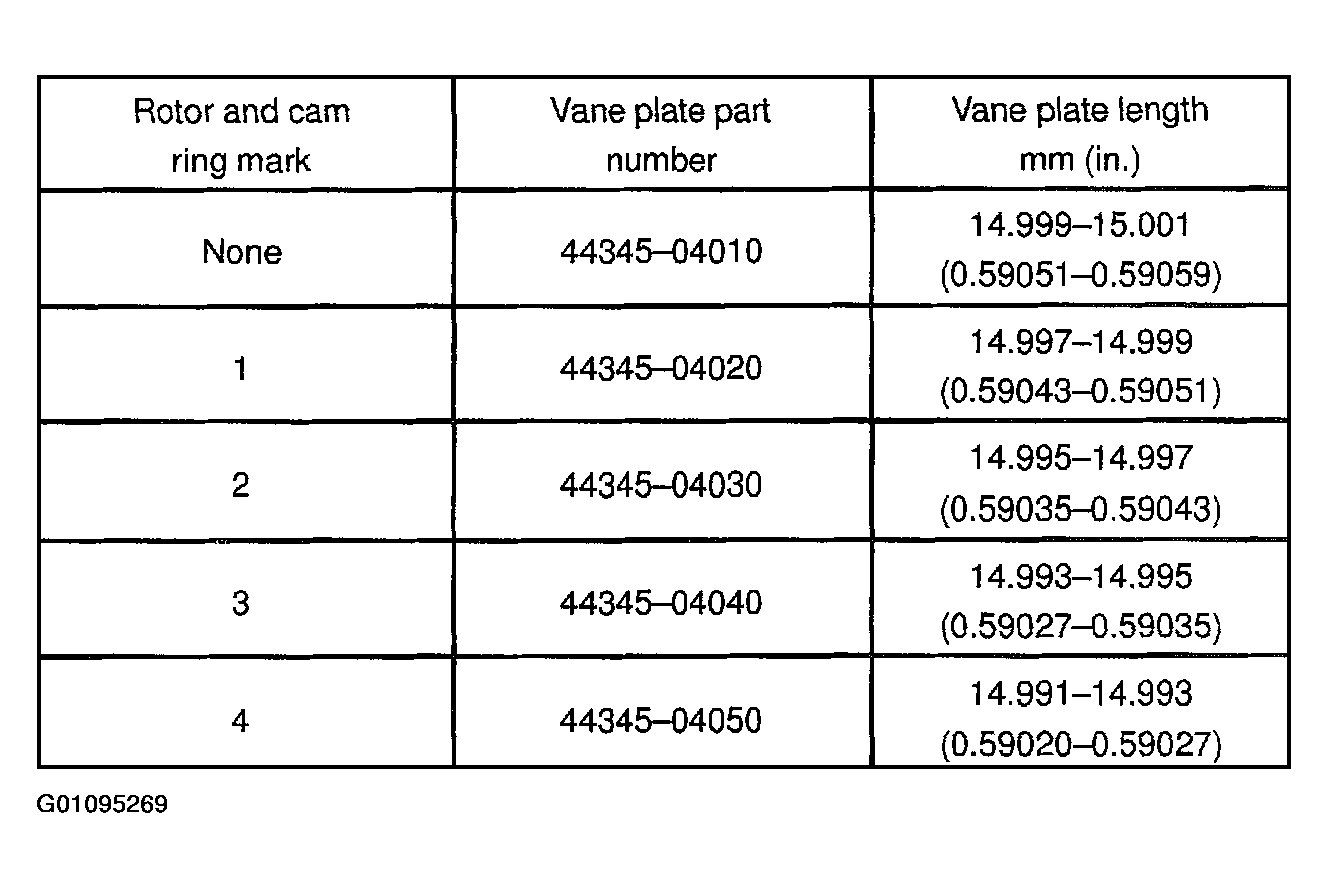

      Fig 5: Rotor & Cam Ring Identification/Specifications Chart
      G01095269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a feeler gauge, measure the clearance between the rotor groove and plate.

      Maximum clearance: 0.033 mm (0.0013 in.)

      If it is more than the maximum, replace the plate and/or rotor with one having the same mark stamped on the cam ring.

  3. Inspect flow control valve  .
    1. Coat the flow control valve with power steering fluid and check that it falls smoothly into the valve hole by its own weight.

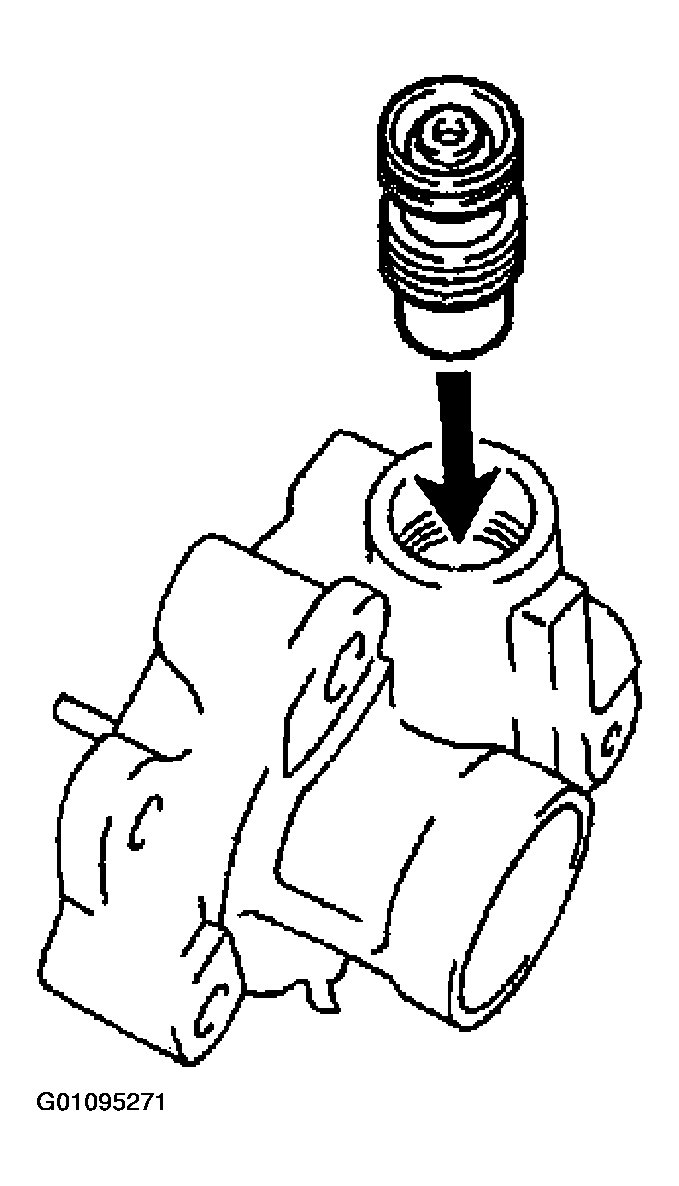

      Fig 6: Inspecting Flow Control Valve
      G01095271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the flow control valve for leakage. Close one of the holes and apply compressed air of 392-490 kPa (4-5 kgf/cm2 , 57-71 psi) into the opposite side hole, and confirm that air does not come out from the end holes.
      Fig 7: Testing Flow Control Valve
      G01095272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If necessary, replace the flow control valve with one having the same letter as inscribed on the front housing.

    Fig 8: Locating Flow Control Valve Marks
    G01095273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Inscribed mark: A, B, C, D, E or F

  4. Inspect spring  .

    Using vernier calipers, measure the free length of the spring.

    Fig 9: Measuring Flow Control Valve Spring Length
    G01095274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Minimum free length: 33.2 mm (1.307 in.)

    If it is not within specification, replace the spring.
