Power Steering Vane Pump Components

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

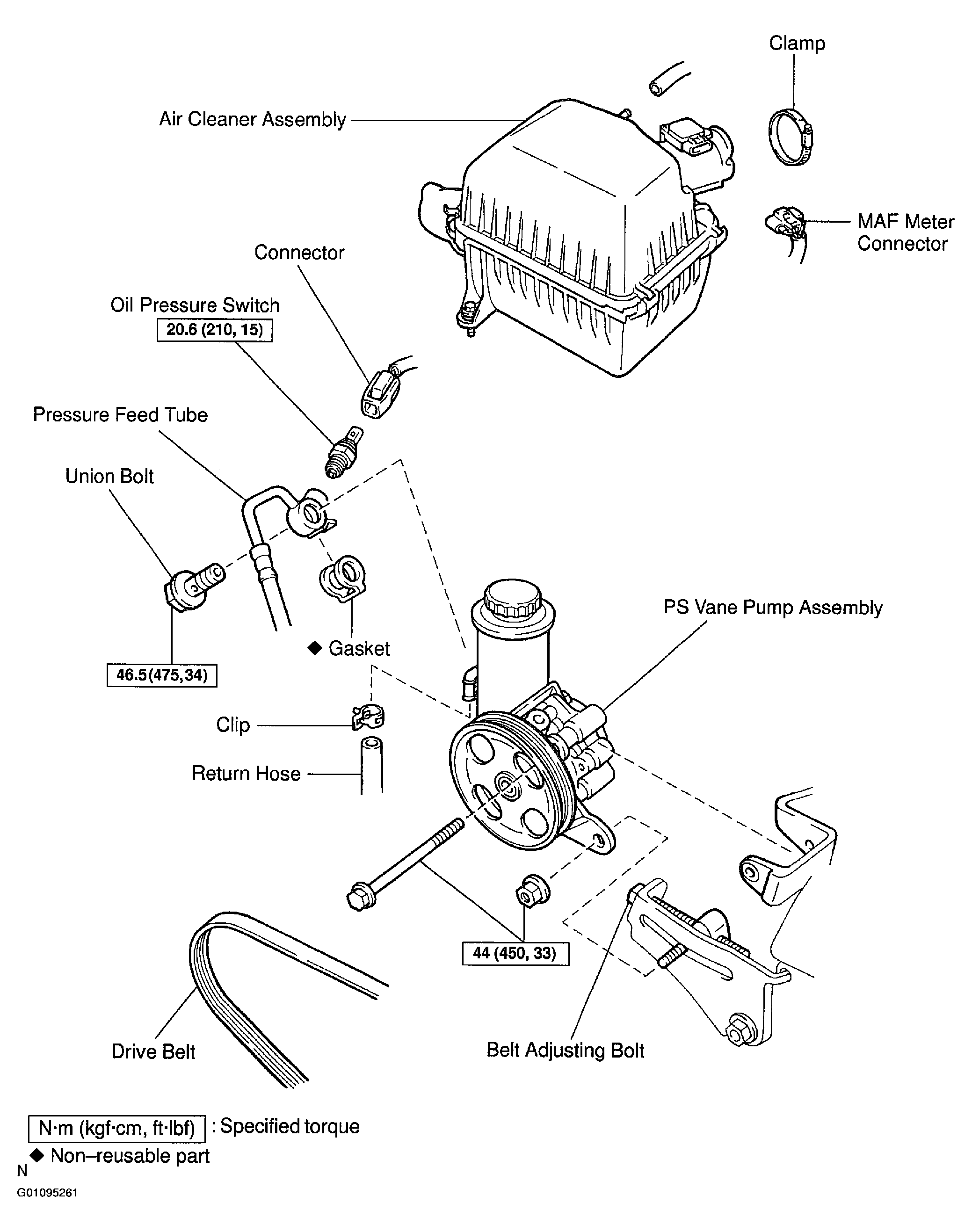

Fig 1: Identifying 3.4L Power Steering Vane Pump Related Components
G01095261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View 3.4L Power Steering Vane Pump
G01095262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
