Power Steering Vane Pump (2UZ-FE): Replacement

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When using a vise, do not overtighten it.

If necessary, replace oil seal .

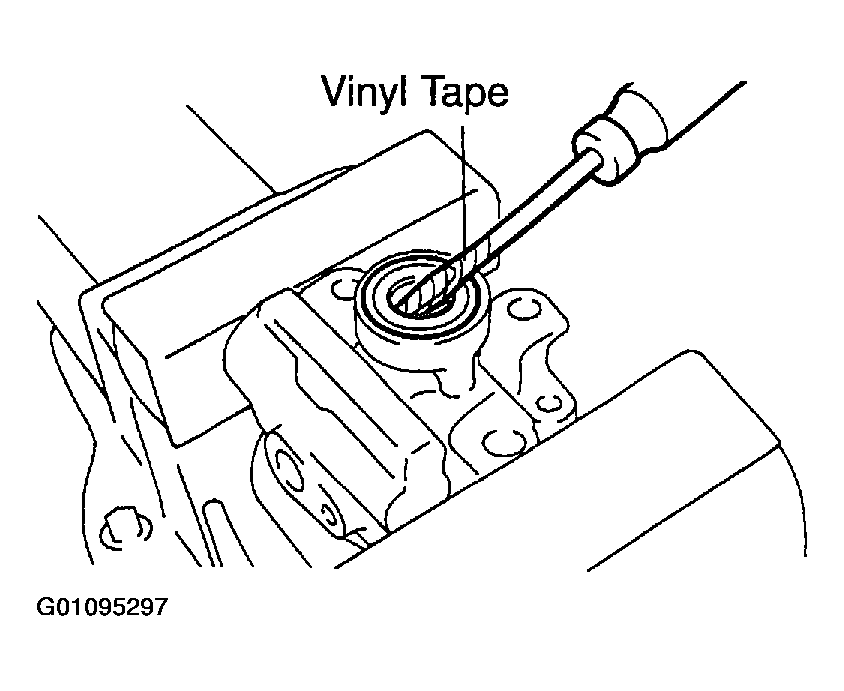

Using a screwdriver with vinyl tape wound around its tip, remove the oil seal.
CAUTION: Be careful not to damage the front housing.

Fig 1: Removing Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Coat a new oil seal lip with power steering fluid.
Using SST, press in the oil seal.

Fig 2: Installing Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09950-60010 (09951-00330),09950-70010 (09951-07100)

NOTE: Make sure to install the oil seal facing in the correct direction.
