Power Steering Vane Pump (2UZ-FE): Installation

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Install PS vane pump assembly .
1. Install the PS vane pump assembly with the stud bolt.
  Torque: 22 N.m (220 kgf.cm, 16 ft.lbf)
2. Install the 2 bolt and nut.
  Torque: 44 N.m (450 kgf.cm, 33 ft.lbf)
Install pressure feed tube .
1. Connect the pressure feed tube.
2. Install a new gasket and the union bolt to the pressure feed tube.
  NOTE: Make sure the stopper of the pressure feed tube touches the PS vane pump body as shown in Fig 1, then torque the union bolt.

  Torque: 46.5 N.m (475 kgf.cm, 34 ft.lbf)

  Fig 1: Locating Pressure Feed Tube Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Connect return hose .
Connect the return hose with the clip.
Connect 2 vacuum hoses .
Connect the 2 vacuum hoses and install the 2 clips.
Install drive belt .
Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and install the belt.

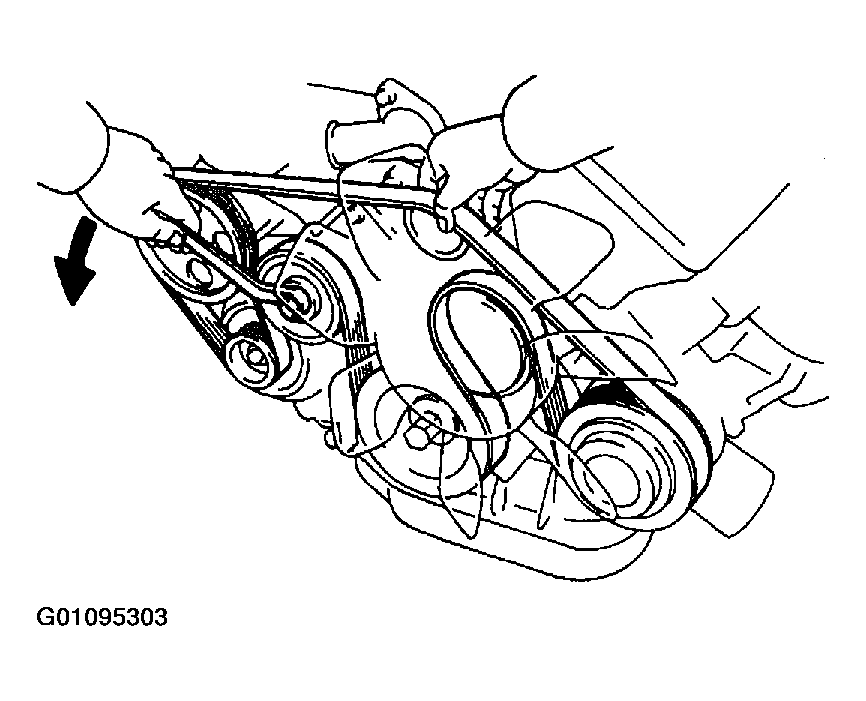

Fig 2: Removing & Installing Serpentine Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install air cleaner assembly with air cleaner hose .
1. Install the air cleaner assembly with air cleaner hose and the 3 bolts.
2. Install the clamp.
3. Connect the hoses.
4. Connect the MAF meter connector.
Bleed the power steering system . See BLEEDING POWER STEERING FLUID .
