Power Steering Vane Pump (2UZ-FE): Components

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

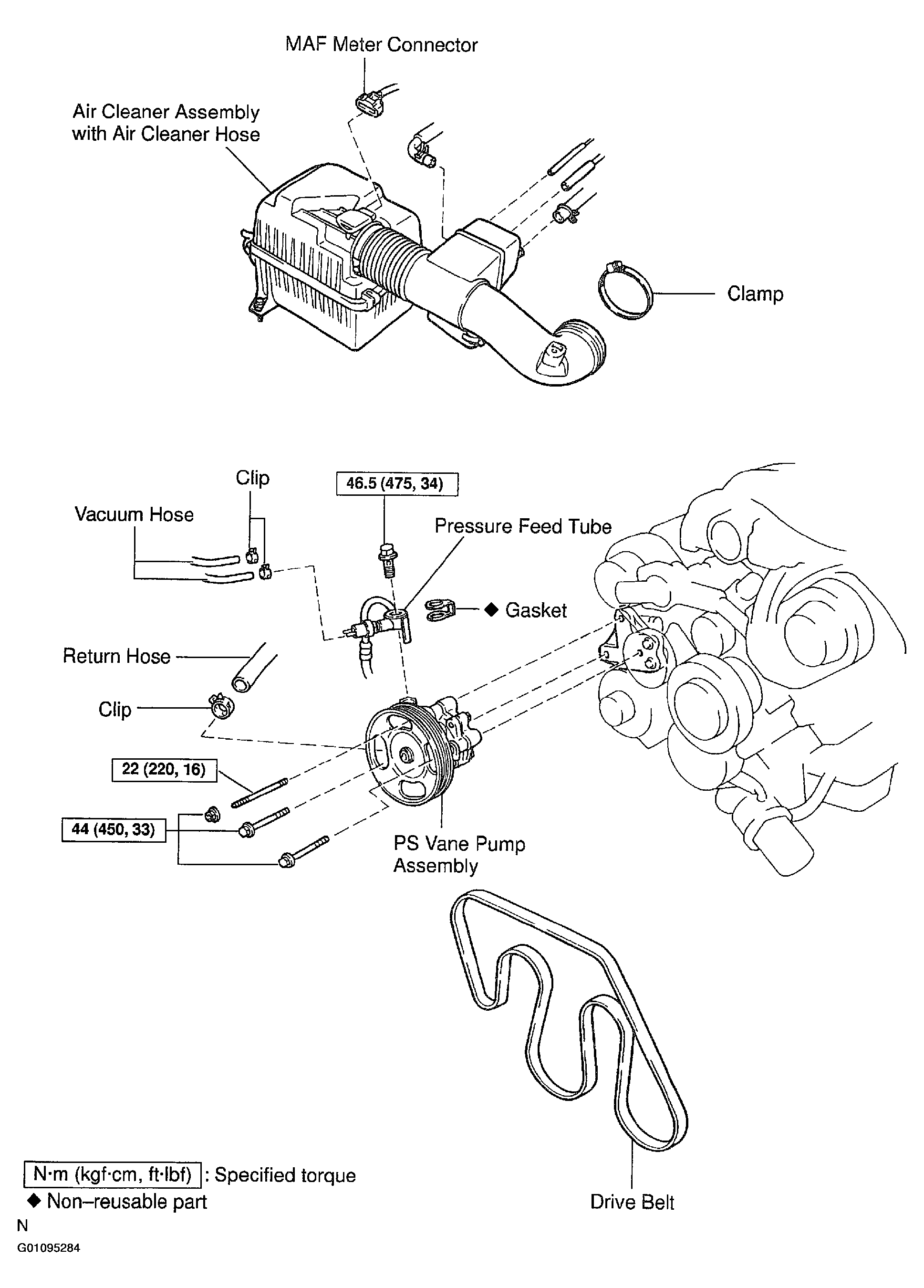

Fig 1: Identifying Components For Power Steering Vane Pump Removal
G01095284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

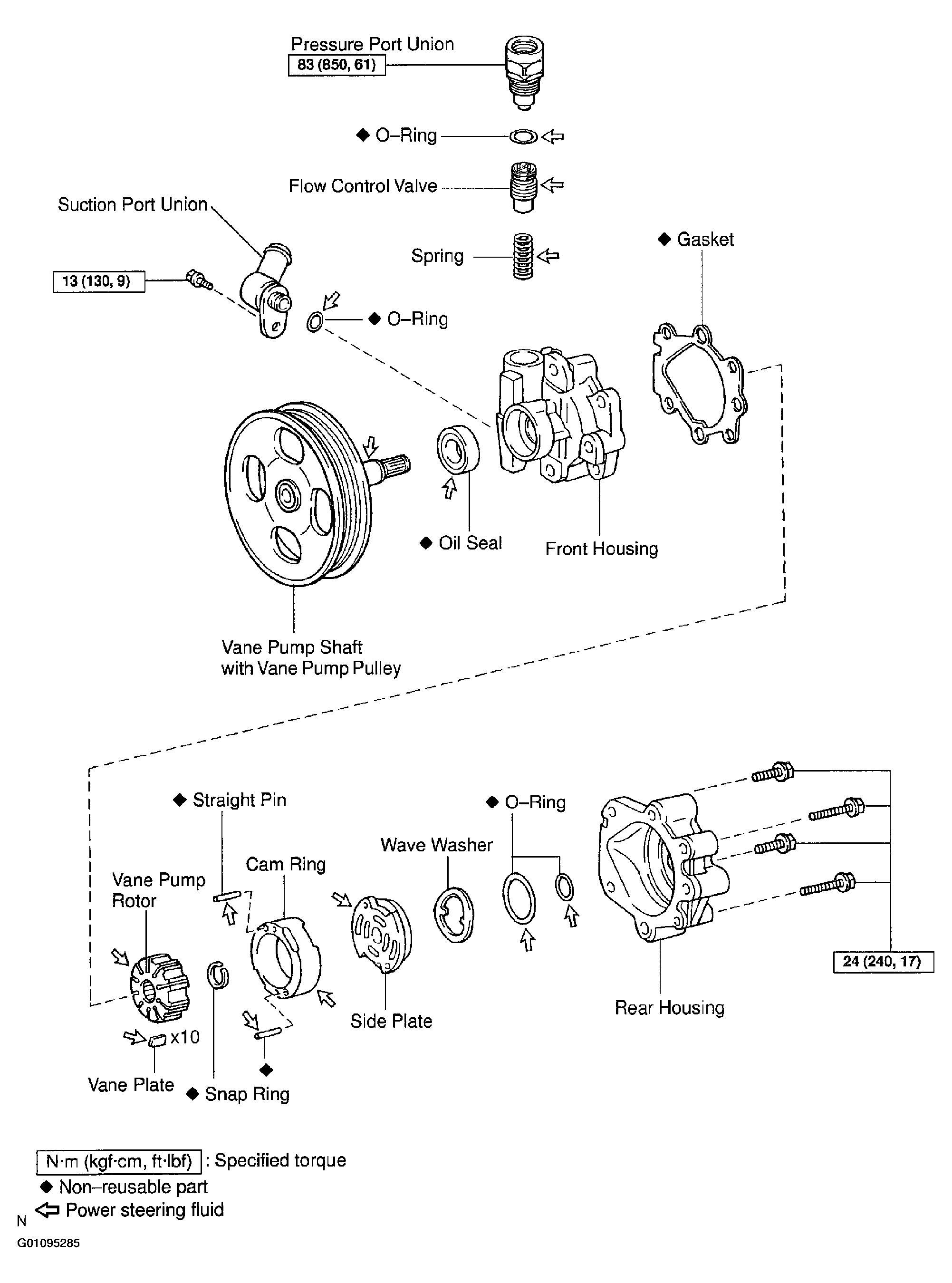

Fig 2: Identifying Internal Power Steering Vane Pump Components
G01095285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
