Power Steering Gear: Removal

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place front wheels facing straight ahead  .
  2. Remove steering wheel pad  . See step  1 under REMOVAL - STEERING COLUMN.
  3. Remove steering wheel  . See step  2 under REMOVAL - STEERING COLUMN.
  4. Disconnect RH and LH tie rod ends  . See REMOVAL & INSTALLATION .
  5. Disconnect No. 2 intermediate shaft assembly  . See step  9 under REMOVAL - STEERING COLUMN.
  6. Disconnect clamp plate  .

    Remove the bolt and disconnect the clamp plate.

  7. Disconnect pressure feed and return tubes  .

    Using SST, disconnect pressure feed and return tubes.

    SST 09023-12700

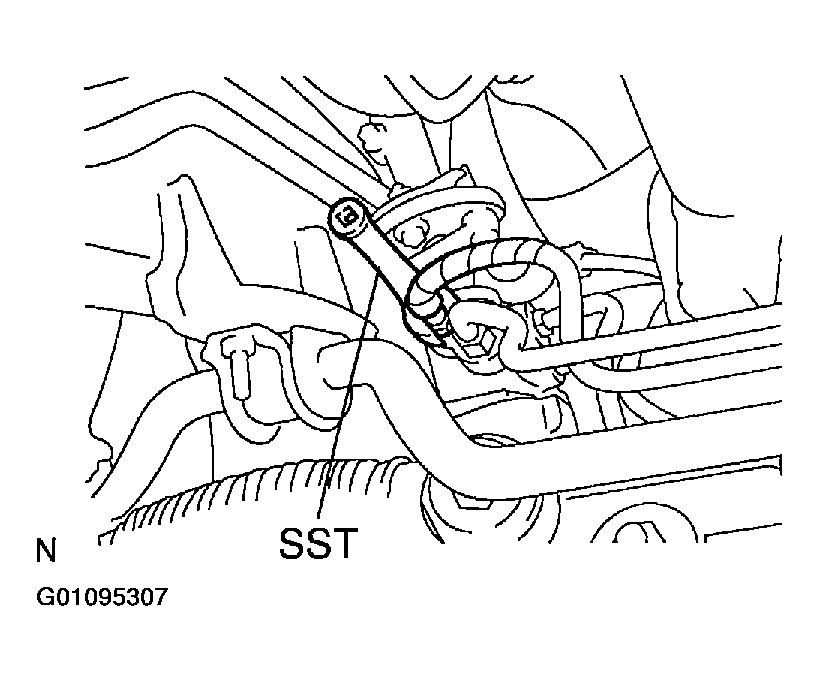

    Fig 1: Using SST To Disconnect Fluid Lines
    G01095307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Remove PS gear assembly  .
    1. Remove the bolt, nut and stud bolt from the bracket.
    2. Remove the 2 set bolts, nut, washer and PS gear assembly.
  9. Remove bracket and grommet  .
