Registration Procedure
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- If pressing the switch of the original transmitter to register the code, the system might operate.
- When registering the transmitter codes such as for garage or gate, check that there is nobody around those places then register.
- If the battery of original transmitter is consumed.
- Press the switch of the transmitter repeatedly in registration mode, as some transmitters stop transmitting for 1 to 2 seconds.
- This system is not applicable to the garage door opener which had been made before 1982.

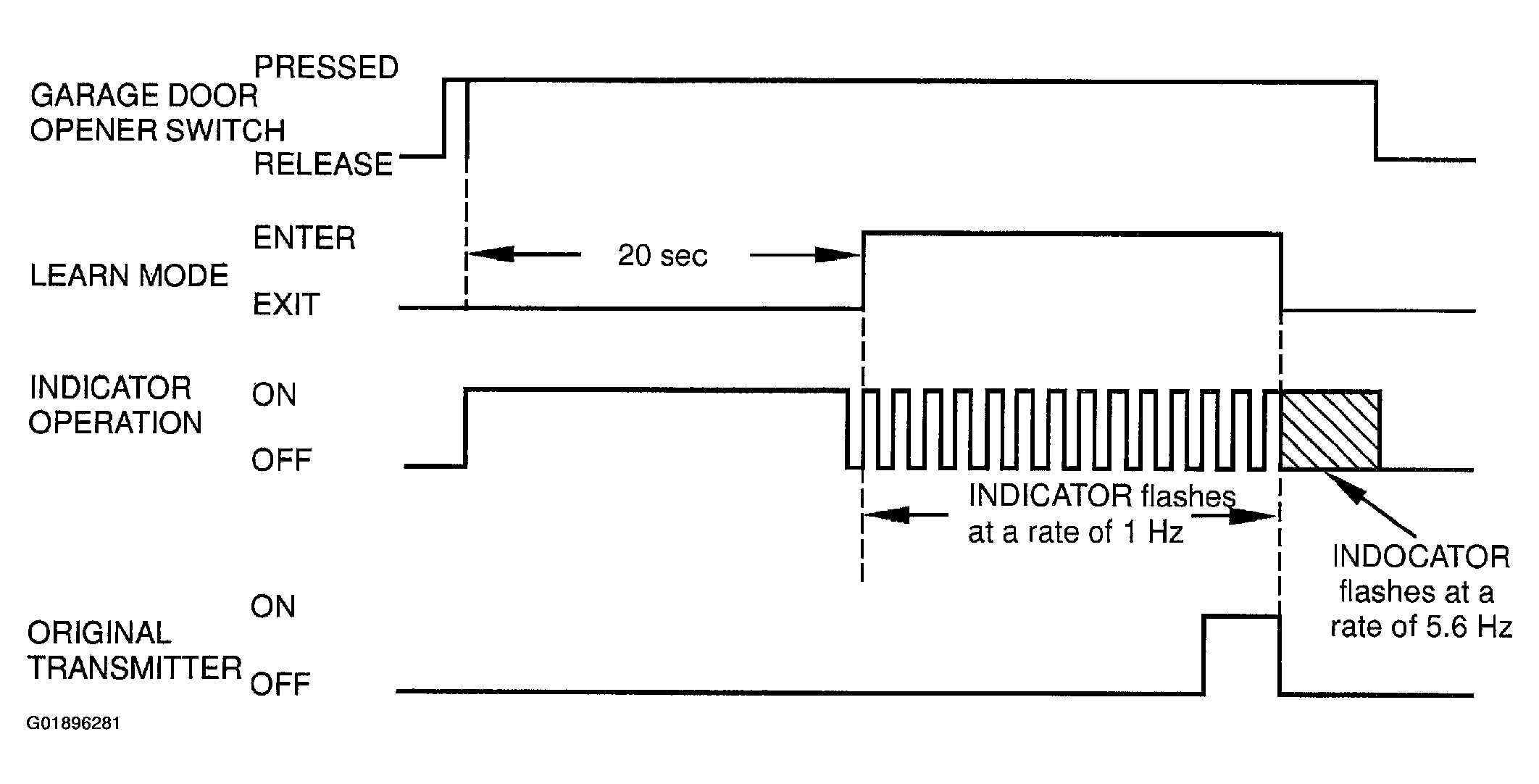

- New code registration
:
- Press the switch for the item to be registered for 20 seconds
- In the condition of ( a), bring the original transmitter to within 1-inch area around the garage door opener and press the switch. (code transmitting).
NOTE: When transferring to registration mode, garage door indicator (green) blinks in 1 Hz cycle.NOTE: When code registration completes correctly, garage door indicator (green) blinks in 5.6 Hz cycle. - Code deletion
:

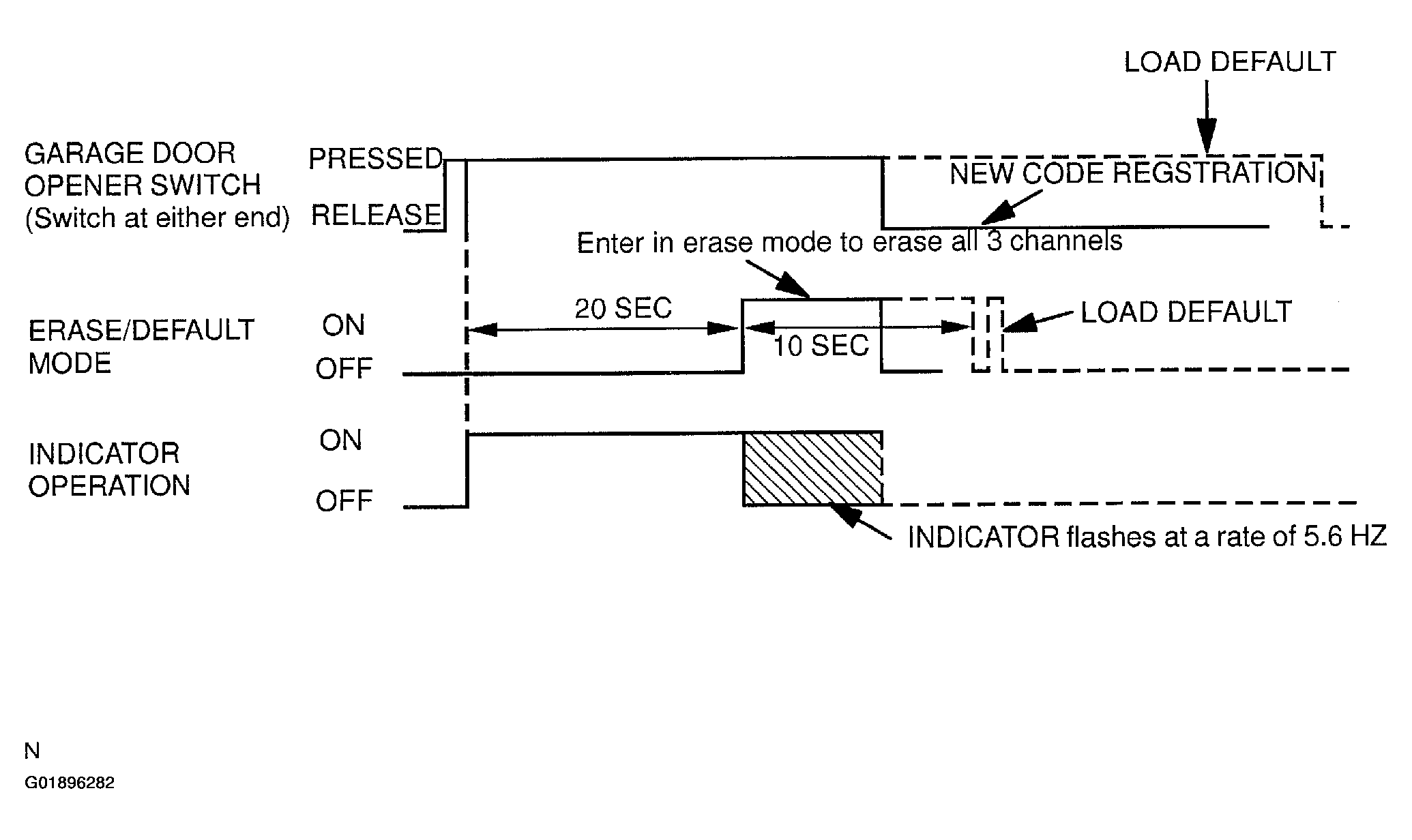

- Press the switches at both ends of garage door opener simultaneously for 20 seconds.
- When releasing the switch within 10 seconds after transferring to deletion mode, all the registered codes will be erased.
NOTE: When transferring to deletion mode, LED (red) blinks in 6 Hz cycle.NOTE: Press the switch until blinking in 6 Hz cycle stops, so that the default code for check is set.
WARNING:
NOTE:
If a code can not be registered, observe the following conditions.
