Torque Specifications: Echo
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS (ECHO)
| Application |
Ft. Lbs. (N.m) |
| ECT Sensor |
|
| Fuel Rail-To-Cylinder Head Bolt |
14 (19) |
| Heated Oxygen Sensor |
32 (43) |
| Intake Manifold Bolt/Nut |
22 (30) |
| Knock Sensor |
29 (39) |
| Power Steering Pressure Sensor |
15 (20) |
| Throttle Body Bolt/Nut |
22 (30) |
| INCH Lbs. (N.m) |
| Camshaft Position Sensor Bolt |
71 (8.0) |
| Control Lever Nut |
115 (13.0) |
| Crankshaft Position Sensor Bolt |
66 (7.5) |
| Fuel Pipe Clamp-To-Cylinder Head Bolt |
80 (9.0) |
| Fuel Pump Retaining Plate-To-Fuel Tank Bolt |
35 (4.0) |
| Ignition Coil Bolt |
80 (9.0) |
| PNP Switch Retaining Bolt |
48 (5.4) |
| PNP Switch Retaining Nut |
61 (6.9) |

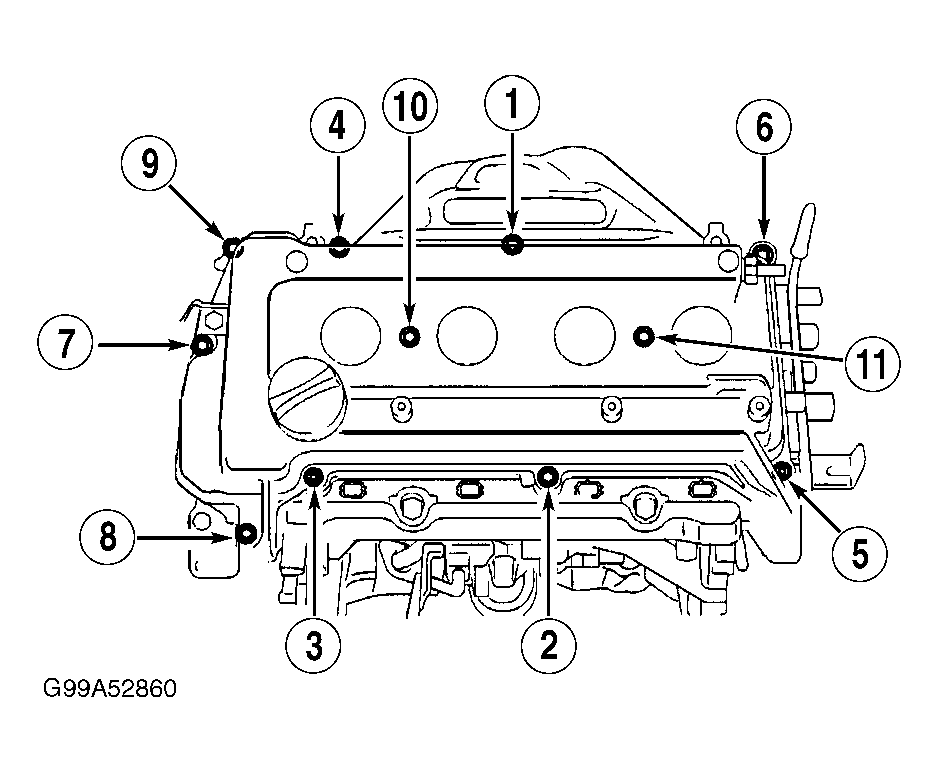

| Valve Cover Bolt/Nut |
89 (10.1) |
| Vehicle Speed Sensor Retaining Bolt |
| A/T |
62 (7.0) |
| M/T |
97 (11.0) |
| VVT Camshaft Timing Oil Control Valve Retaining Bolt |
75 (8.5) |
