Removal & Installation (ECHO)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

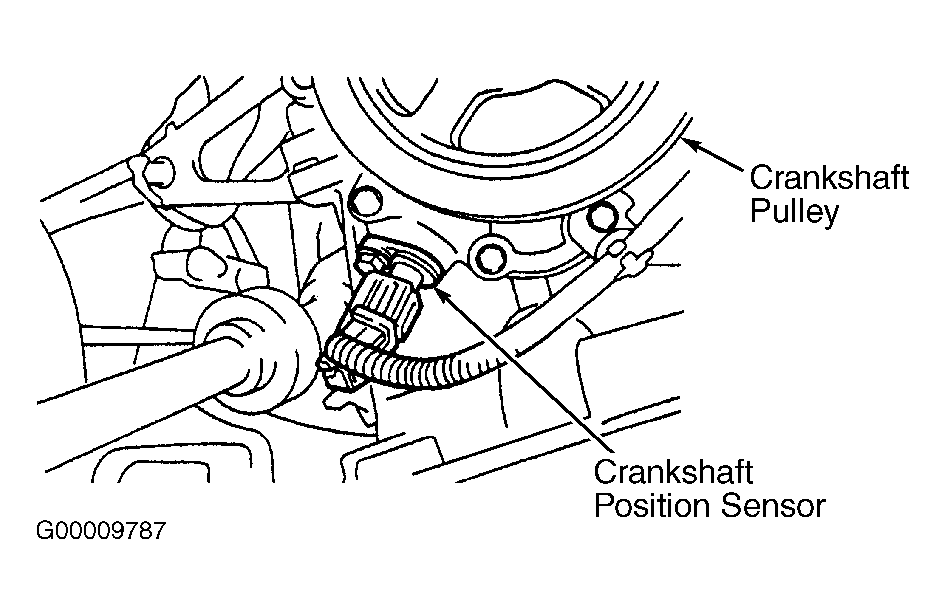

- Crankshaft position sensor is located on front of engine, near crankshaft pulley. See Fig 1. Raise and support vehicle. Remove passenger's side lower engine cover for access to crankshaft position sensor. Disconnect electrical connector for crankshaft position sensor. Remove bolt and crankshaft position sensor.
- To install, reverse removal procedure. Tighten crankshaft position sensor bolt to specification. See TORQUE SPECIFICATIONS . Reinstall passenger's side lower engine cover.
