Removal & Installation (Tacoma)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

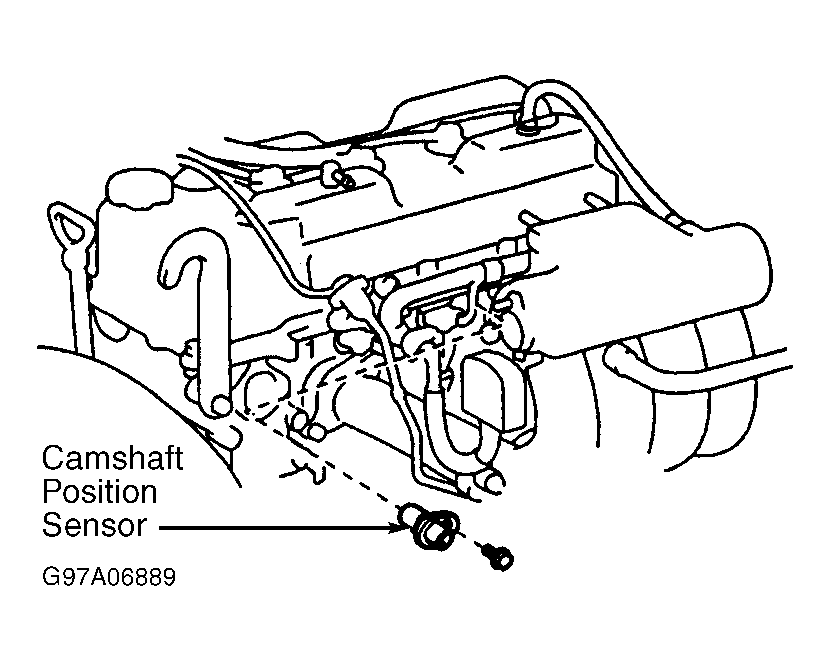

- Camshaft position sensor is located on cylinder head, just in front of intake manifold. See Fig 1.
- Remove throttle body. See THROTTLE BODY under FUEL SYSTEMS. Disconnect electrical connector at camshaft position sensor. Remove bolt and camshaft position sensor from cylinder head.
- To install, reverse removal procedure. Tighten camshaft position sensor bolt to specification. See TORQUE SPECIFICATIONS .
