Removal (ECHO)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE .

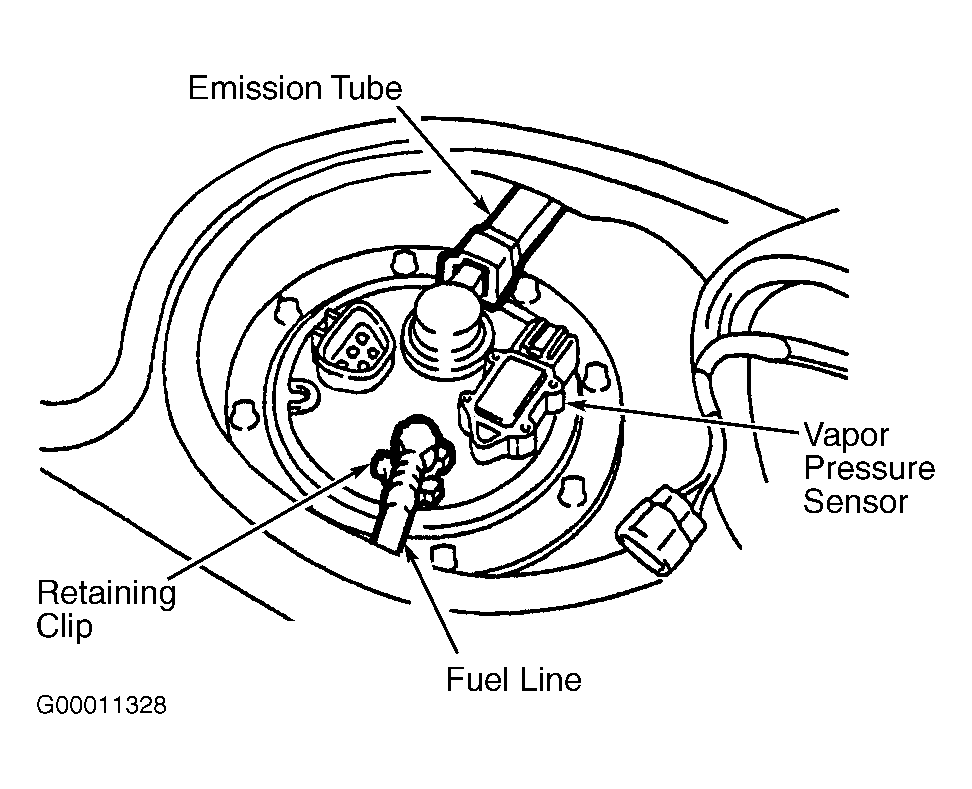

- Remove rear seat cushion and cover plate on floor panel for access to fuel pump if not previously done. Disconnect electrical connector from top of fuel pump. This is electrical connector for fuel pump and fuel gauge sending unit. Electric fuel pump is located in the fuel tank. Disconnect electrical connector at vapor pressure sensor. See Fig 1.
- Ensure area around emission tube and fuel line at fuel pump is clean. Remove retaining clip from fuel line at fuel pump. See Fig 1. Disconnect fuel line from fuel pump. Disconnect emission tube.
- Remove fuel pump retaining plate-to-fuel tank bolts. Remove fuel pump retaining plate, fuel pump and gasket from fuel tank. Use care not to damage fuel filter on bottom of fuel pump and fuel gauge sending unit when removing fuel pump.
