Fuel Pressure Regulator: Installation
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

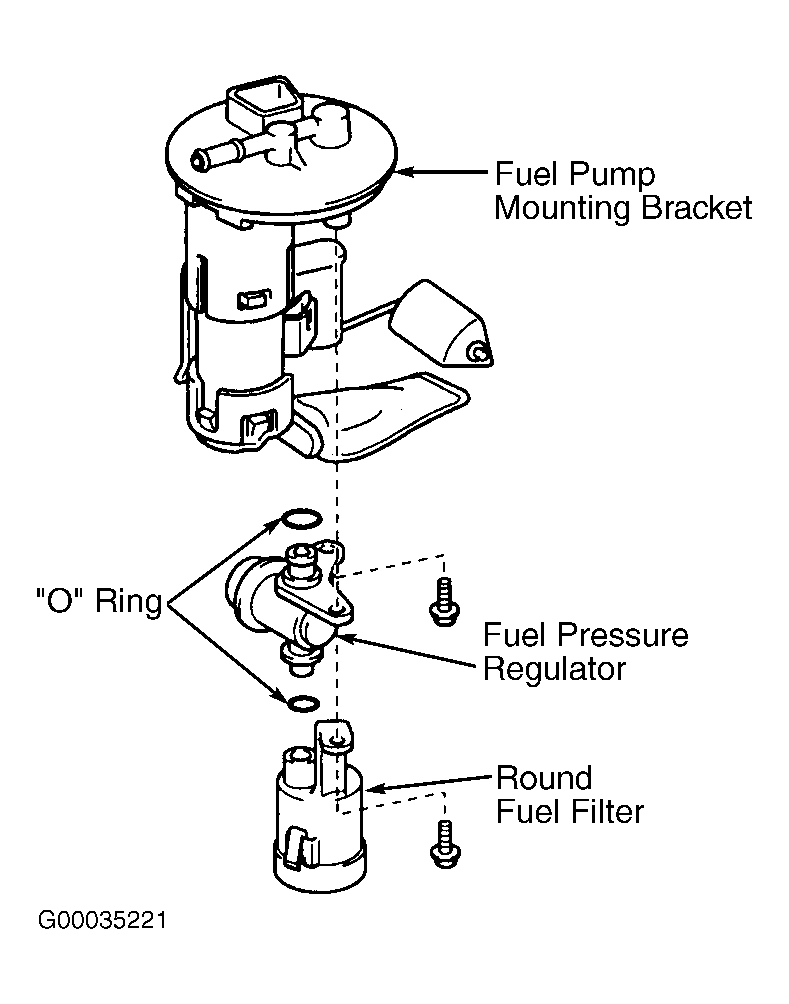

To install, reverse removal procedure using NEW "O" rings. Coat "O" ring with gasoline before installing fuel pressure regulator and round fuel filter. Tighten fuel pressure regulator retaining screw and round fuel filter retaining screw to specification. See TORQUE SPECIFICATIONS . Reinstall fuel pump.
- To install, reverse removal procedure using NEW "O" ring. Coat "O" ring with gasoline before installing fuel pressure regulator in fuel rail.
- Tighten fuel pressure regulator bolts to specification. See TORQUE SPECIFICATIONS . Operate fuel pump and check for fuel leaks. See FUEL PUMP OPERATION under FUEL SYSTEMS in BASIC DIAGNOSTIC PROCEDURES - 4-CYLINDER article.
