Park/Neutral Position Switch: Installation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using NEW lock plate, install PNP switch on transaxle. Install and tighten PNP switch retaining nut and PNP switch retaining bolts to specification. See TORQUE SPECIFICATIONS . Bend over tab on lock plate against PNP switching retaining nut.
  2. Reinstall control lever, washer and nut on PNP switch. Tighten nut for control lever to specification. See TORQUE SPECIFICATIONS . Reconnect shift cable on control lever. Check that engine starts only with shift lever in Park and Neutral. If PNP switch adjustment is required, go to next step.
  3. Ensure parking brake is applied. Place shift lever in Neutral. It may be necessary to remove control lever for access to PNP switch retaining bolts. Loosen PNP switch retaining bolts.
  4. Rotate PNP switch so neutral base line aligns with the groove. See Fig 2-Fig 6 . Tighten PNP switch retaining bolts to specification. See TORQUE SPECIFICATIONS .
  5. Ensure continuity exists between specified terminals on PNP switch in relation to shift lever position. See PARK/NEUTRAL POSITION SWITCH under ENGINE SENSORS & SWITCHES in SYSTEM & COMPONENT TESTING - 4-CYLINDER article. Reinstall electrical connector.

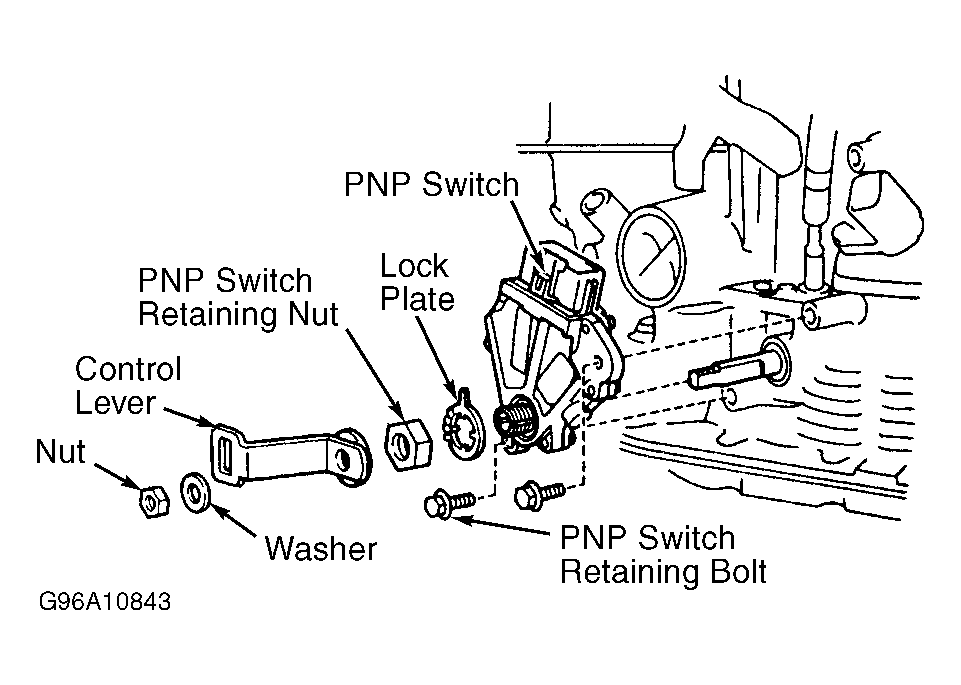

    Fig 1: Locating Typical Park/Neutral Position Switch & Components
    G96A10843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

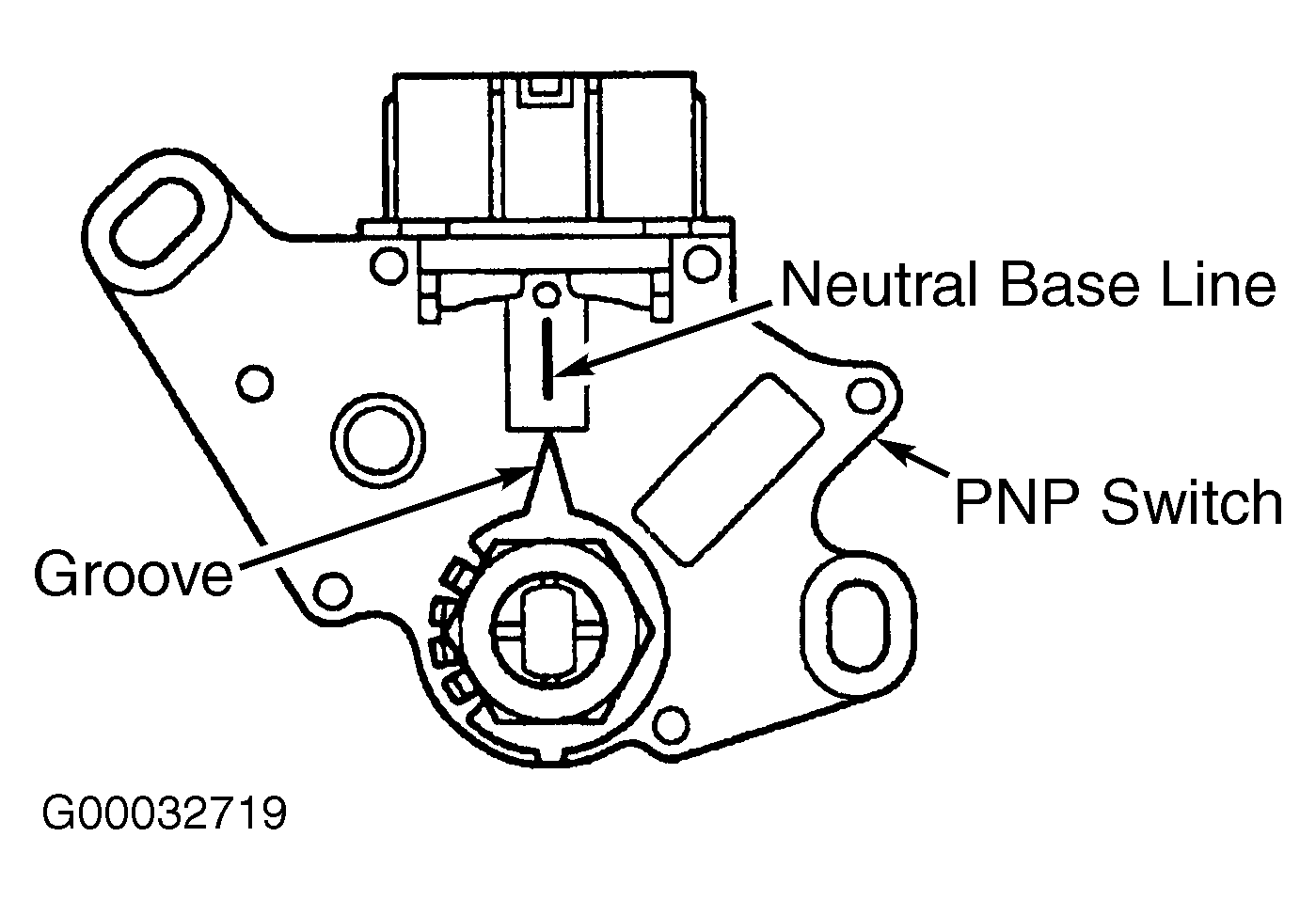

    Fig 2: Adjusting Park/Neutral Position Switch (Camry, Camry Solara, Highlander & RAV4)
    G00032719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 3: Adjusting Park/Neutral Position Switch (Celica 1.8L 1ZZ-FE & ECHO)
    G00009736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

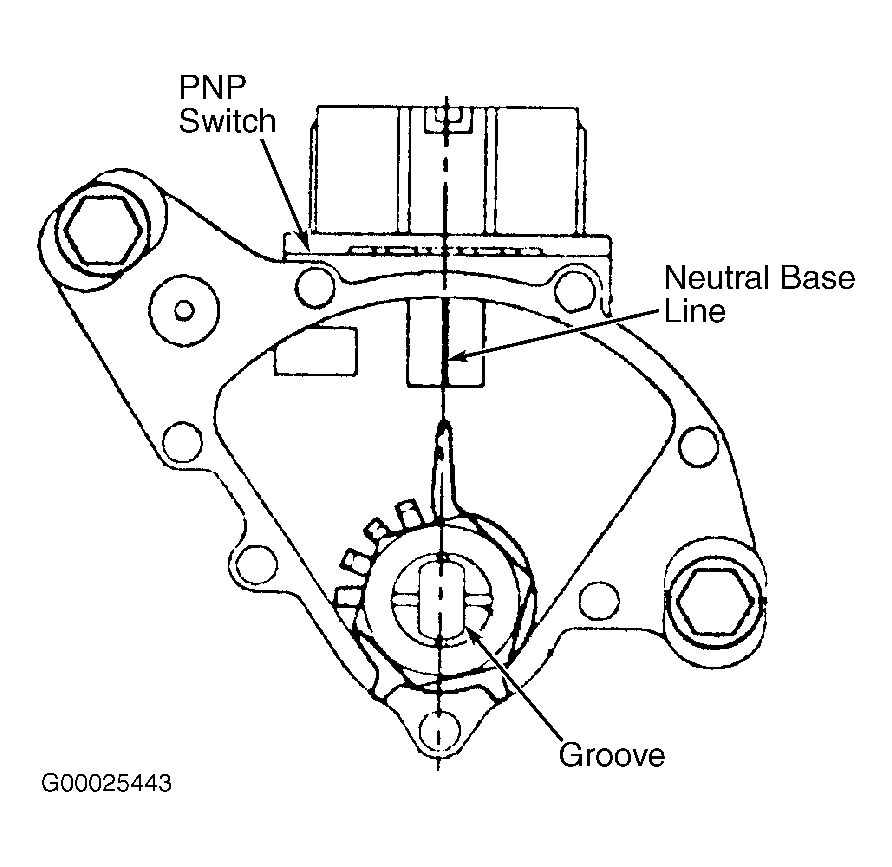

    Fig 4: Adjusting Park/Neutral Position Switch (Celica 1.8L 2ZZ-GE)
    G00025443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 5: Adjusting Park/Neutral Position Switch (Corolla With 3-Speed A/T)
    G99G08725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 6: Adjusting Park/Neutral Position Switch (Corolla With 4-Speed A/T)
    G99A08727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


  1. Using NEW lock plate, install PNP switch on transmission. Install and tighten PNP switch retaining nut and PNP switch retaining bolt to specification. See TORQUE SPECIFICATIONS . Bend over tab on lock plate against PNP switching retaining nut.
  2. Using NEW "O" ring, install transmission oil cooler line elbow (if removed) and tighten to specification. See TORQUE SPECIFICATIONS . Install transmission oil cooler line (if removed) and tighten nut to specification. See TORQUE SPECIFICATIONS .
  3. Check that engine starts only with shift lever in Park and Neutral. If PNP switch adjustment is required, go to next step.
  4. Ensure parking brake is applied. Place shift lever in Neutral. Loosen PNP switch retaining bolt. Rotate PNP switch so neutral base line aligns with the groove. See Fig 1 and Fig 2 . Tighten PNP switch retaining bolt to specification. See TORQUE SPECIFICATIONS .
  5. Ensure continuity exists between specified terminals on PNP switch in relation to shift lever position. See PARK/NEUTRAL POSITION SWITCH under ENGINE SENSORS & SWITCHES in SYSTEM & COMPONENT TESTING - 4-CYLINDER article. Reinstall electrical connector.
    Fig 1: Adjusting Park/Neutral Position Switch (Tacoma 2.4L 2RZ-FE)
    G99C08728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 2: Adjusting Park/Neutral Position Switch (Tacoma 2.7L 3RZ-FE)
    G99E08729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
