Knock Sensor: Installation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

Install and tighten knock sensor to specification. See TORQUE SPECIFICATIONS . To install intake manifold, reverse removal procedure using NEW gasket. Tighten intake manifold bolts/nuts to specification. See TORQUE SPECIFICATIONS . Reinstall engine.

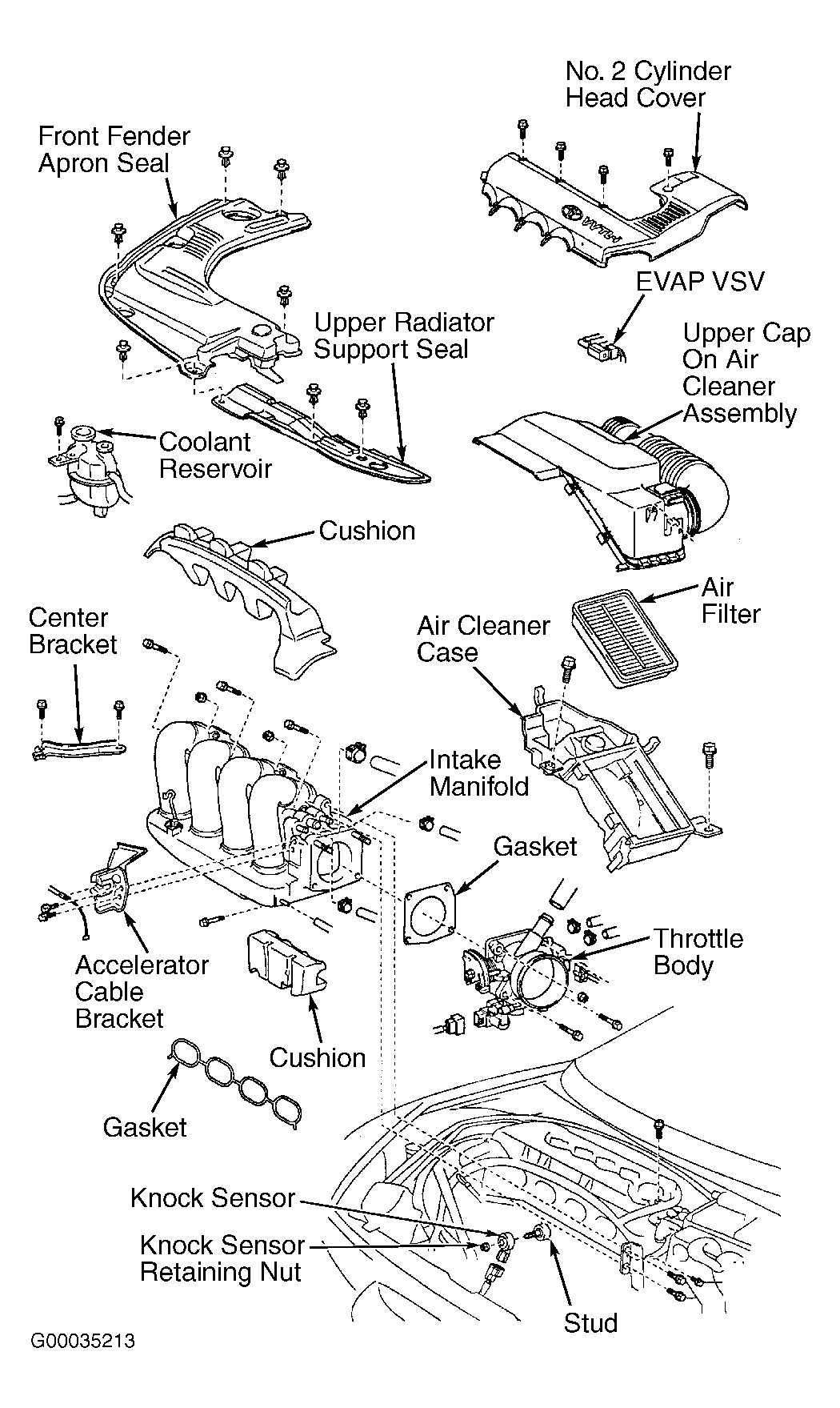

Fig 1: Locating Knock Sensor & Identifying Intake Manifold & Components (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

On 1.8L 1ZZ-FE models, install and tighten knock sensor to specification. See TORQUE SPECIFICATIONS . On 1.8L 2ZZ-GE models, install knock sensor on stud on cylinder block. Ensure electrical connector fitting on knock sensor is positioned in original location in relation to the cylinder block. Install and tighten knock sensor retaining nut to specification. See TORQUE SPECIFICATIONS . On all models, reinstall electrical connector on knock sensor. To install remaining components, reverse removal procedure using NEW gaskets.
On 1.8L 2ZZ-GE models, note intake manifold bolt/nut identification before tightening intake manifold bolts/nuts to specification. See Fig 3. On all models, ensure gasket for throttle body is installed with protrusion area facing proper direction. See THROTTLE BODY under FUEL SYSTEMS. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS . Fill and bleed cooling system. See COOLING SYSTEM BLEEDING under COOLING SYSTEM.

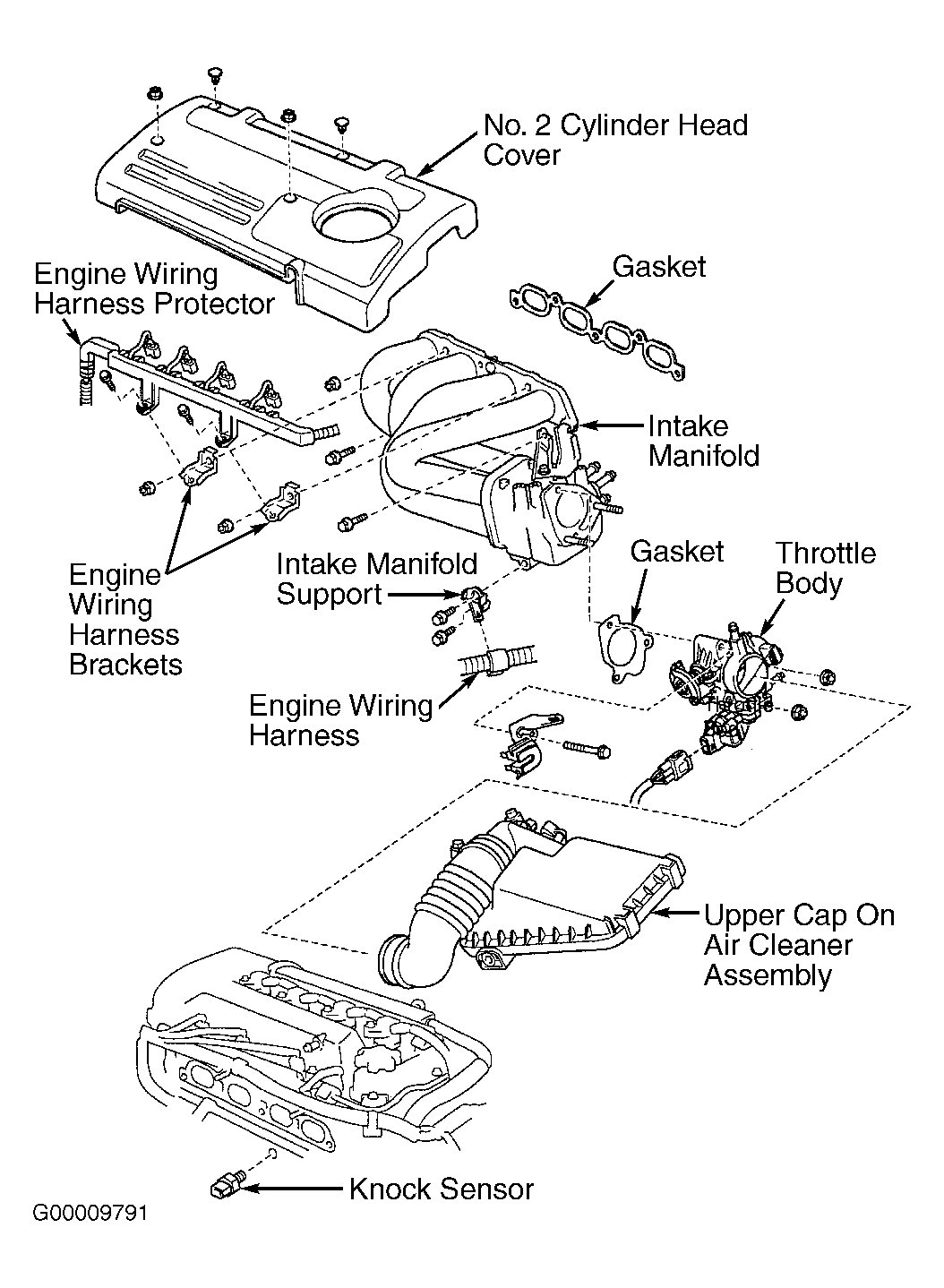

Fig 1: Locating Knock Sensor & Identifying Intake Manifold & Components (Celica 1.8L 1ZZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

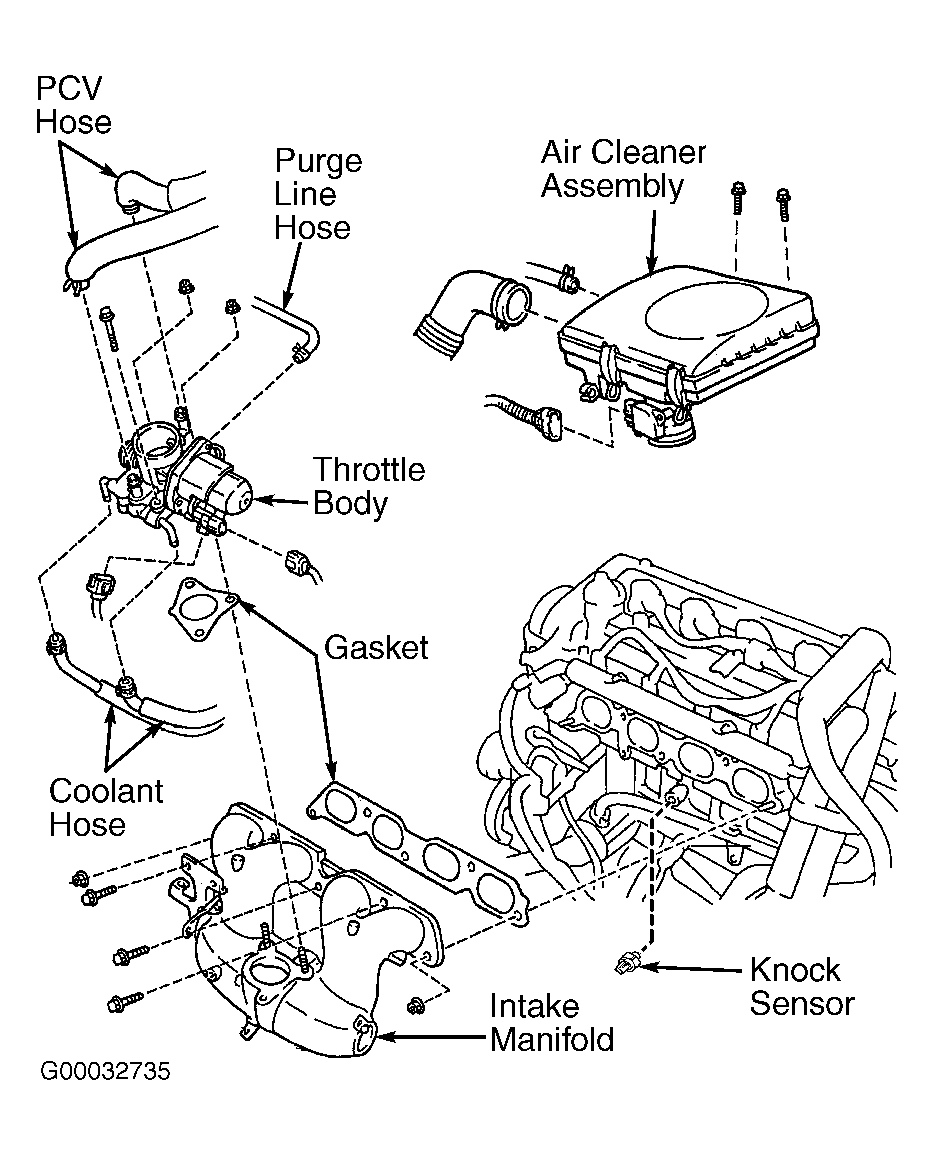

Fig 2: Locating Knock Sensor & Identifying Intake Manifold & Components (Celica 1.8L 2ZZ-GE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Intake Manifold Bolts/Nuts (Celica 1.8L 2ZZ-GE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install and tighten knock sensor to specification. See TORQUE SPECIFICATIONS . To install remaining components, reverse removal procedure using NEW gaskets. Ensure gasket for throttle body is installed with protrusion area facing proper direction. See THROTTLE BODY under FUEL SYSTEMS. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS . Fill cooling system.

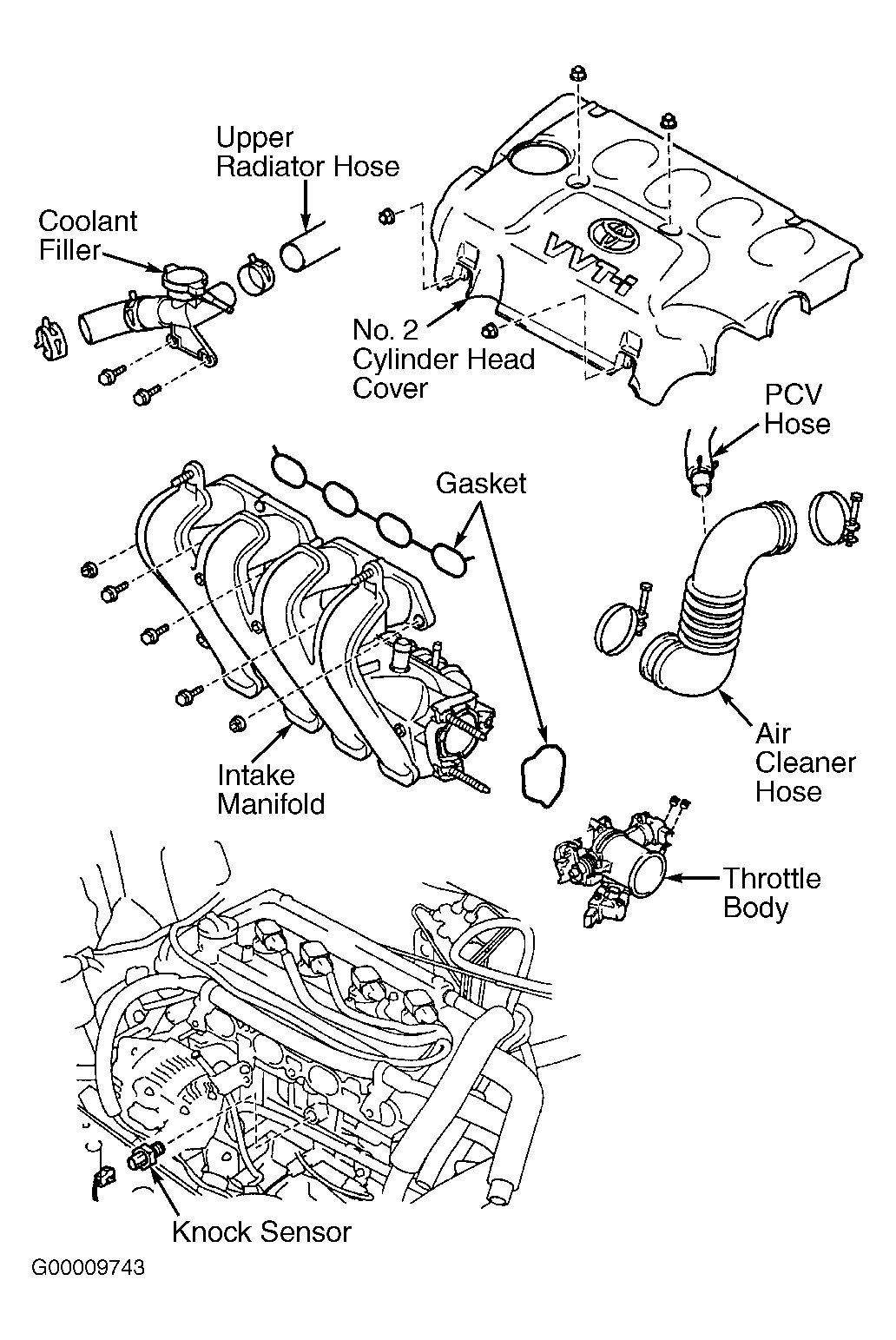

Fig 1: Locating Knock Sensor & Identifying Intake Manifold & Components (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install and tighten knock sensor to specification. See TORQUE SPECIFICATIONS . To install remaining components, reverse removal procedure using NEW gaskets. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS . Fill cooling system.

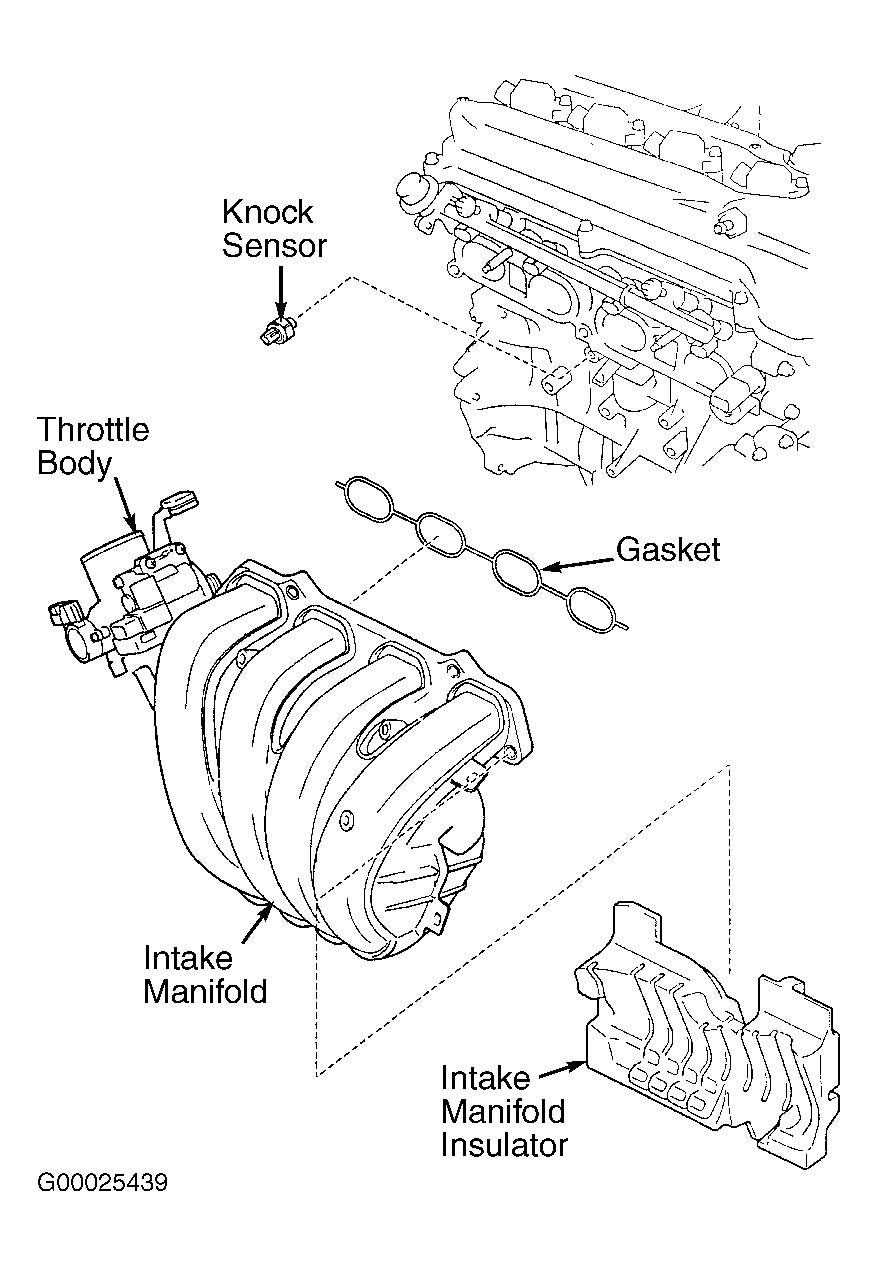

Fig 1: Locating Knock Sensor & Identifying Intake Manifold & Components (ECHO)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

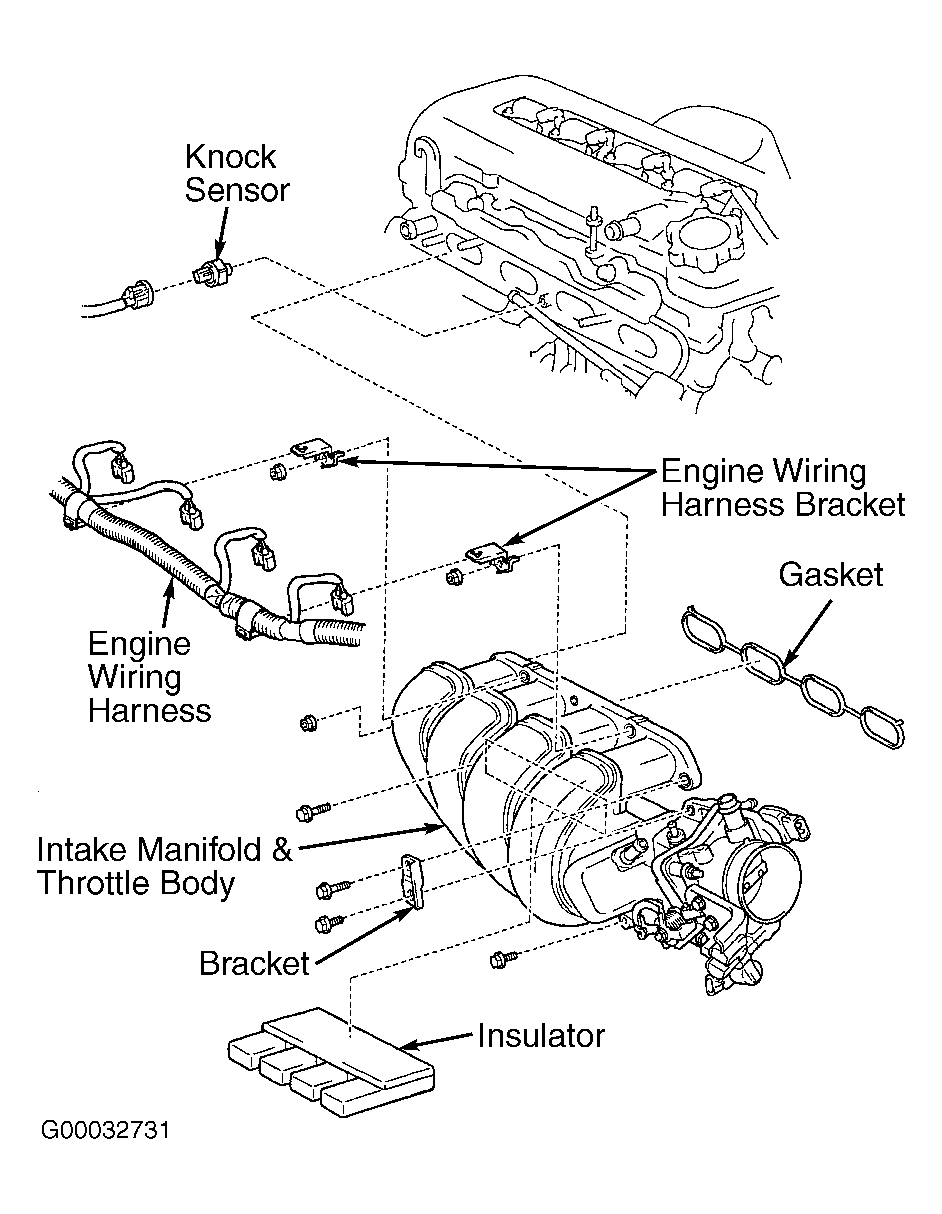

Fig 1: Locating Knock Sensor & Identifying Typical Intake Manifold & Components (MR2)

Install and tighten knock sensor to specification. See TORQUE SPECIFICATIONS . To install remaining components, reverse removal procedure using NEW gaskets and "O" ring on dipstick tube. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS . Fill and bleed cooling system. See COOLING SYSTEM BLEEDING under COOLING SYSTEM.

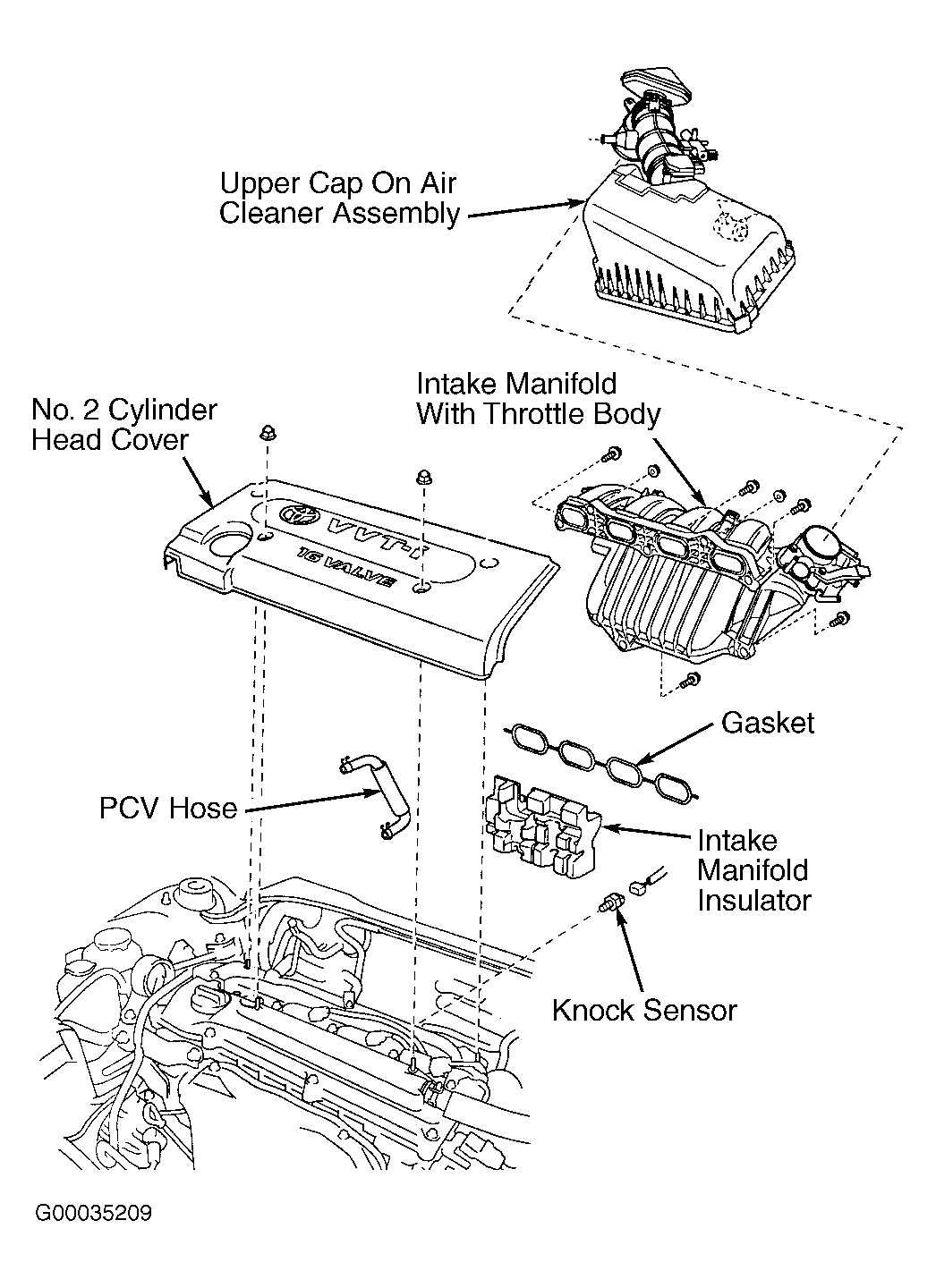

Fig 1: Locating Knock Sensor & Identifying Intake Manifold & Components (Prius)

Fig 1: Locating Knock Sensor & Identifying Intake Manifold & Components (RAV4)
