Removal & Installation (MR2)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

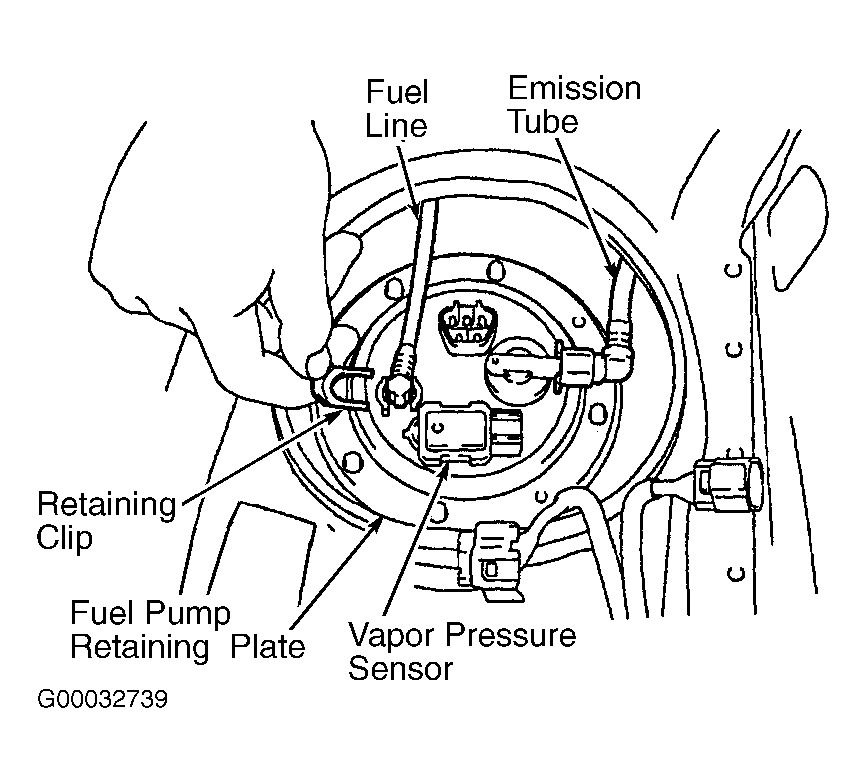

- Vapor pressure sensor is located on top of fuel pump. See Figure. Apply tape to end of screwdriver to prevent scratching interior components. Using screwdriver, remove door opening scuff plates, lower trim covers and quarter trim covers. See Figure. Remove luggage compartment lids, luggage compartment boxes and cover plate on floor panel for access to vapor pressure sensor.
- Remove bolts and fuel pump protector cover located on fuel tank, above fuel pump. Disconnect electrical connector at vapor pressure sensor. Ensure area around vapor pressure sensor is clean. Remove retaining clip located just below the vapor pressure sensor. Remove vapor pressure sensor. To install reverse removal procedure.
