Vapor Pressure Sensor: Installation
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

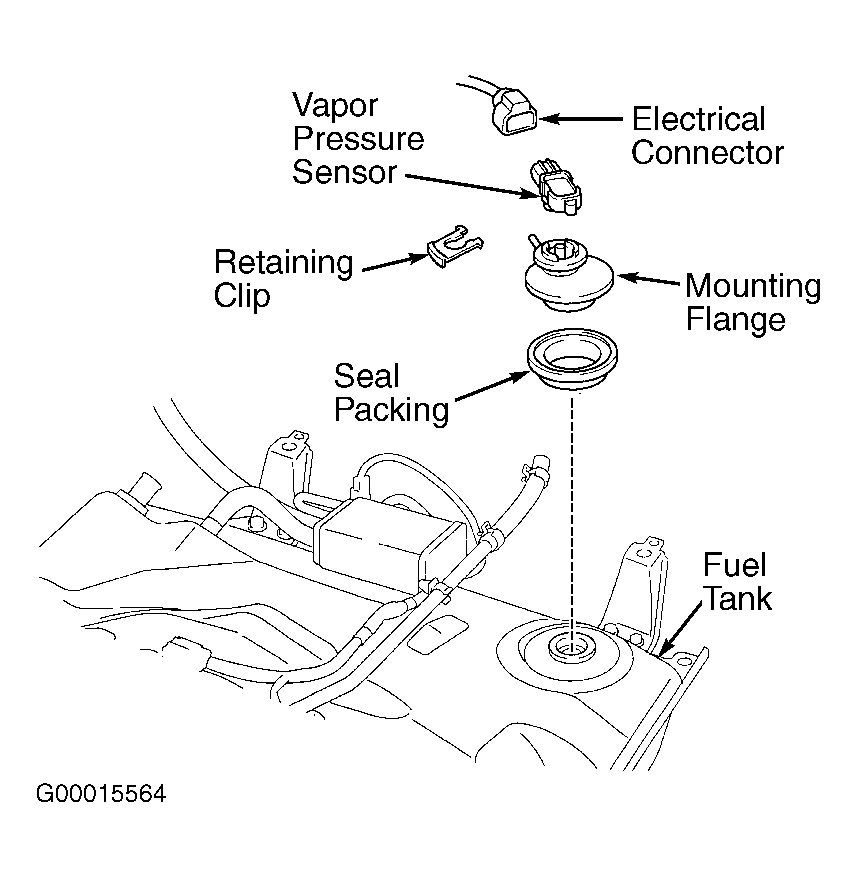

- If mounting flange was removed from fuel tank, using NEW seal packing, install mounting flange in fuel tank. Ensure vapor pressure sensor and vapor pressure sensor sealing surfaces are clean and no scratches exist. Install vapor pressure sensor. Ensure vapor pressure sensor is fully seated in mounting flange.
- Install retaining clip. Ensure retaining clip is fully seated in rim of vapor pressure sensor. Check that vapor pressure sensor cannot be pulled from mounting flange. To install remaining components, reverse removal procedure using NEW gasket on exhaust pipe at exhaust manifold. Tighten fuel tank retaining bolts and exhaust pipe-to-exhaust manifold bolts to specification. See TORQUE SPECIFICATIONS . Operate fuel pump and check for fuel leaks. See FUEL PUMP OPERATION under FUEL SYSTEMS in BASIC DIAGNOSTIC PROCEDURES - 4-CYLINDER article.
