Removal & Installation (Prius)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Read service precautions before proceeding with service procedure. See SERVICE PRECAUTIONS .
Ensure ignition is off. Remove necessary components to access Engine Control Module (ECM). Remove ECM. See ECM LOCATION table. To install, reverse removal procedure.
ECM LOCATION
| Model | (1) Location | ||
|---|---|---|---|
| Camry & Camry Solara | Behind Glove Box | ||
| Celica | In Engine Compartment, Below Cover, Just In Front Of Battery, Next To Driver's Side Strut Tower | ||

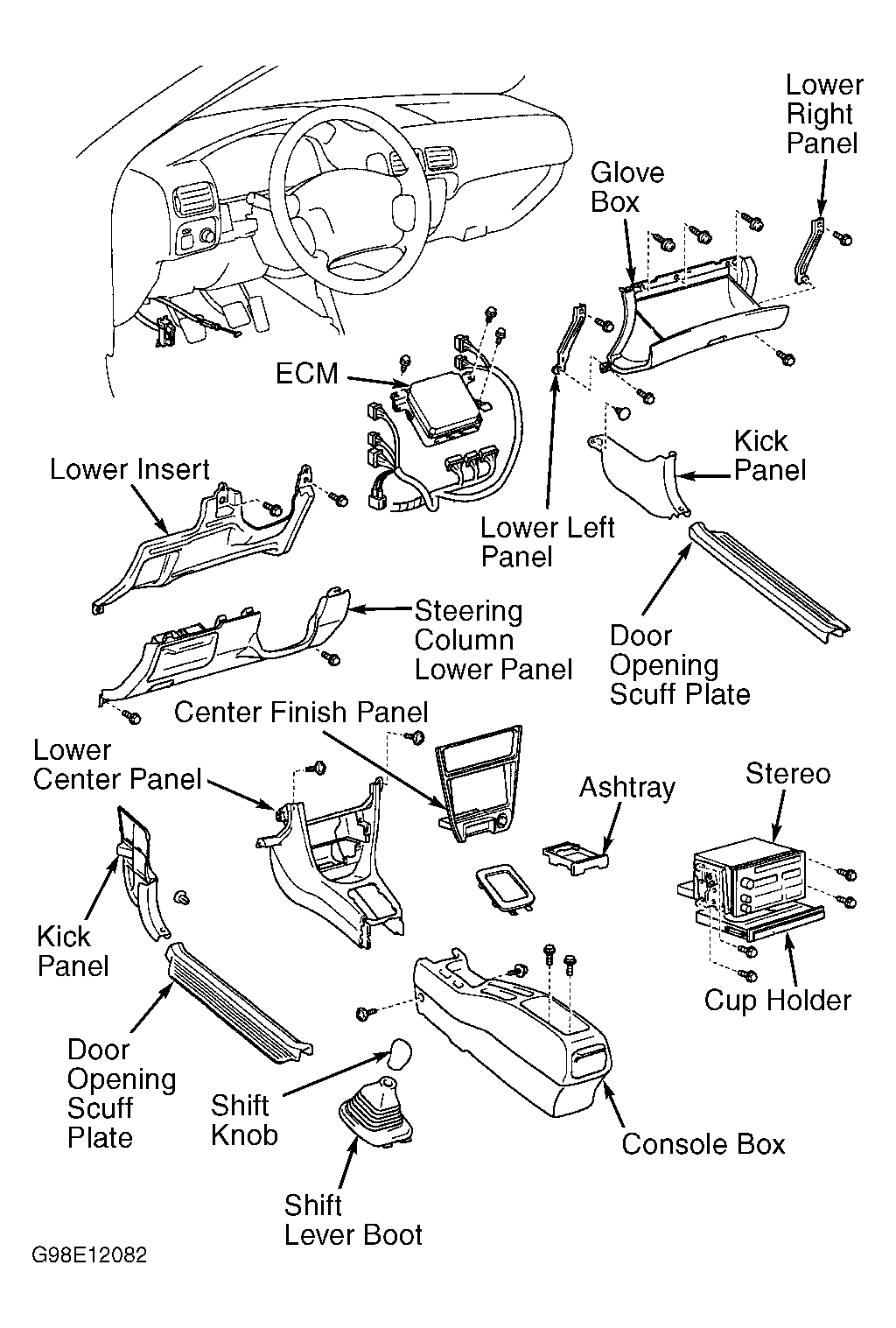

| Corolla | Behind Stereo On Instrument Panel, Just In Front Of Center Console | ||
| ECHO & Highlander | Behind Glove Box | ||

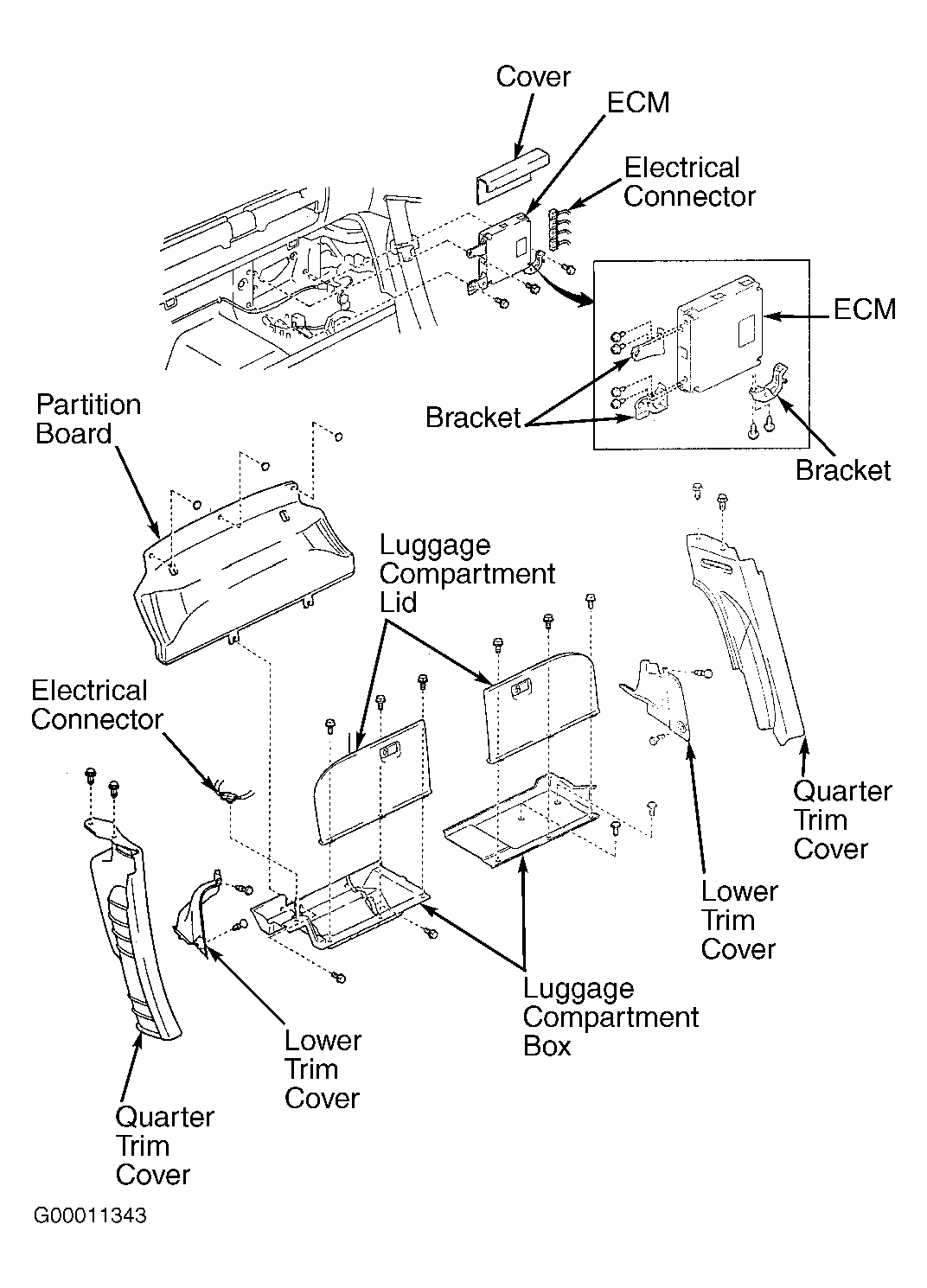

| MR2 | On Inside Of Firewall, Directly Behind Driver's Seat & Luggage Compartment | ||
| Prius | Behind Glove Box | ||
| RAV4 | Behind Passenger's Side Kick Panel, Just Below Instrument Panel | ||
| Tacoma | Behind Glove Box | ||
|
|||
