Inspect Passenger Seat Belt Warning Light
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the center cluster finish panel.
- Disconnect the connectors from the center cluster integration.

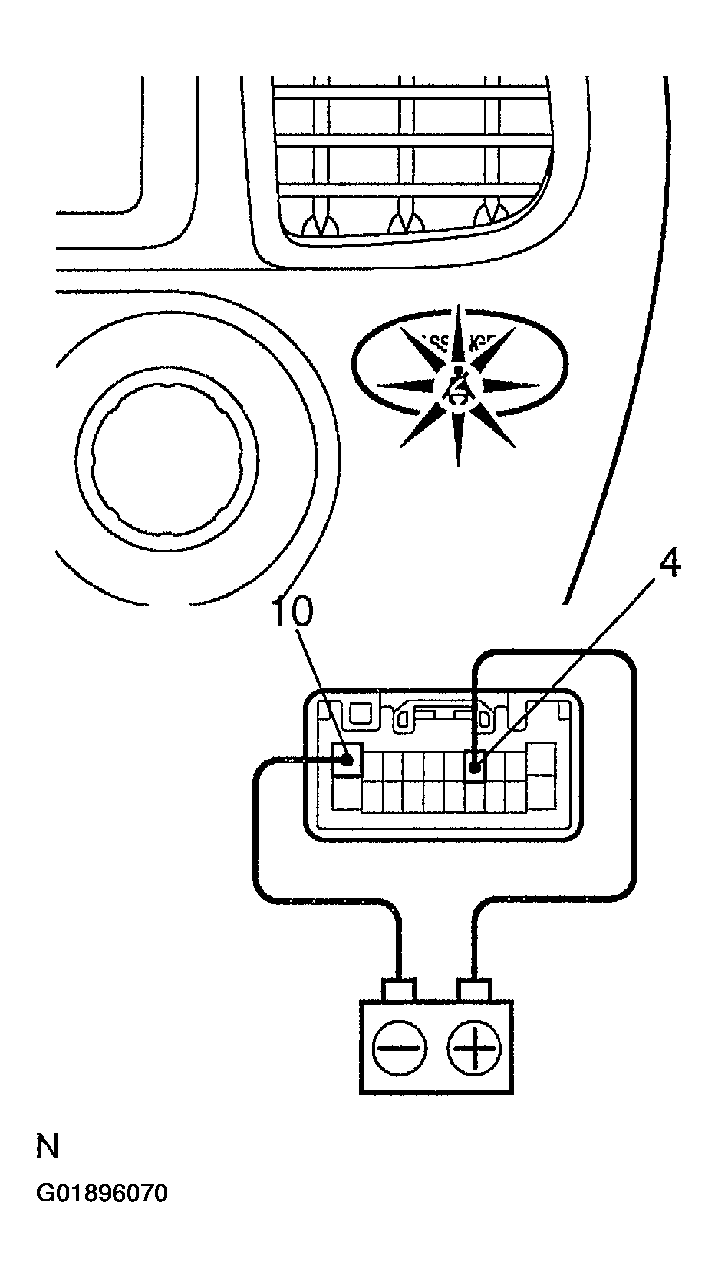

- Connect the positive (+) lead from the battery to the terminal 4 and negative (-) lead terminal 10, and check that the warning light lights UP.
If the warning light does not light up, inspect the bulb or wire harness.
