Section 30 (Vacuum Diagrams): Introduction

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during the visual inspection in appropriate BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses, which may cause driveability and/or computer-indicated malfunctions.

NOTE: When using vacuum diagrams, the charcoal canister may also be referred to as canister or EVAP canister.

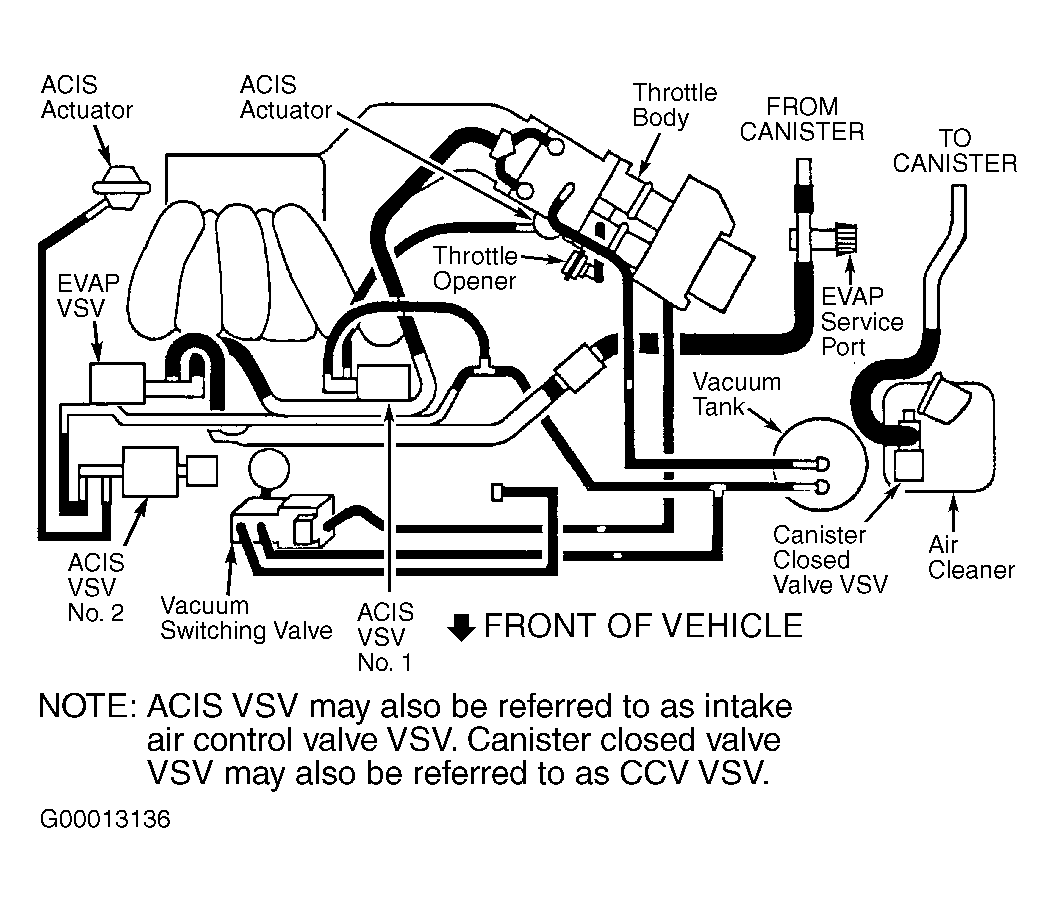

Fig 1: Vacuum Diagram (Avalon 3.0L V6 - 1 Of 3)

G00013136

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Vacuum Diagram (Avalon 3.0L V6 - 2 Of 3)

G00011326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

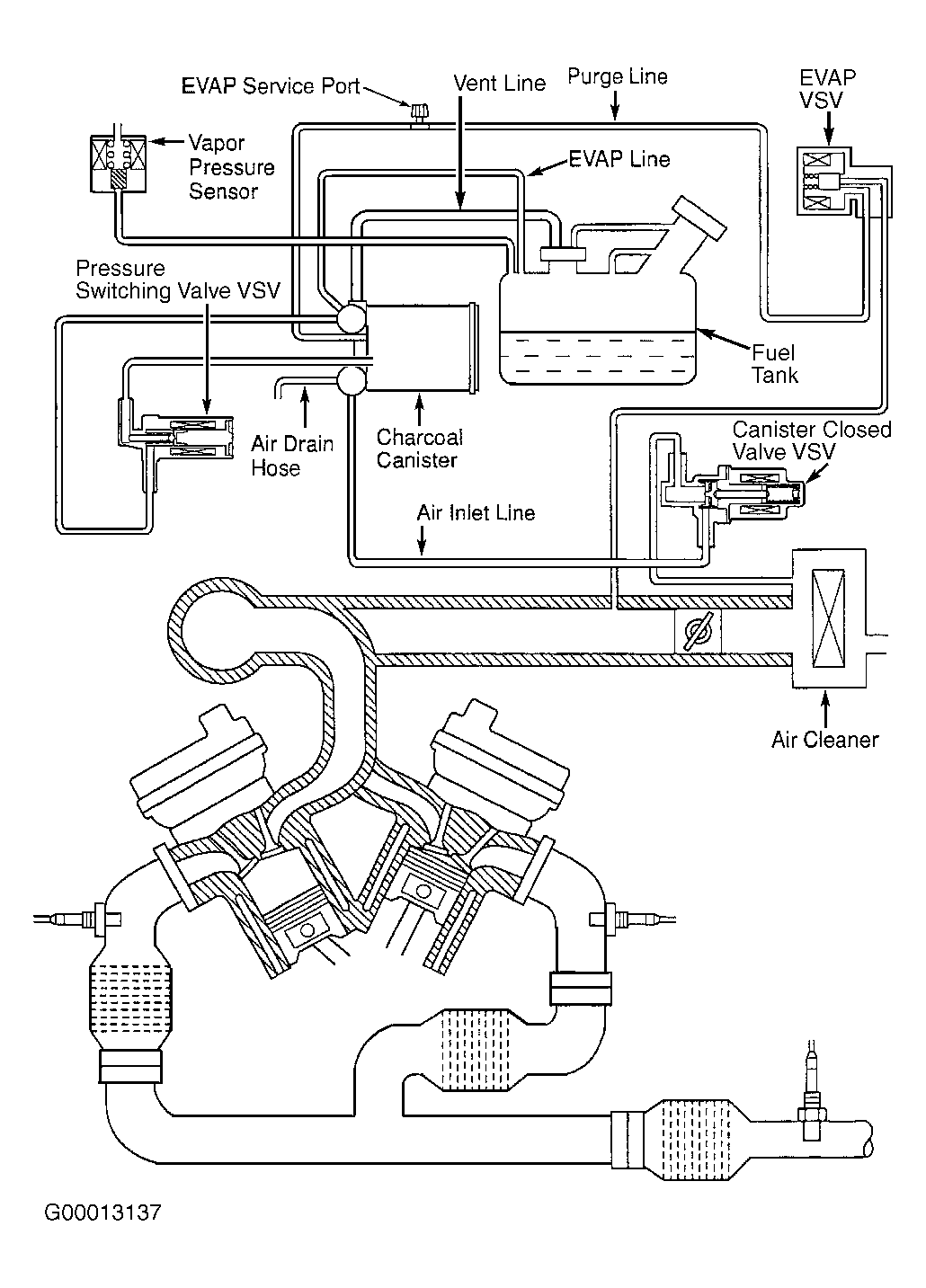

Fig 3: Vacuum Diagram (Avalon 3.0L V6 - 3 Of 3)

G00013137

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

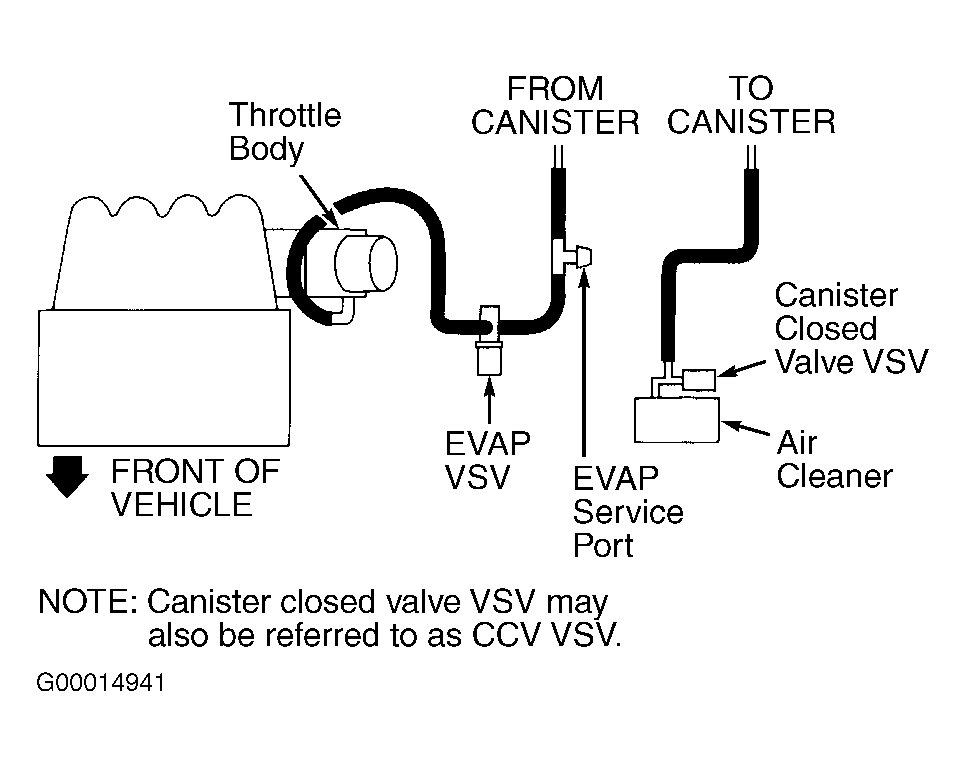

Fig 4: Vacuum Diagram (Camry 2.4L 4-Cyl.)

G00014941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

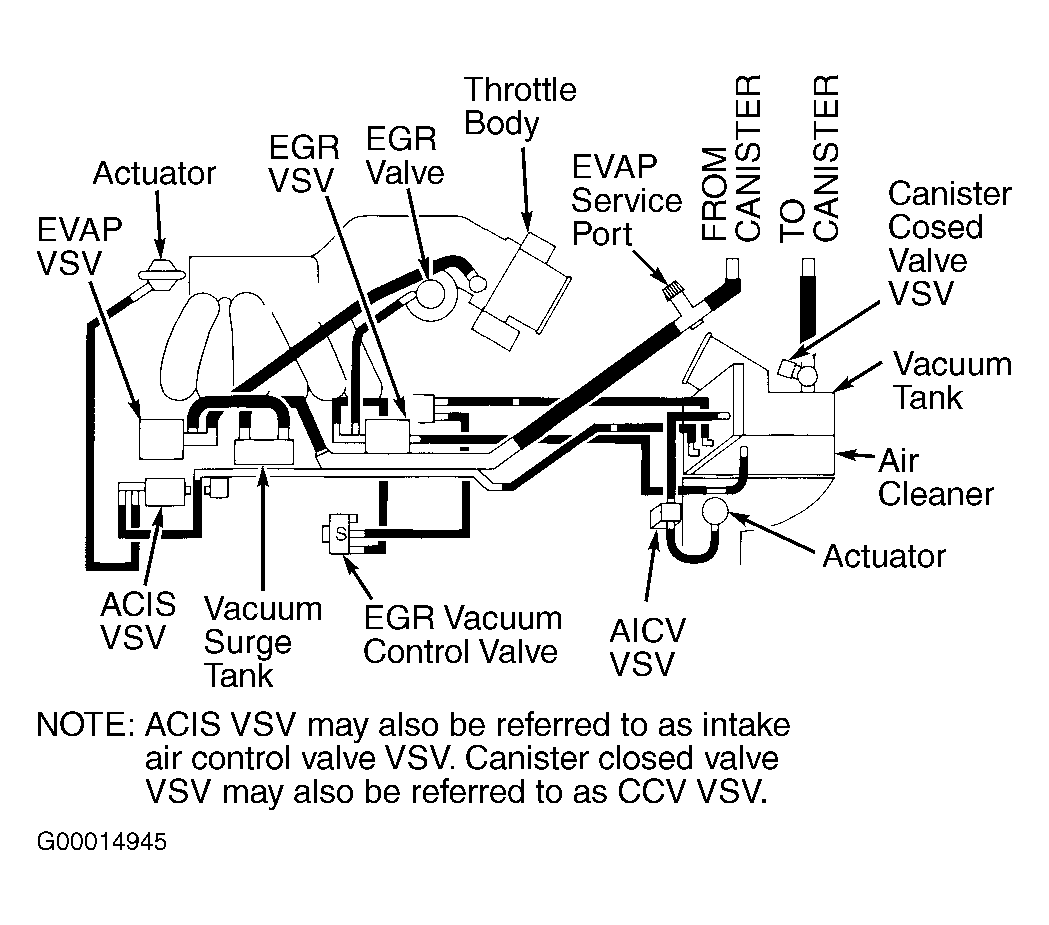

Fig 5: Vacuum Diagram (Camry 3.0L V6)

G00014945

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Vacuum Diagram (Camry Solara 2.4L 4-Cyl. - 1 Of 2)

G00023078

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

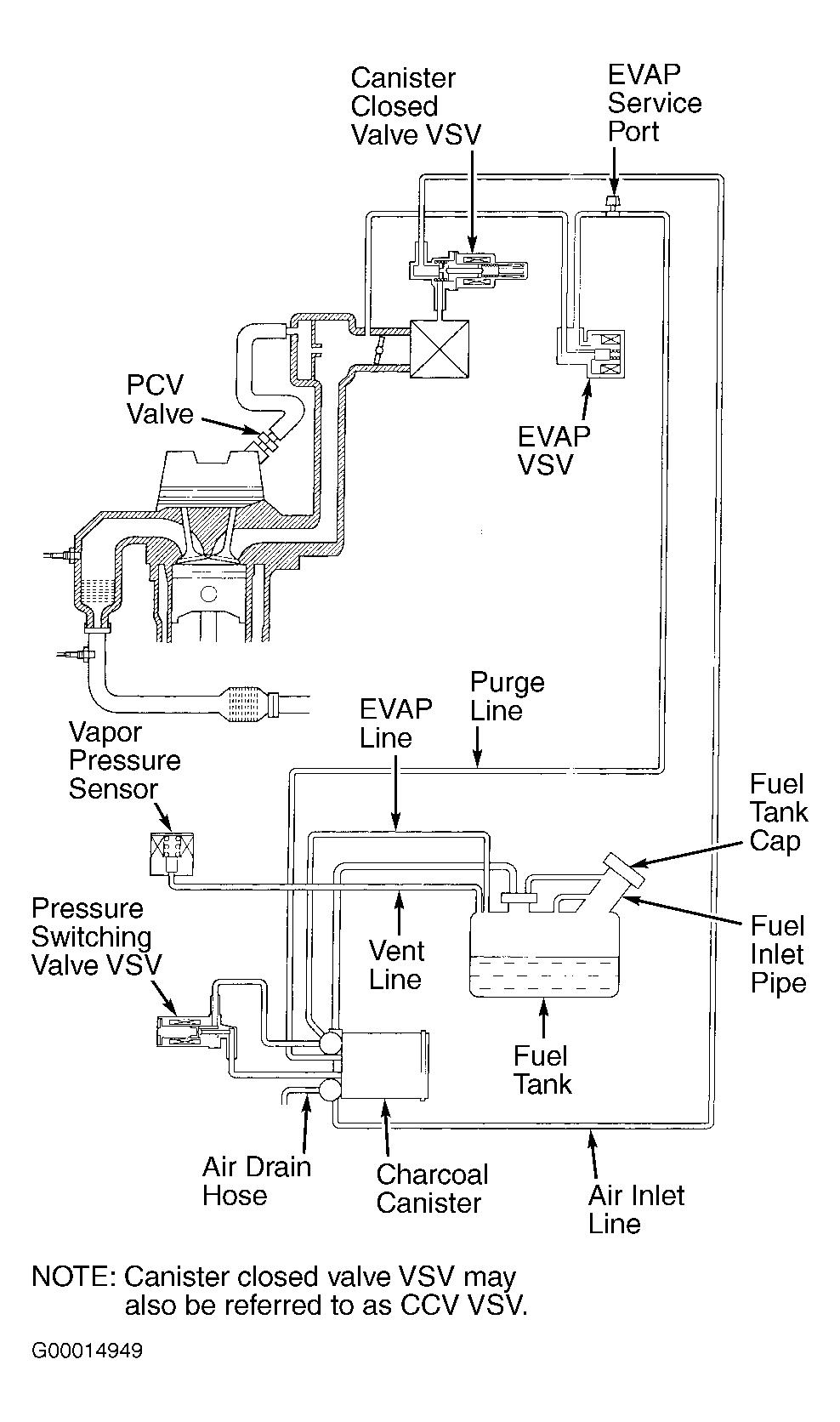

Fig 7: Vacuum Diagram (Camry Solara 2.4L 4-Cyl. - 2 Of 2)

G00014949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

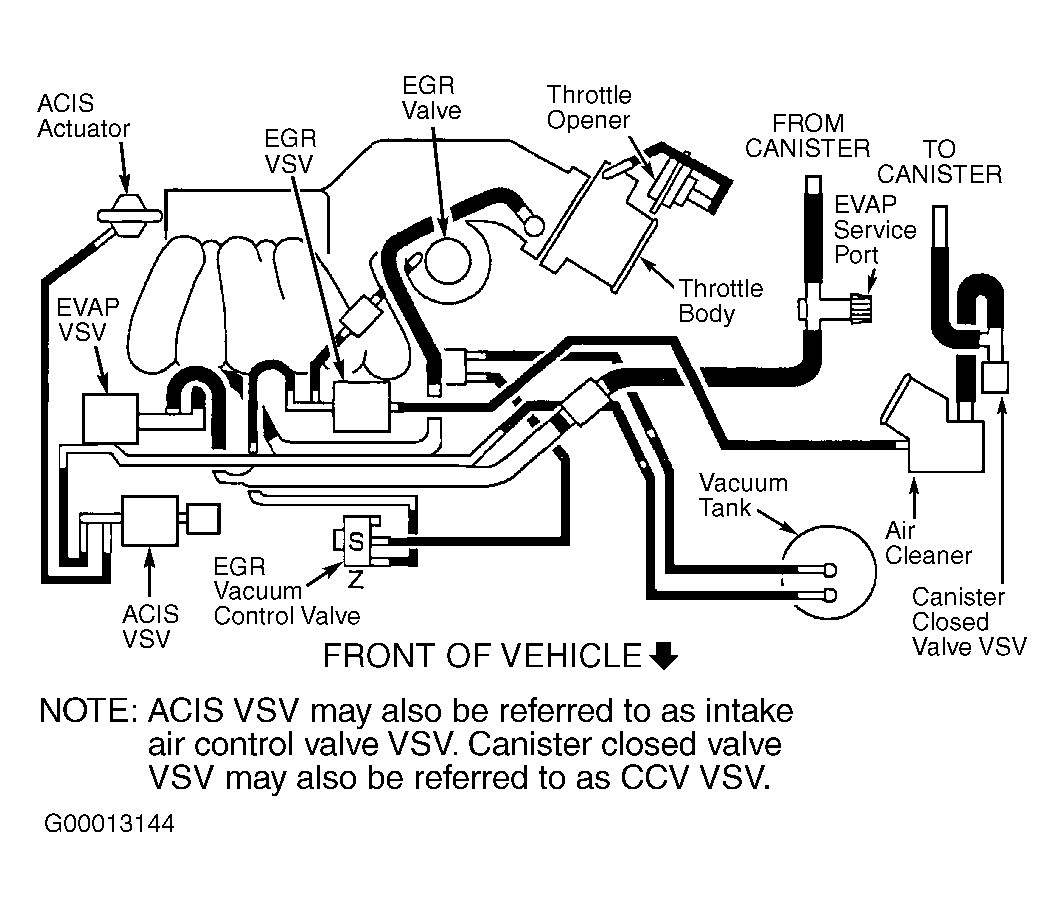

Fig 8: Vacuum Diagram (Camry Solara 3.0L V6 - 1 Of 3)

G00013144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Vacuum Diagram (Camry Solara 3.0L V6 - 2 Of 3)

G00011327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

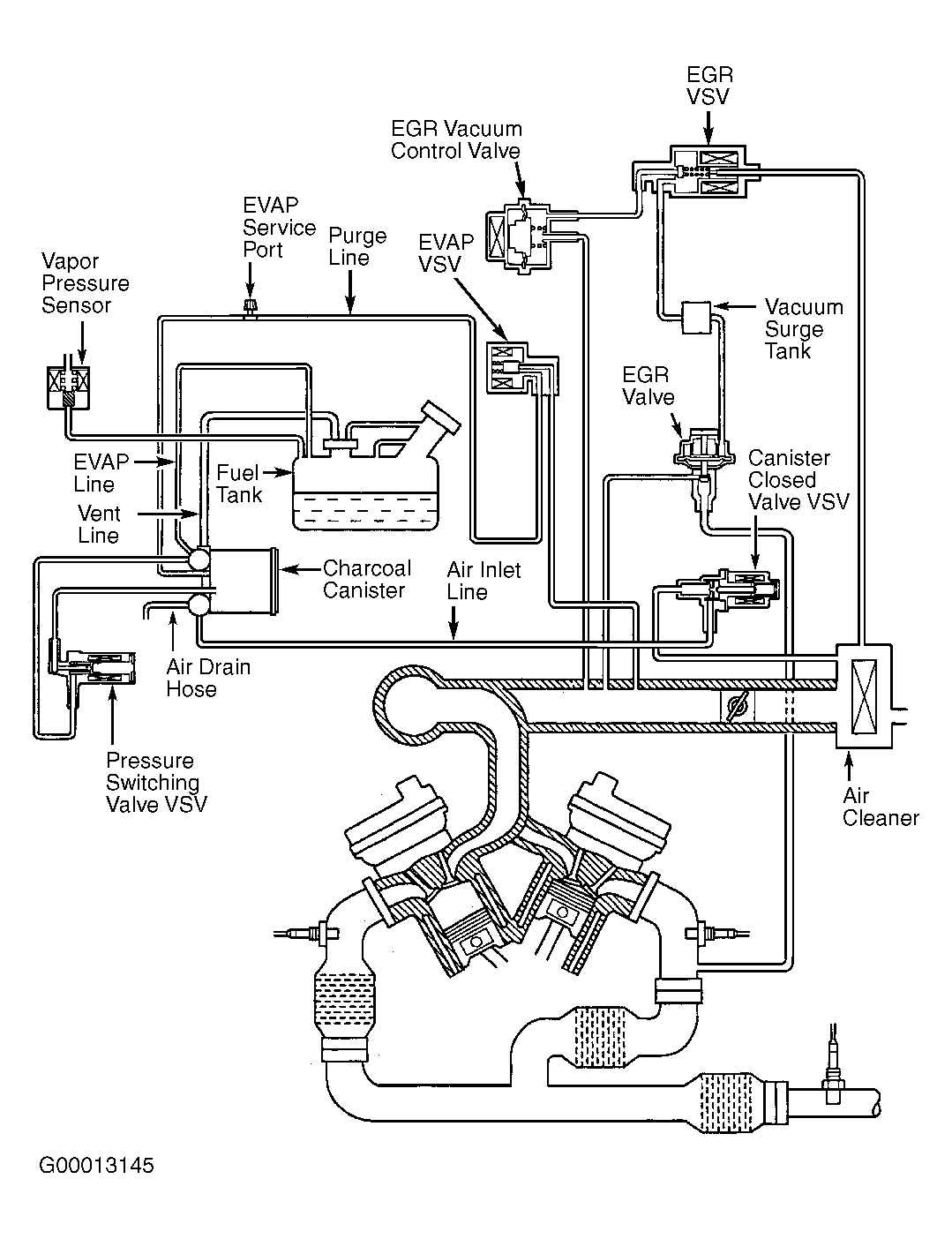

Fig 10: Vacuum Diagram (Camry Solara 3.0L V6 - 3 Of 3)

G00013145

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

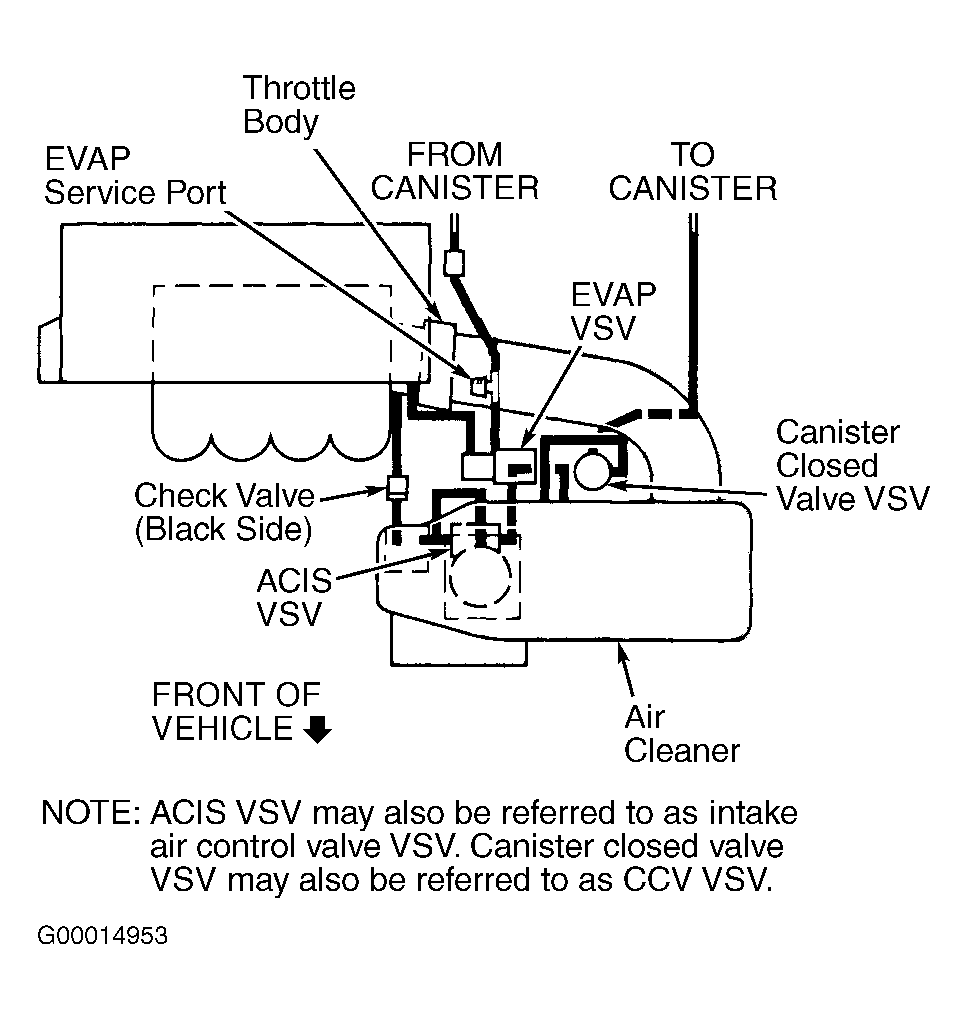

Fig 11: Vacuum Diagram (Celica 1.8L 4-Cyl. 1ZZ-FE - 1 Of 3)

G00014953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

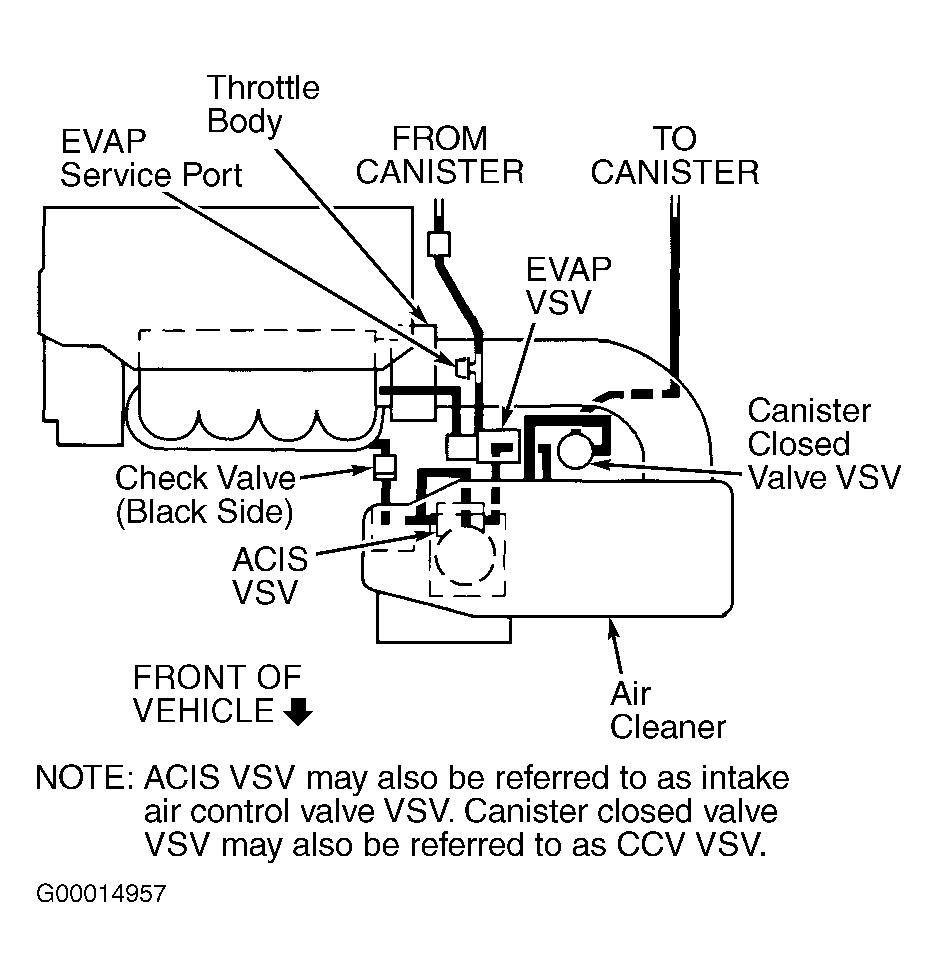

Fig 12: Vacuum Diagram (Celica 1.8L 4-Cyl. 2ZZ-GE - 1 Of 3)

G00014957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Vacuum Diagram (Celica 1.8L 4-Cyl. 1ZZ-FE & 1.8L 4-Cyl. 2ZZ-GE - 2 Of 3)

G99I54773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

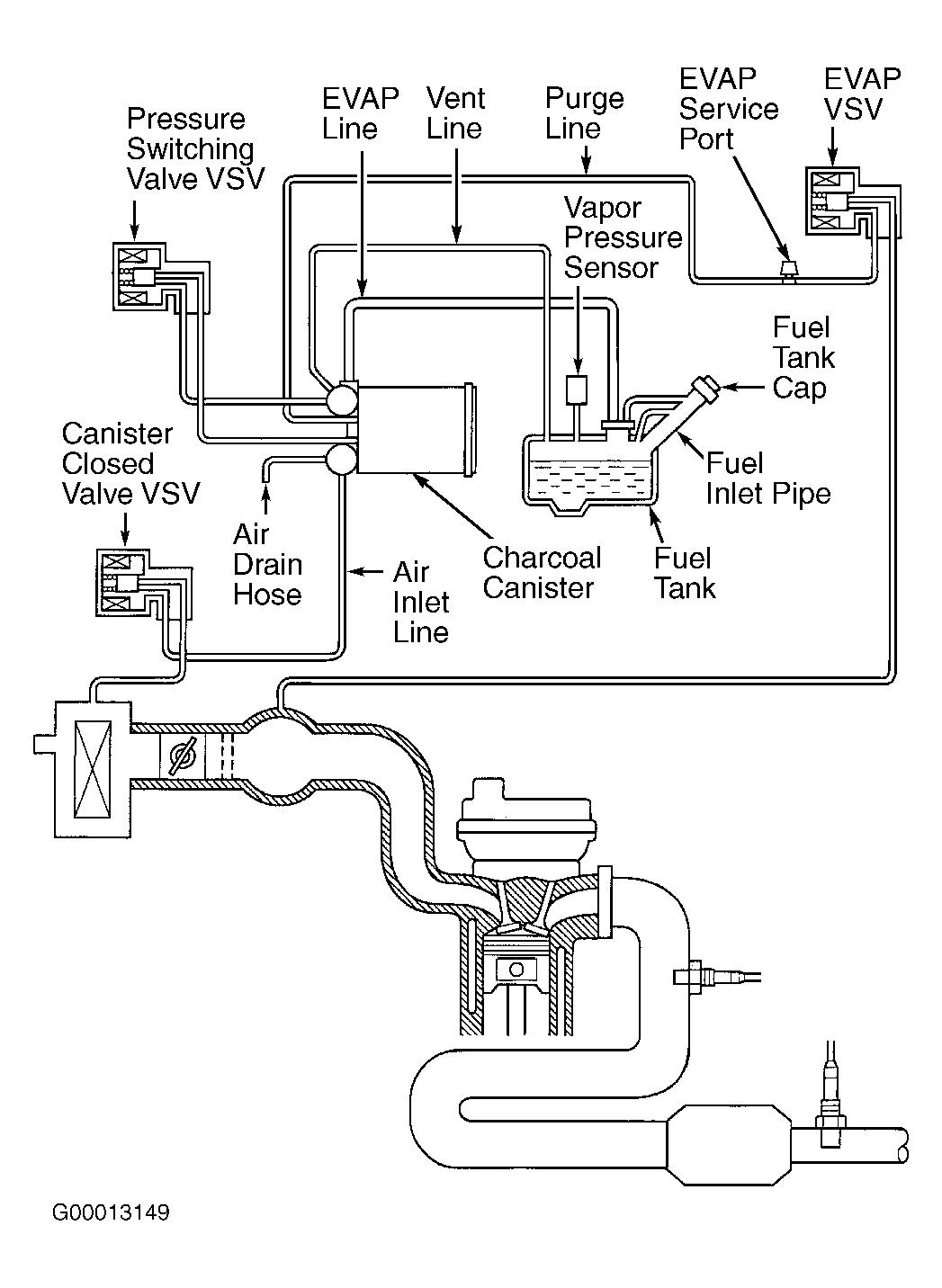

Fig 14: Vacuum Diagram (Celica 1.8L 4-Cyl. 1ZZ-FE & 1.8L 4-Cyl. 2ZZ-GE - 3 Of 3)

G00013149

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

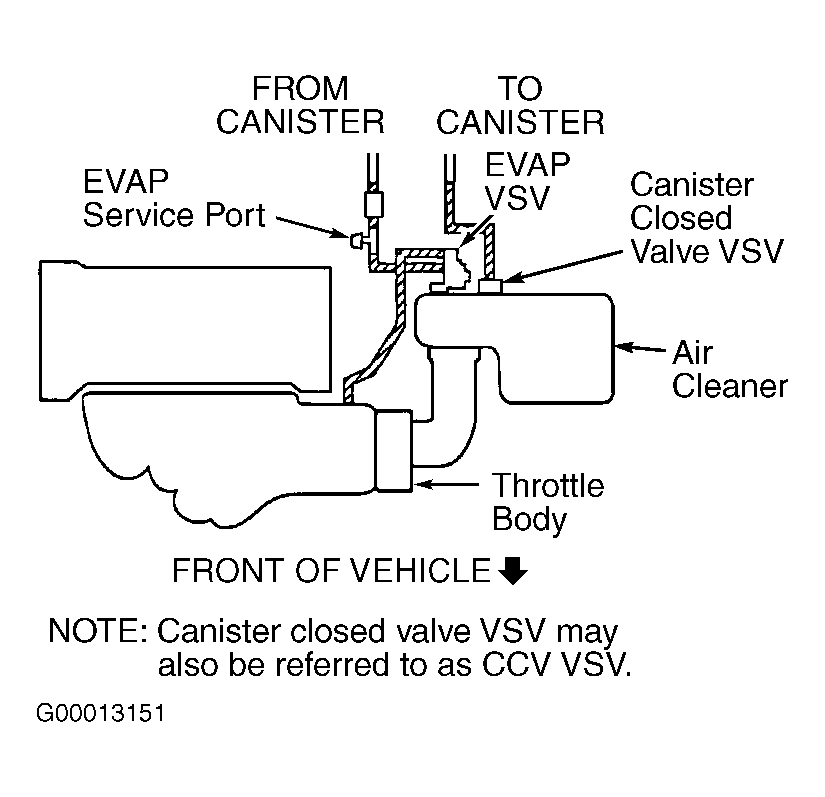

Fig 15: Vacuum Diagram (Corolla 1.8L 4-Cyl. - 1 Of 3)

G00013151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Vacuum Diagram (Corolla 1.8L 4-Cyl. - 2 Of 3)

G99J54774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

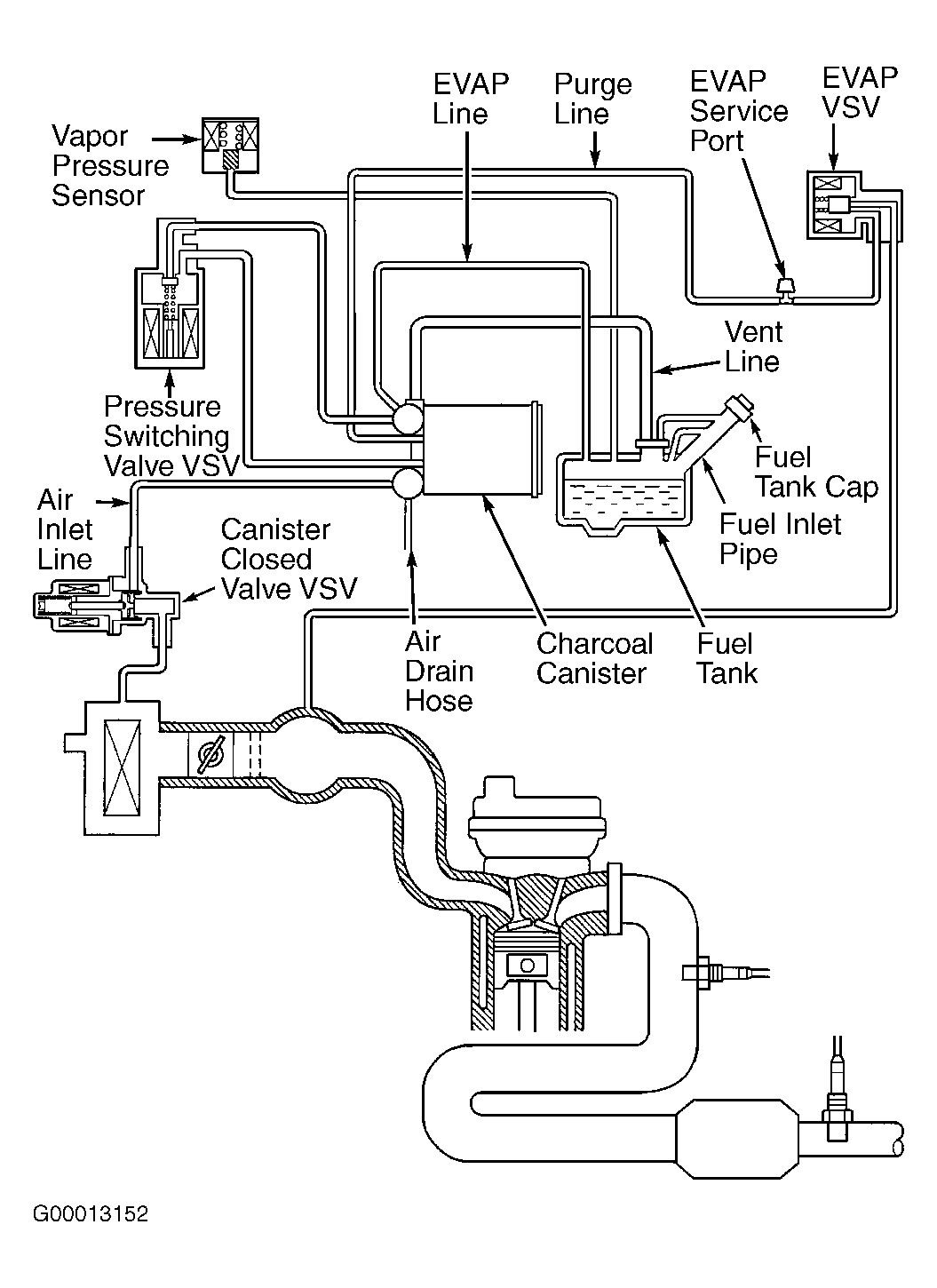

Fig 17: Vacuum Diagram (Corolla 1.8L 4-Cyl. - 3 Of 3)

G00013152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Vacuum Diagram (ECHO 1.5L 4-Cyl. - 1 Of 3)

G00013153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Vacuum Diagram (ECHO 1.5L 4-Cyl. - 2 Of 3)

G99A54775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

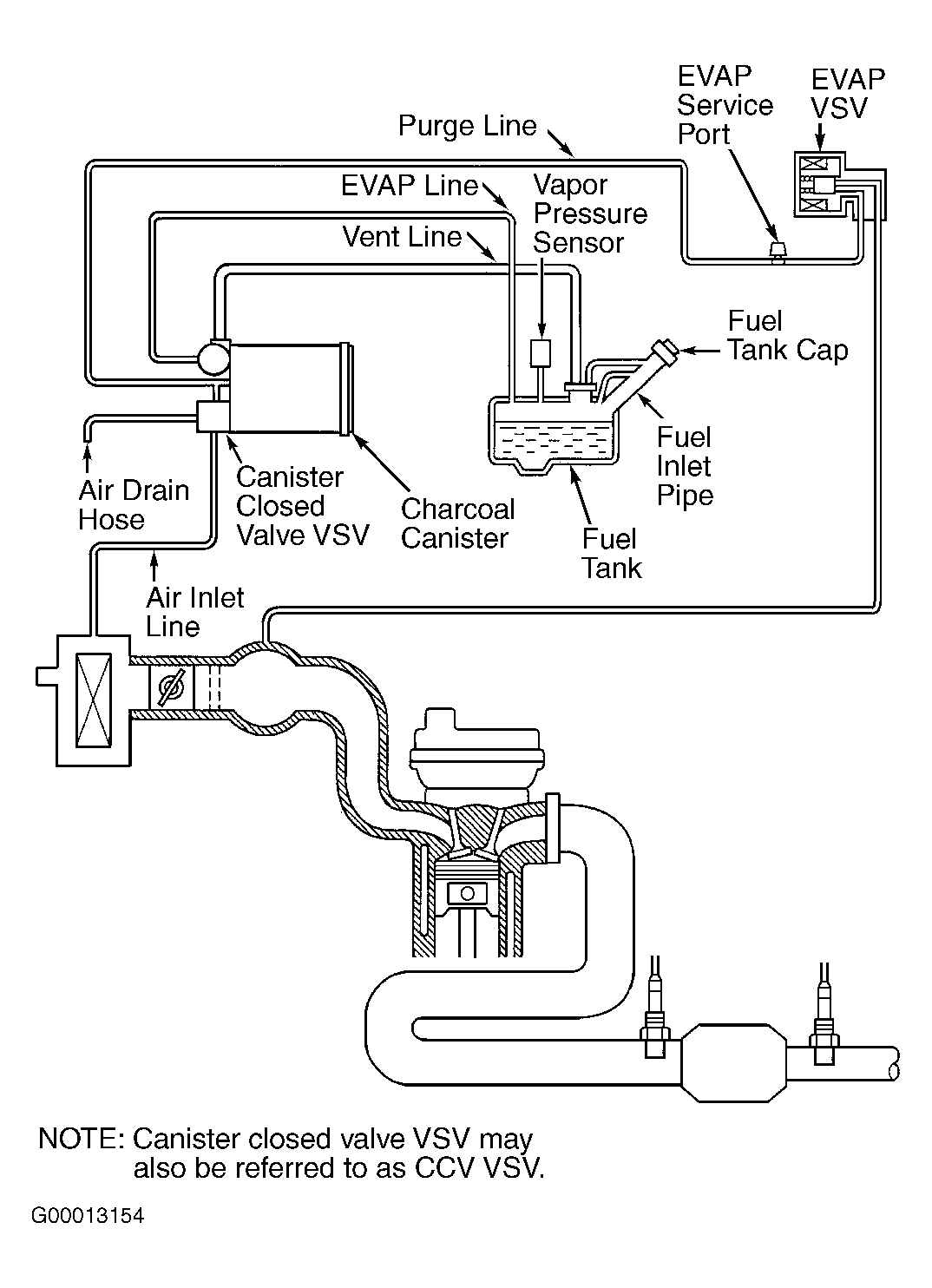

Fig 20: Vacuum Diagram (ECHO 1.5L 4-Cyl. - 3 Of 3)

G00013154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Vacuum Diagram (Highlander 2.4L 4-Cyl.)

G00027304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Vacuum Diagram (Highlander 3.0L V6)

G00014961

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

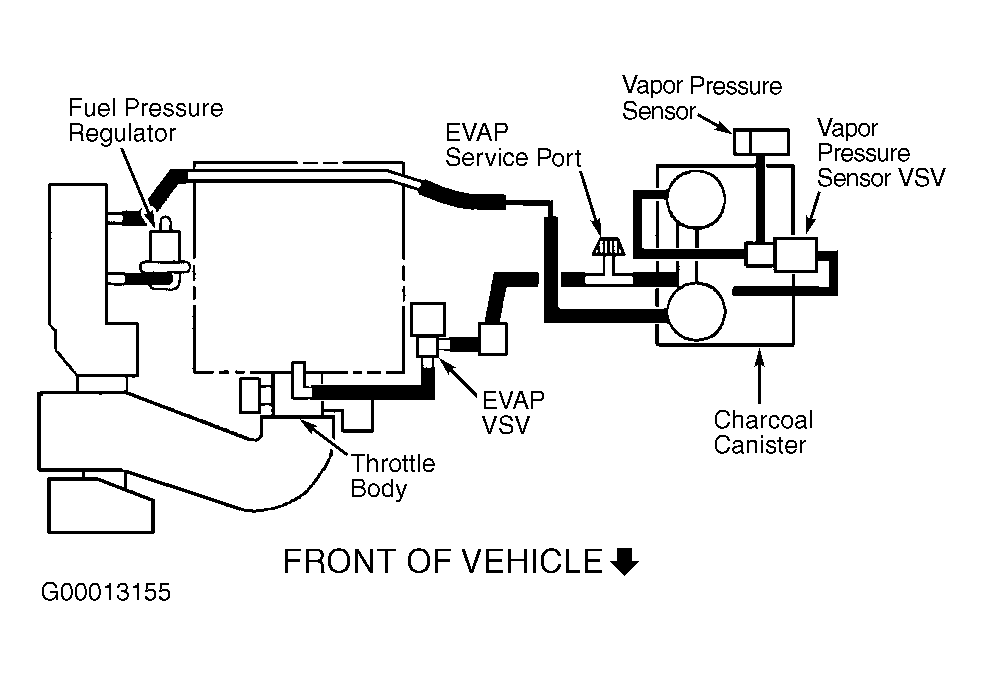

Fig 23: Vacuum Diagram (Land Cruiser 4.7L V8 - 1 Of 3)

G00013155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Vacuum Diagram (Land Cruiser 4.7L V8 - 2 Of 3)

G99G08749

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Vacuum Diagram (Land Cruiser 4.7L V8 - 3 Of 3)

G99F52725

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

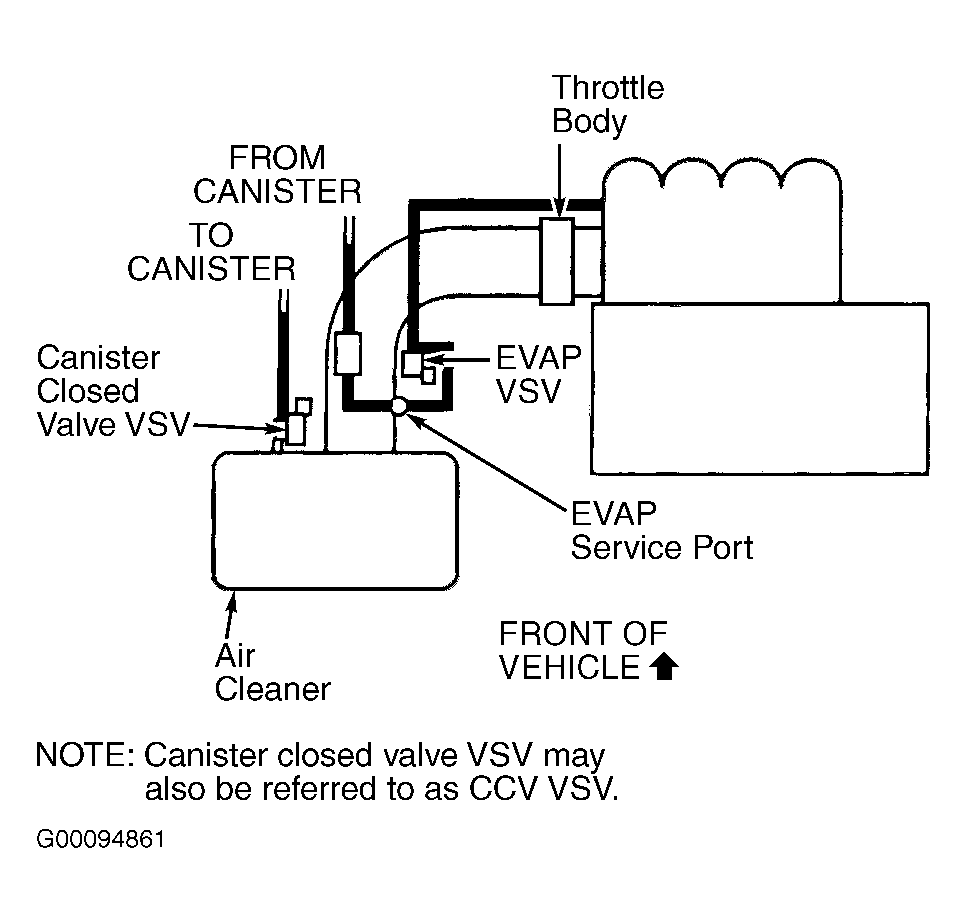

Fig 26: Vacuum Diagram (MR2 1.8L 4-Cyl. - 1 Of 3)

G00094861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Vacuum Diagram (MR2 1.8L 4-Cyl. - 2 Of 3)

G00016265

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

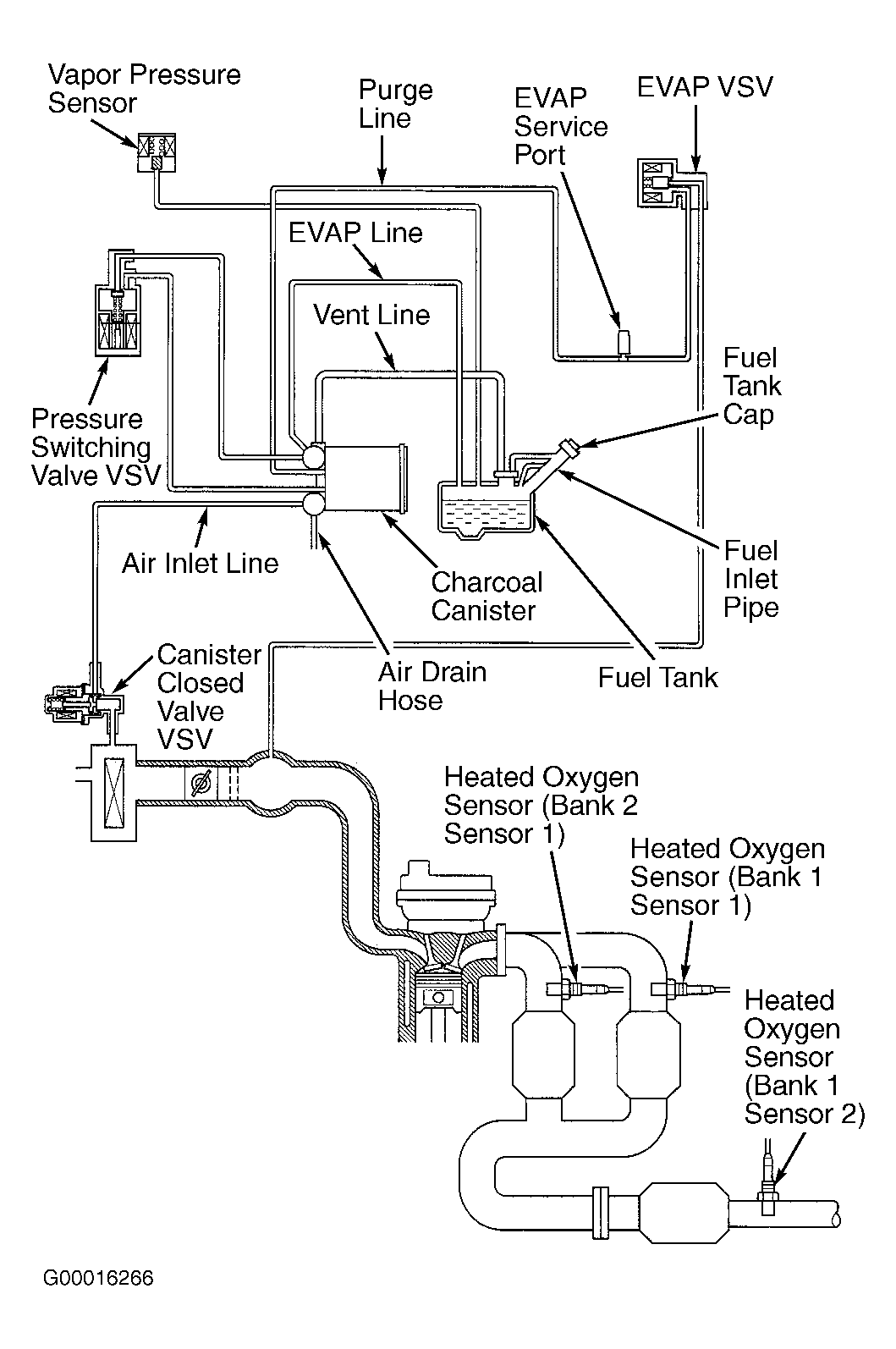

Fig 28: Vacuum Diagram (MR2 1.8L 4-Cyl. - 3 Of 3)

G00016266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

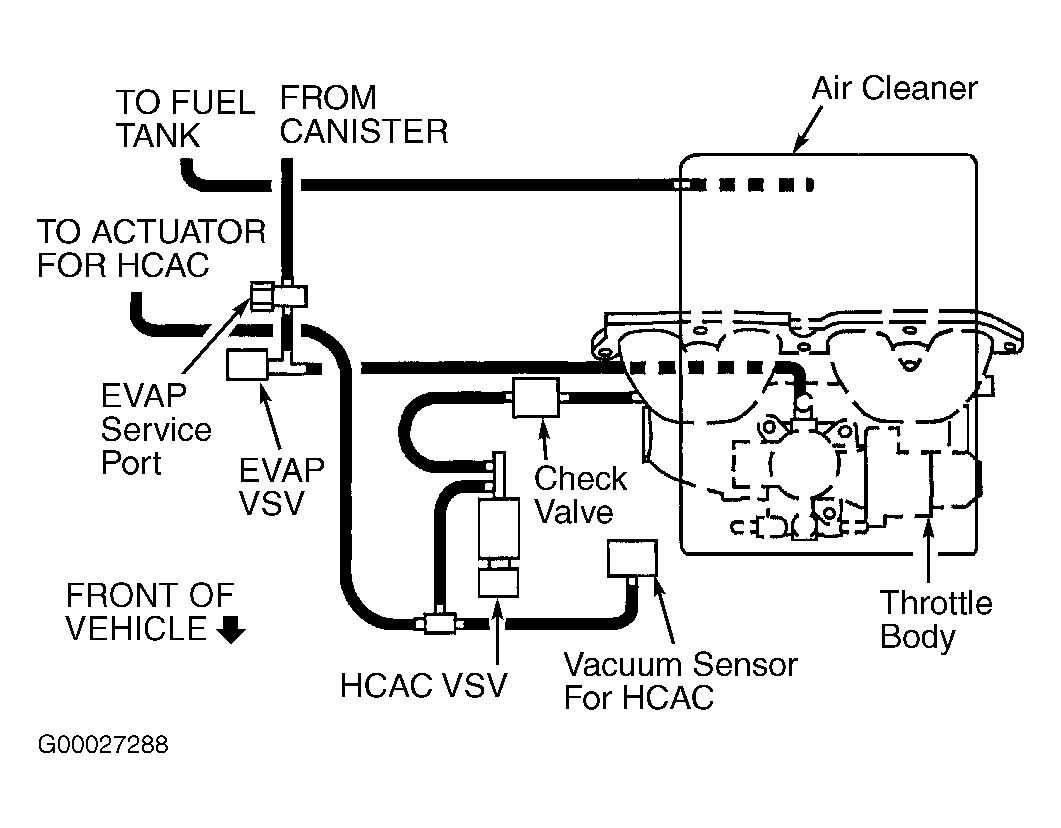

Fig 29: Vacuum Diagram (Prius 1.5L 4-Cyl. - 1 Of 4)

G00027288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: Vacuum Diagram (Prius 1.5L 4-Cyl. - 2 Of 4)

G00027289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

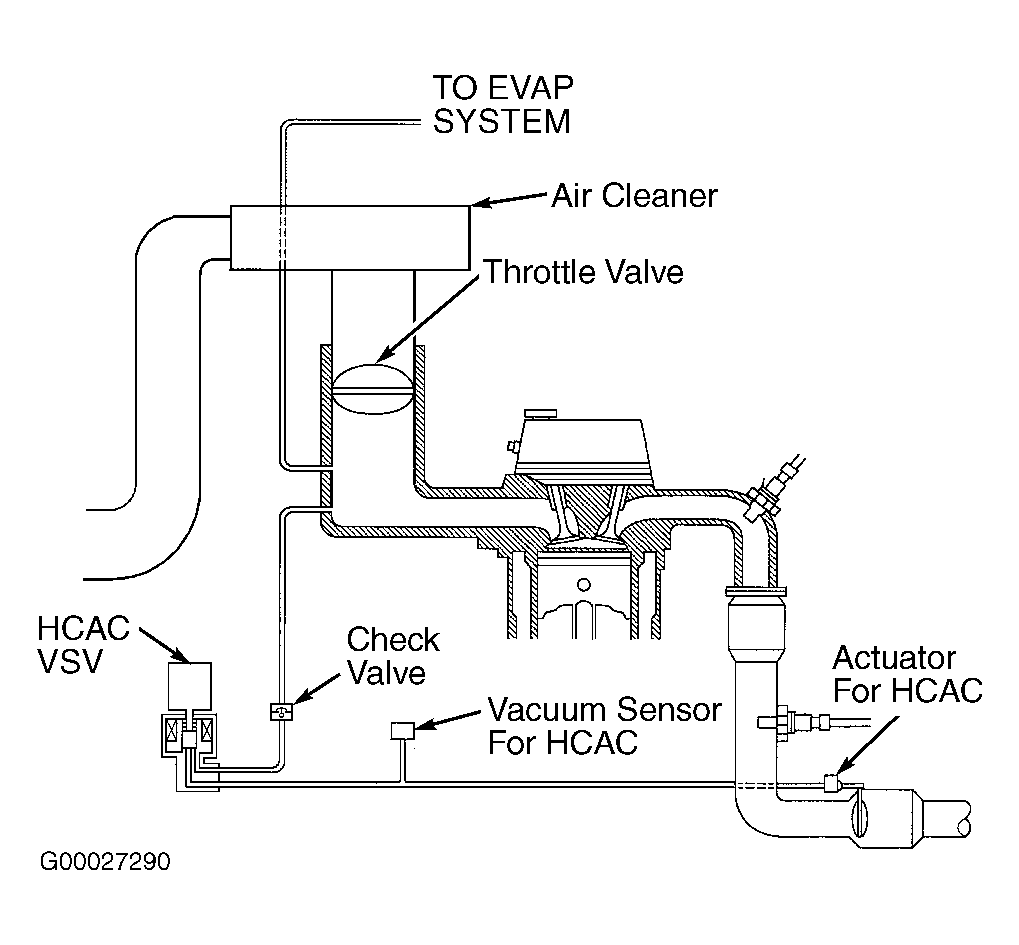

Fig 31: Vacuum Diagram (Prius 1.5L 4-Cyl. - 3 Of 4)

G00027290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

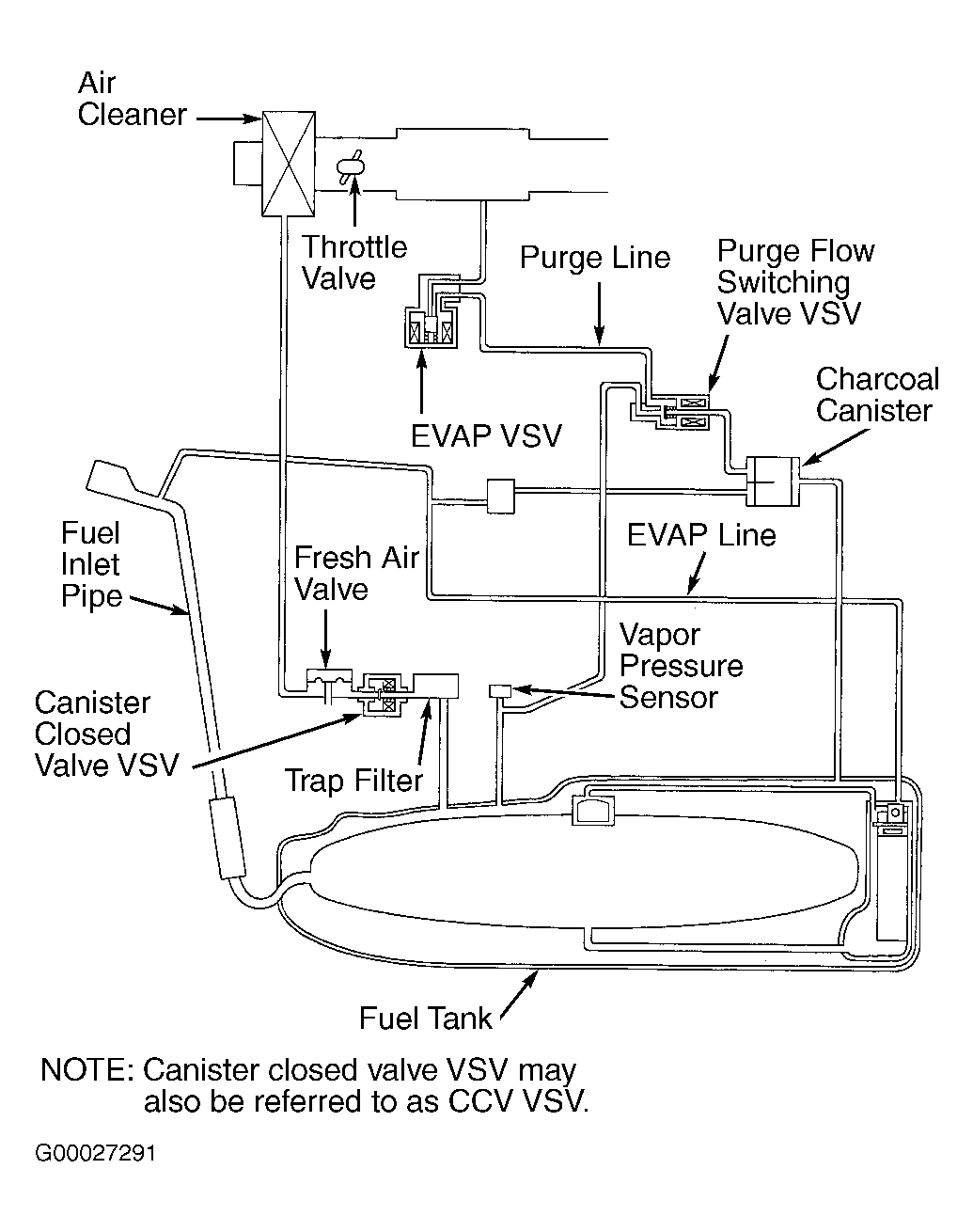

Fig 32: Vacuum Diagram (Prius 1.5L 4-Cyl. - 4 Of 4)

G00027291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

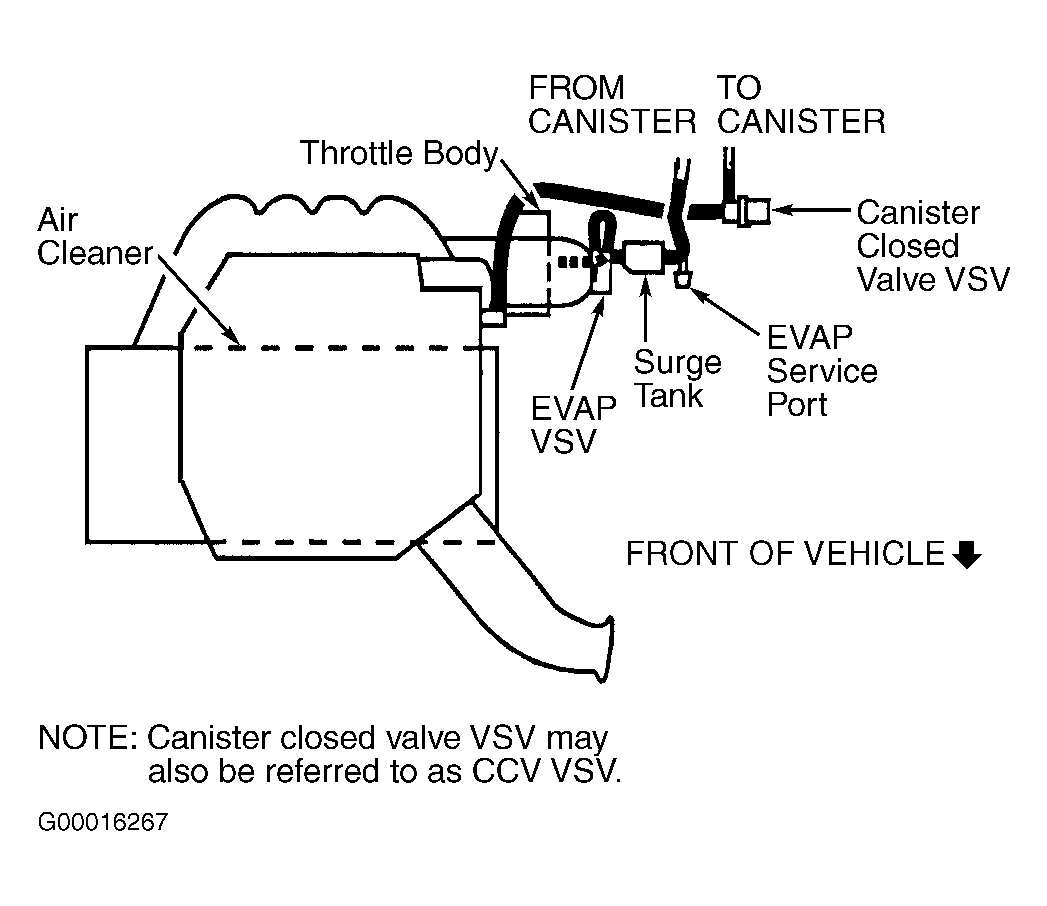

Fig 33: Vacuum Diagram (RAV4 2.0L 4-Cyl. - 1 Of 3)

G00016267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 34: Vacuum Diagram (RAV4 2.0L 4-Cyl. - 2 Of 3)

G00016268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

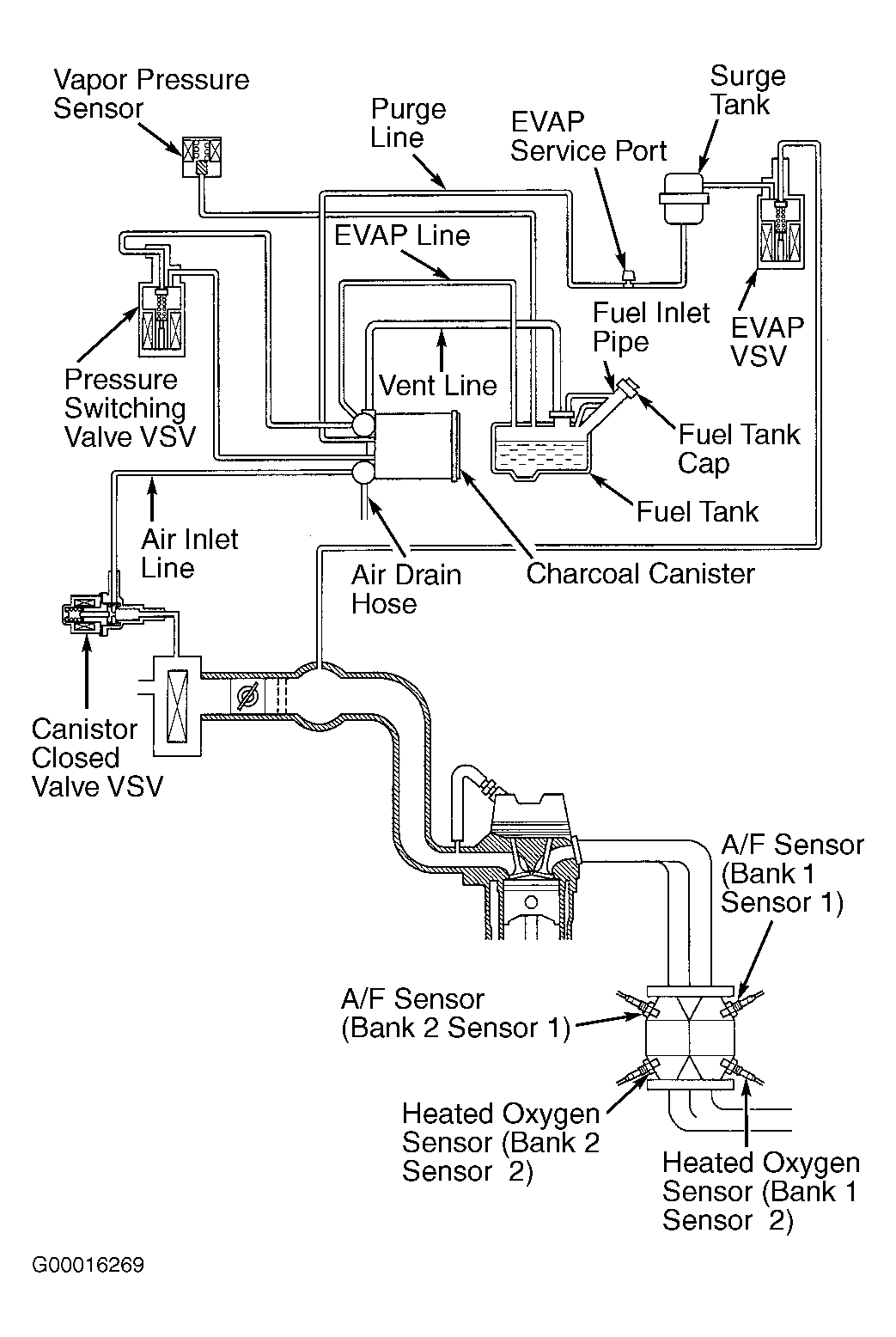

Fig 35: Vacuum Diagram (RAV4 2.0L 4-Cyl. - 3 Of 3)

G00016269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

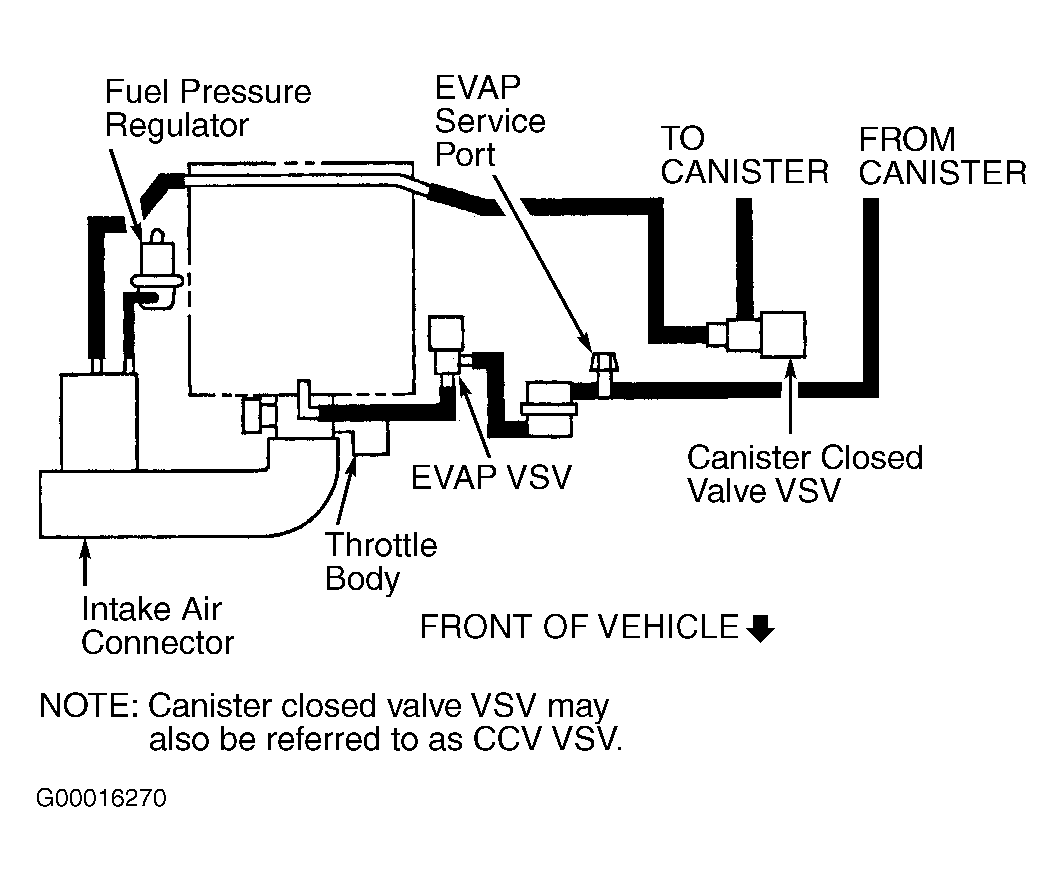

Fig 36: Vacuum Diagram (Sequoia 4.7L V8 - 1 Of 3)

G00016270

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 37: Vacuum Diagram (Sequoia 4.7L V8 - 2 Of 3)

G00016271

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

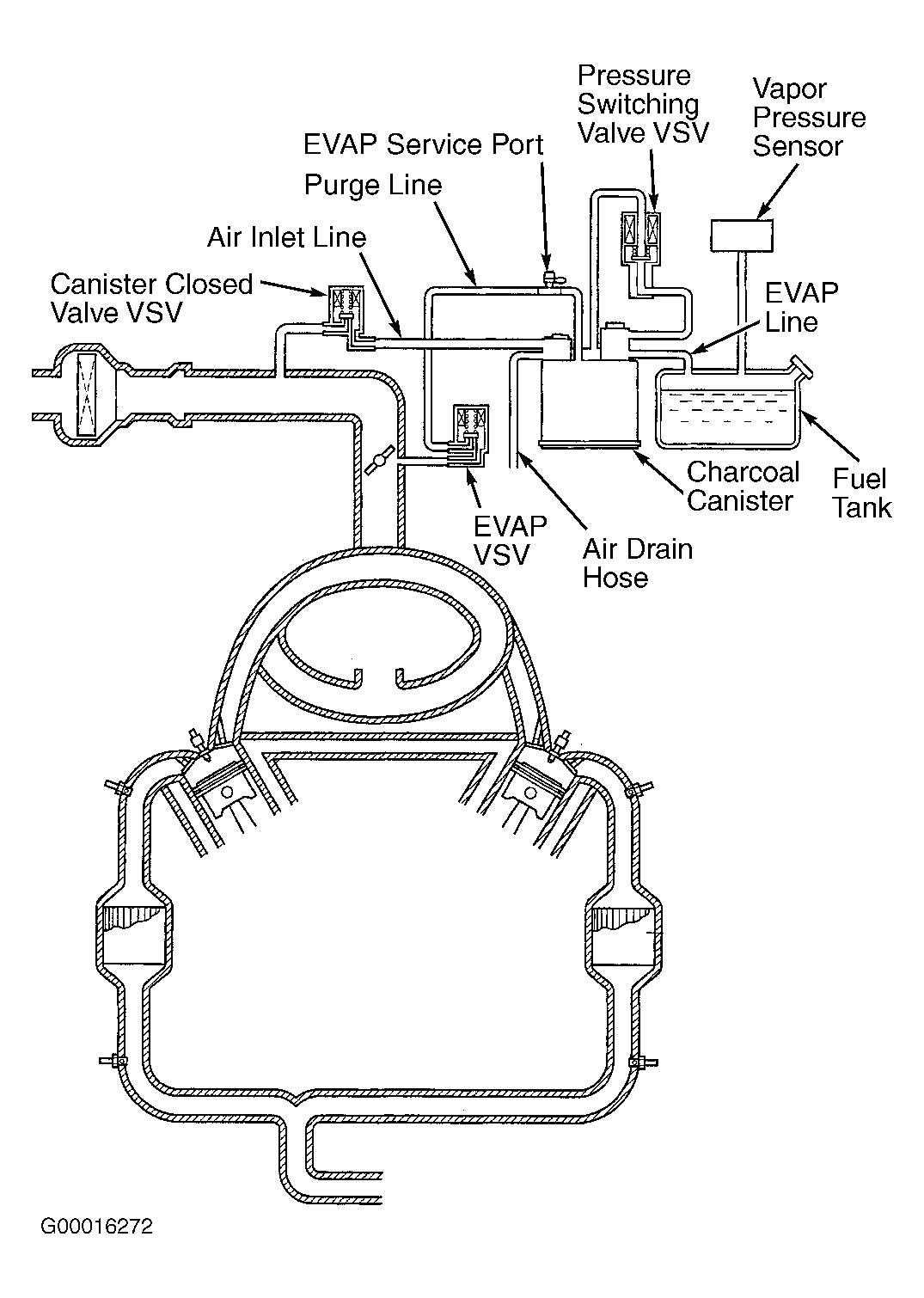

Fig 38: Vacuum Diagram (Sequoia 4.7L V8 - 3 Of 3)

G00016272

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

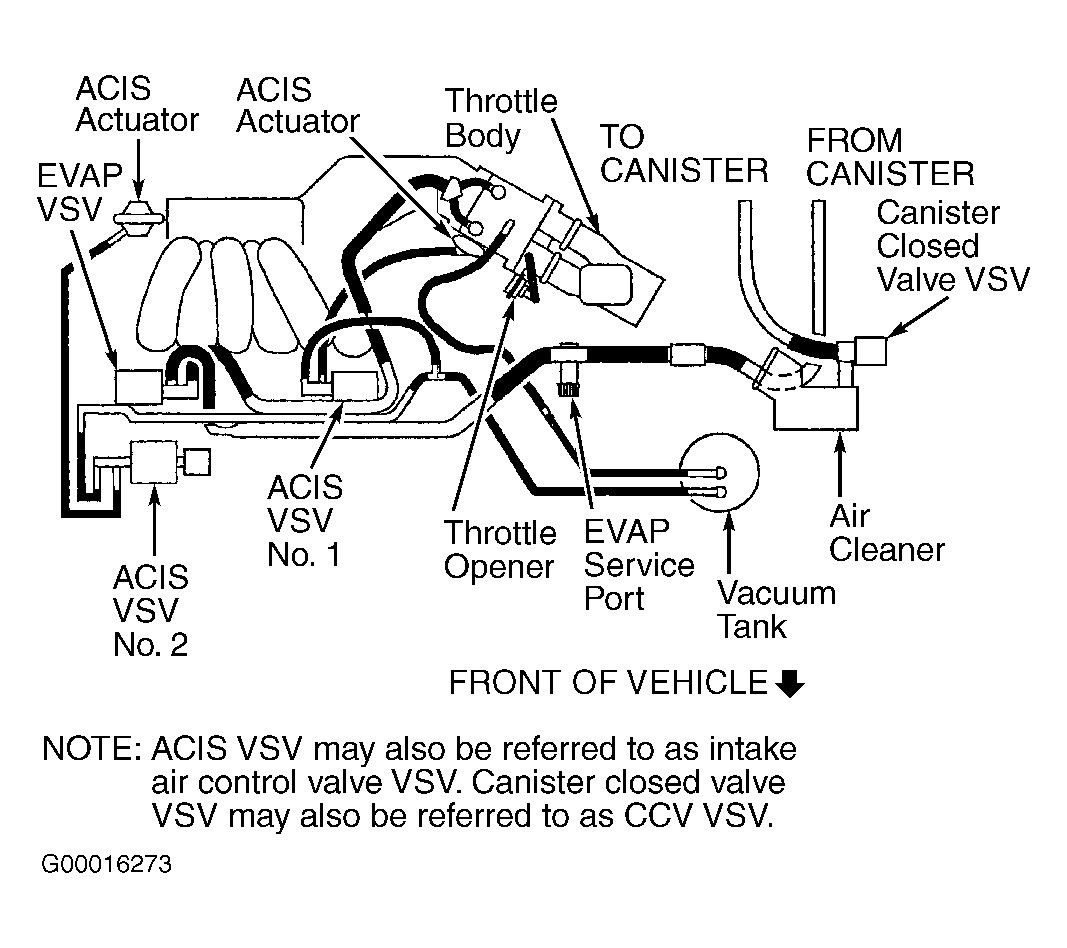

Fig 39: Vacuum Diagram (Sienna 3.0L V6 - 1 Of 3)

G00016273

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 40: Vacuum Diagram (Sienna 3.0L V6 - 2 Of 3)

G00016274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

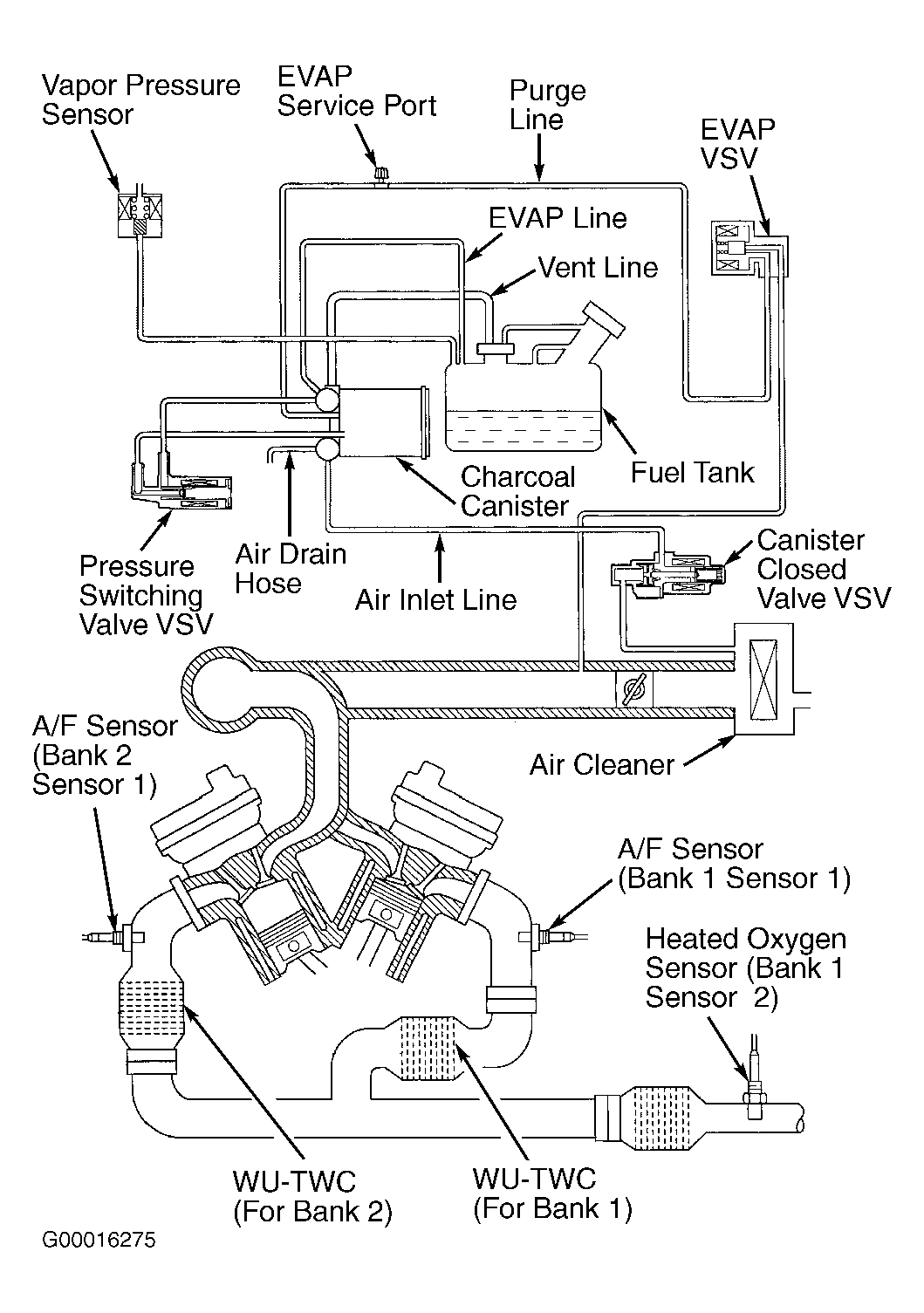

Fig 41: Vacuum Diagram (Sienna 3.0L V6 - 3 Of 3)

G00016275

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

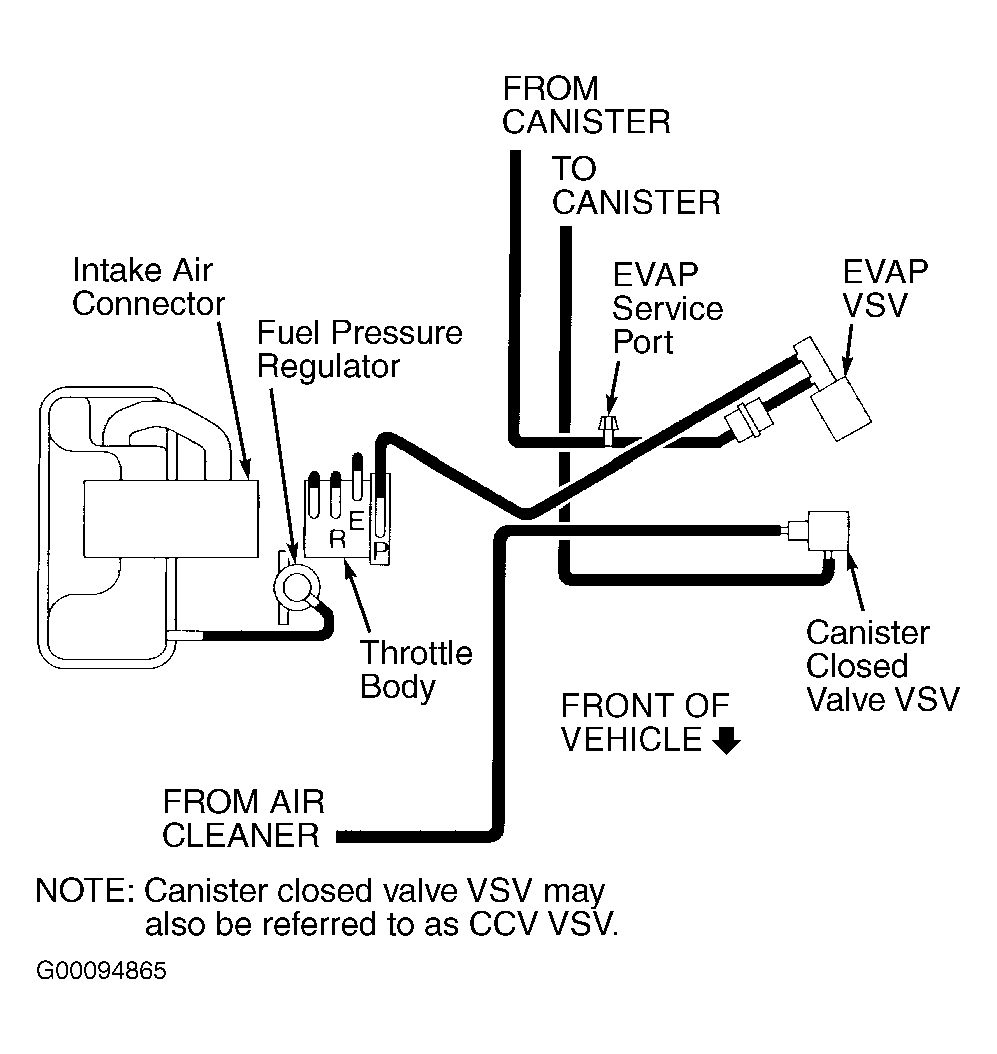

Fig 42: Vacuum Diagram (Tacoma 2.4L 4-Cyl. 2RZ-FE - 1 Of 3)

G00094865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

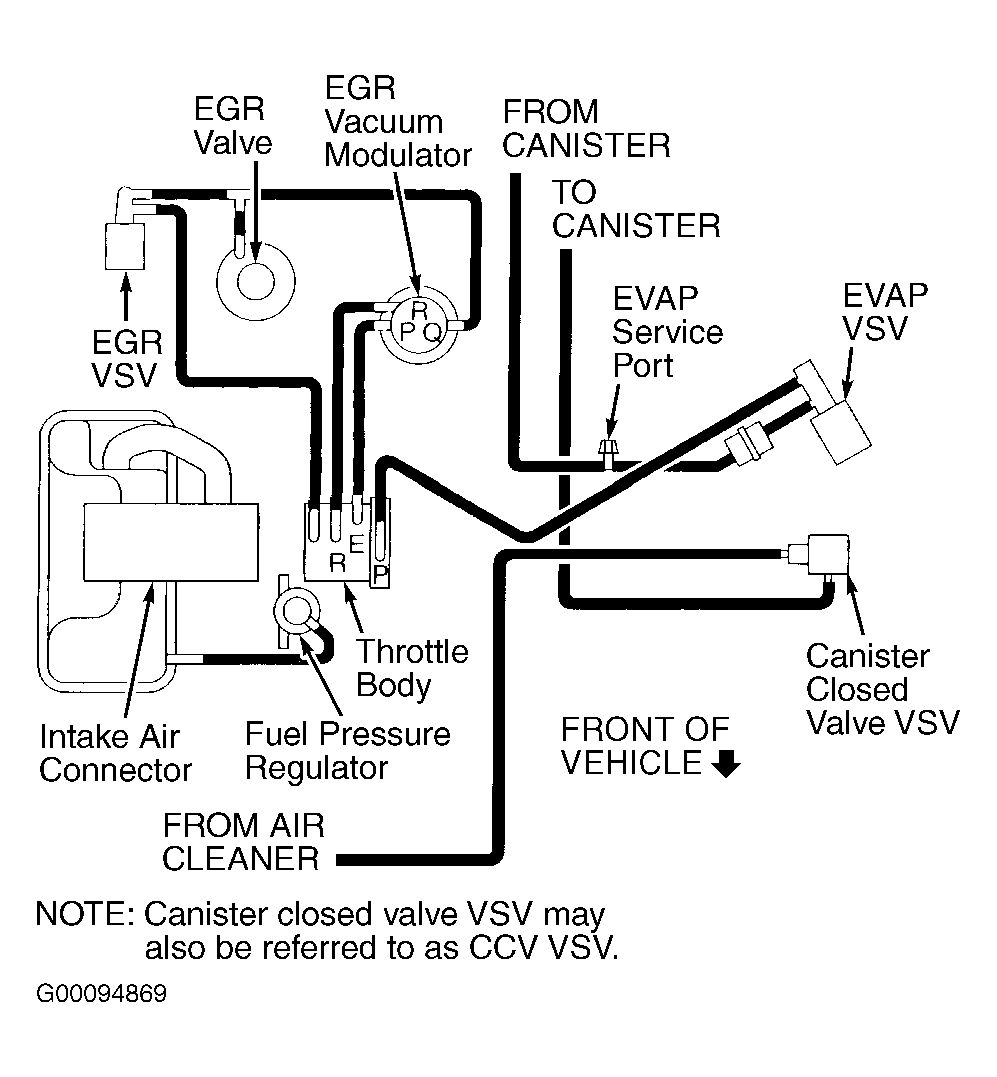

Fig 43: Vacuum Diagram (Tacoma 2.7L 4-Cyl. 3RZ-FE - 1 Of 3)

G00094869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 44: Vacuum Diagram (Tacoma 2.4L 4-Cyl. 2RZ-FE & 2.7L 4-Cyl. 3RZ-FE 4-Cyl. - 2 Of 3)

G00023082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

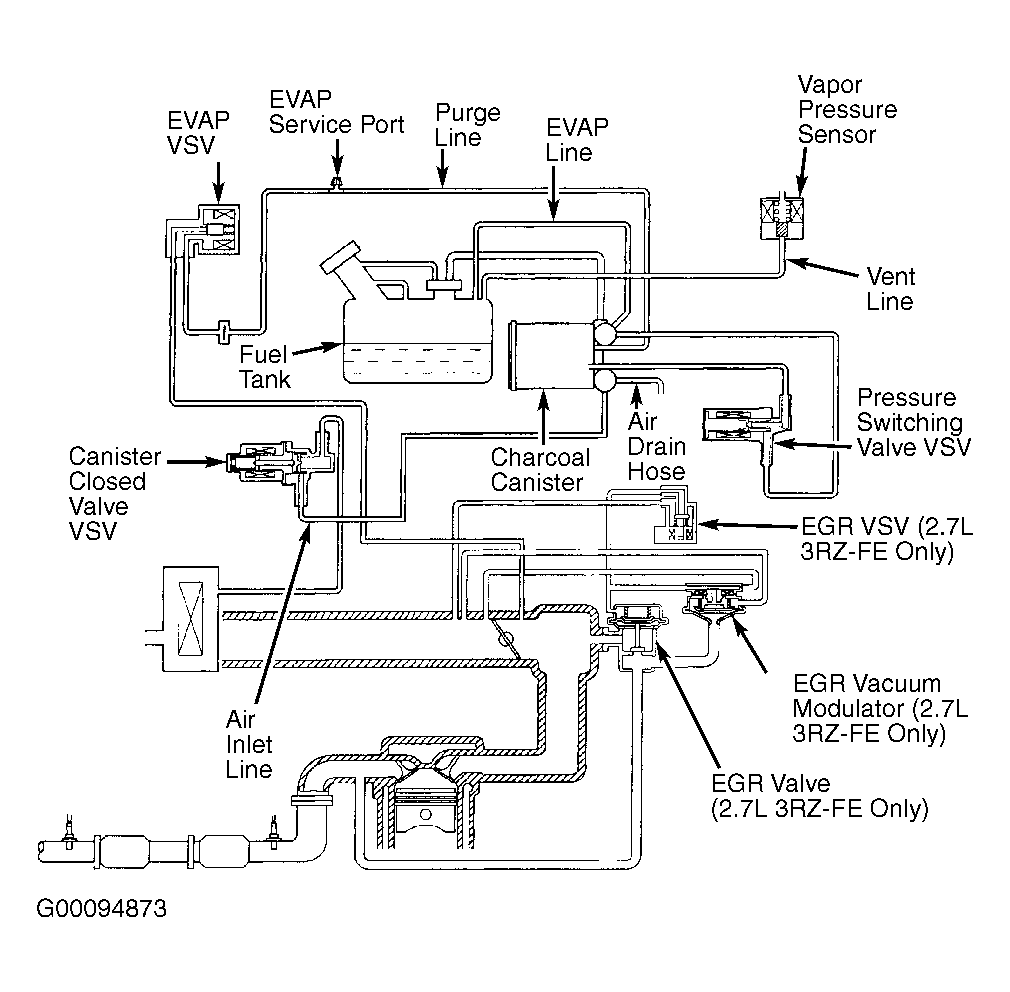

Fig 45: Vacuum Diagram (Tacoma 2.4L 4-Cyl. 2RZ-FE & 2.7L 4-Cyl. 3RZ-FE 4-Cyl. - 3 Of 3)

G00094873

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

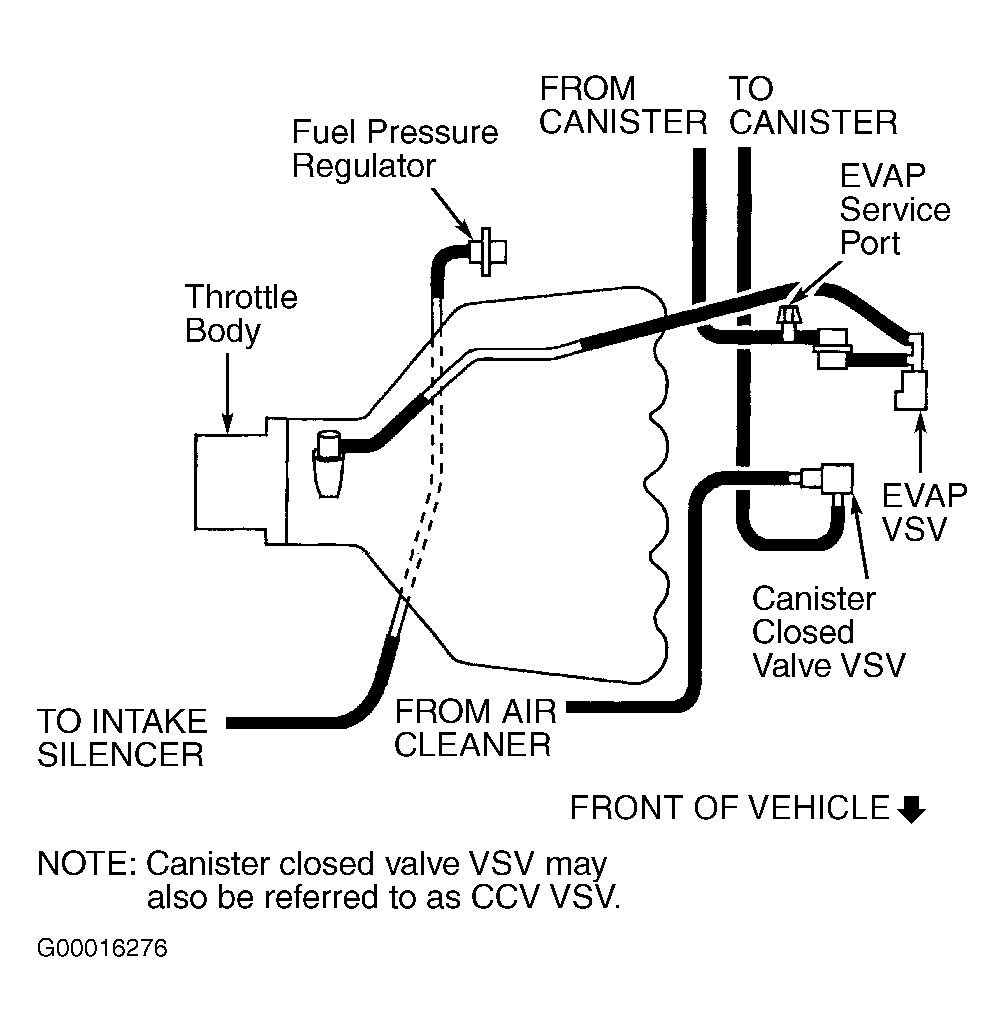

Fig 46: Vacuum Diagram (Tacoma 3.4L V6 - 1 Of 3)

G00016276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 47: Vacuum Diagram (Tacoma 3.4L V6 - 2 Of 3)

G00023055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

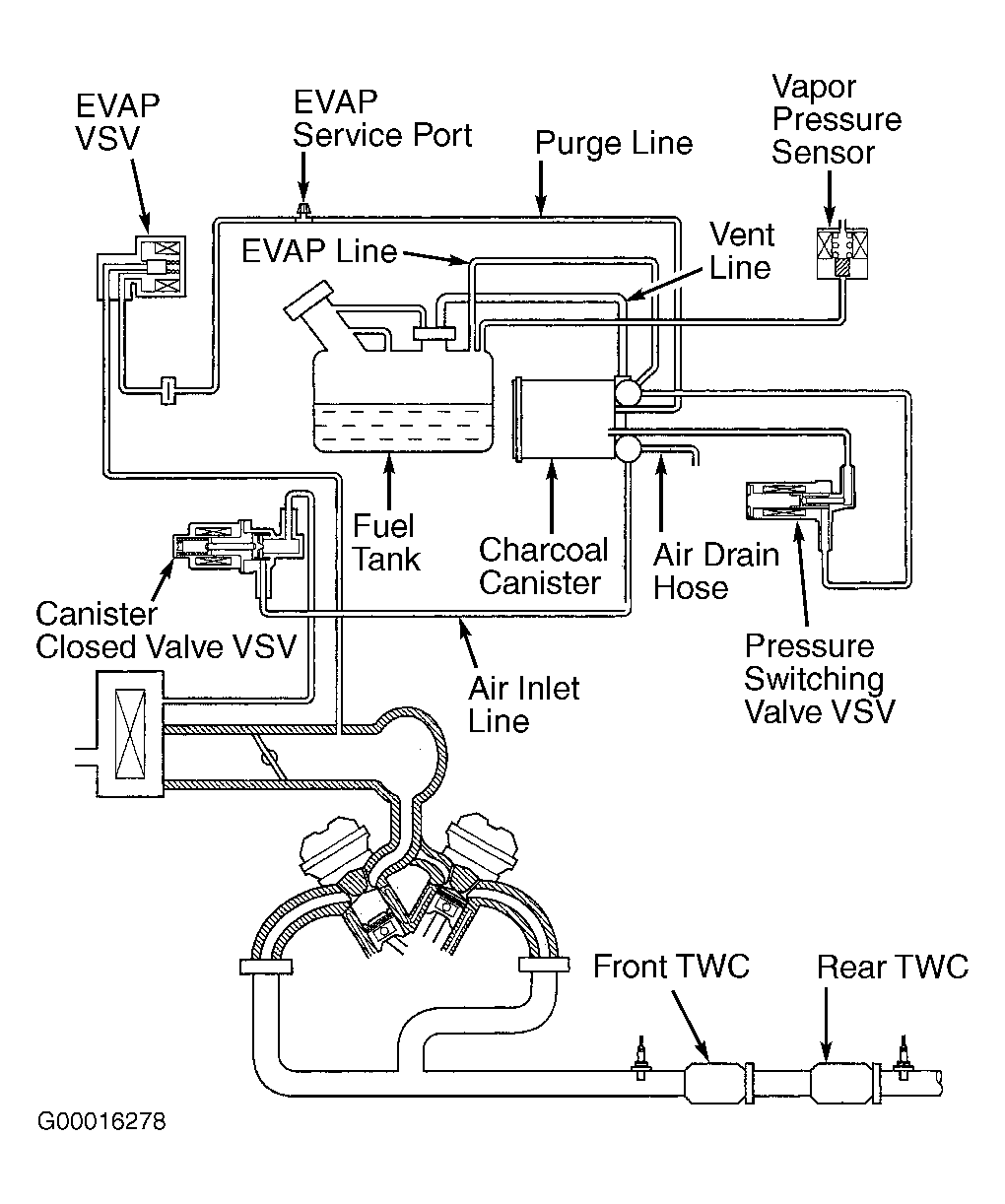

Fig 48: Vacuum Diagram (Tacoma 3.4L V6 - 3 Of 3)

G00016278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

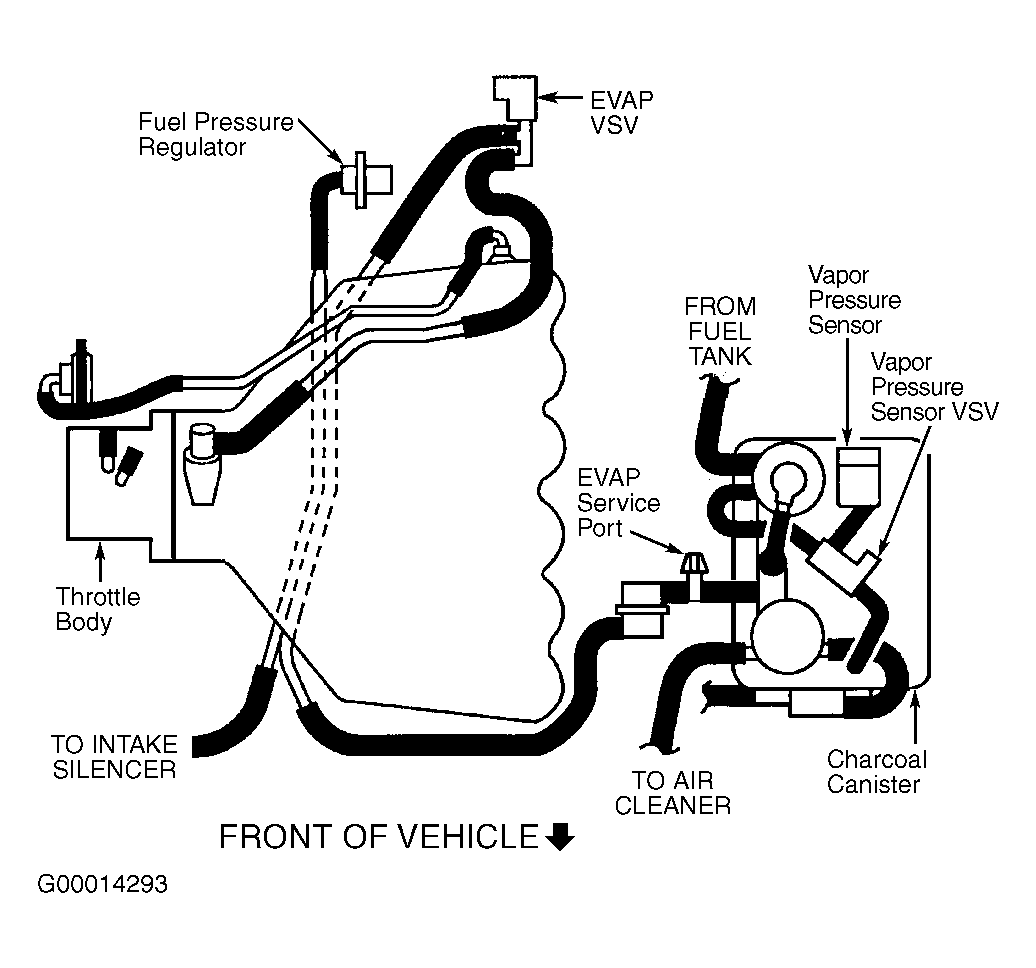

Fig 49: Vacuum Diagram (Tundra 3.4L V6 - 1 Of 3)

G00014293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 50: Vacuum Diagram (Tundra 3.4L V6 - 2 Of 3)

G99C08752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

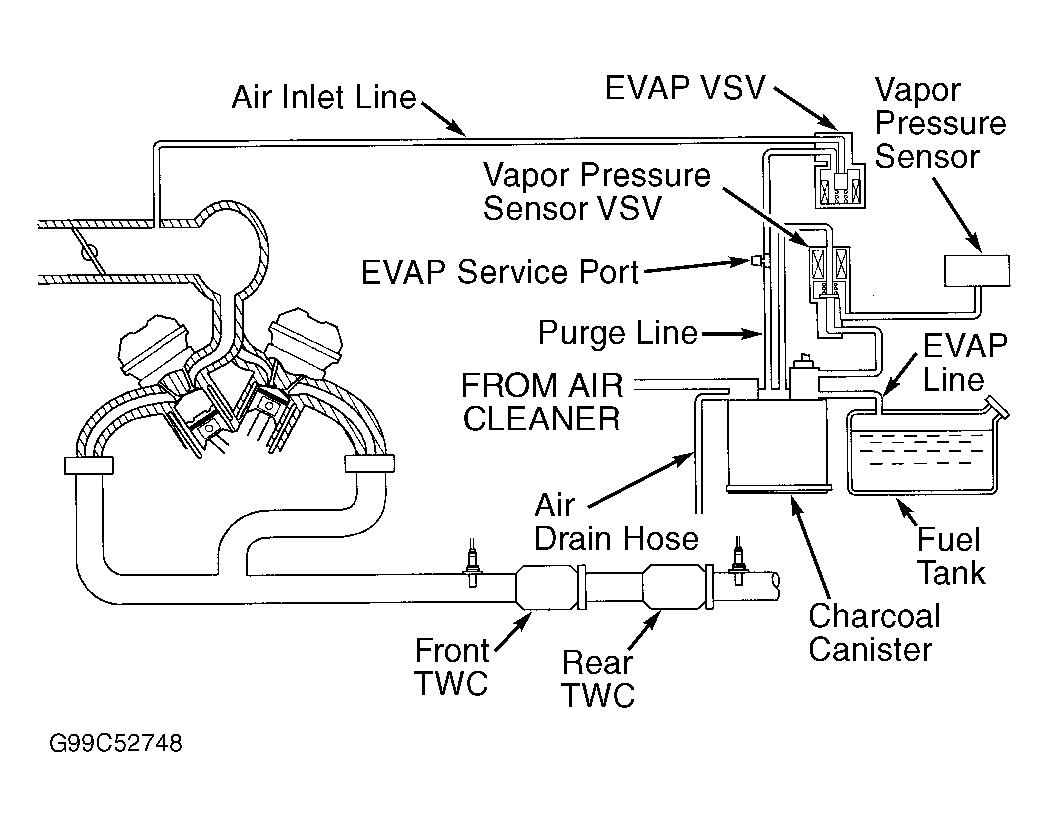

Fig 51: Vacuum Diagram (Tundra 3.4L V6 - 3 Of 3)

G99C52748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

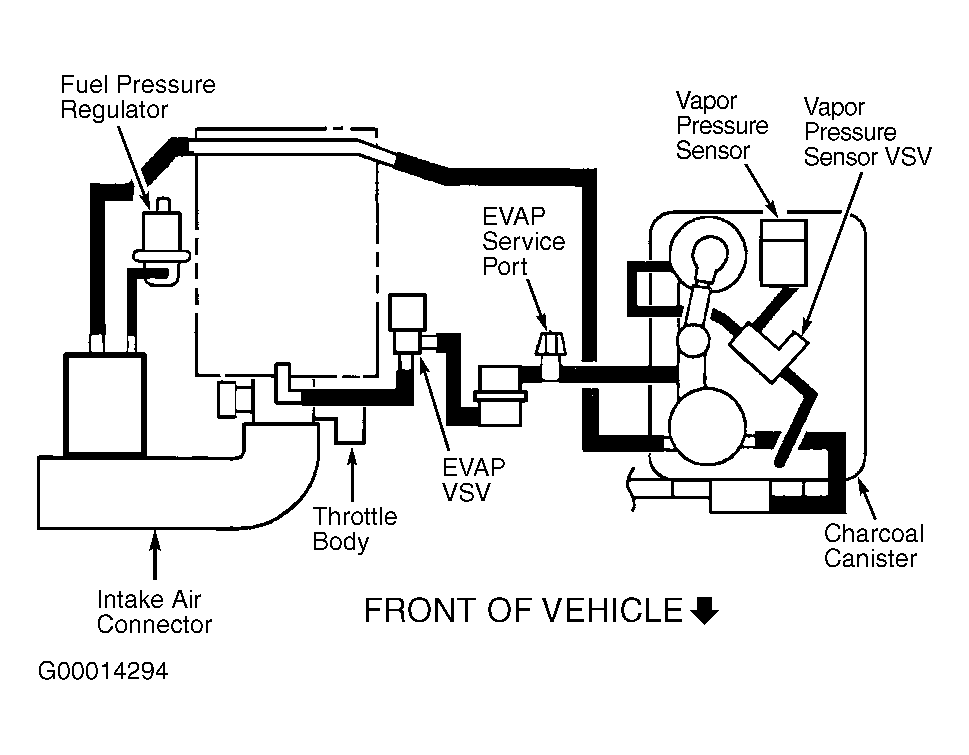

Fig 52: Vacuum Diagram (Tundra 4.7L V8 - 1 Of 3)

G00014294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 53: Vacuum Diagram (Tundra 4.7L V8 - 2 Of 3)

G99E08753

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

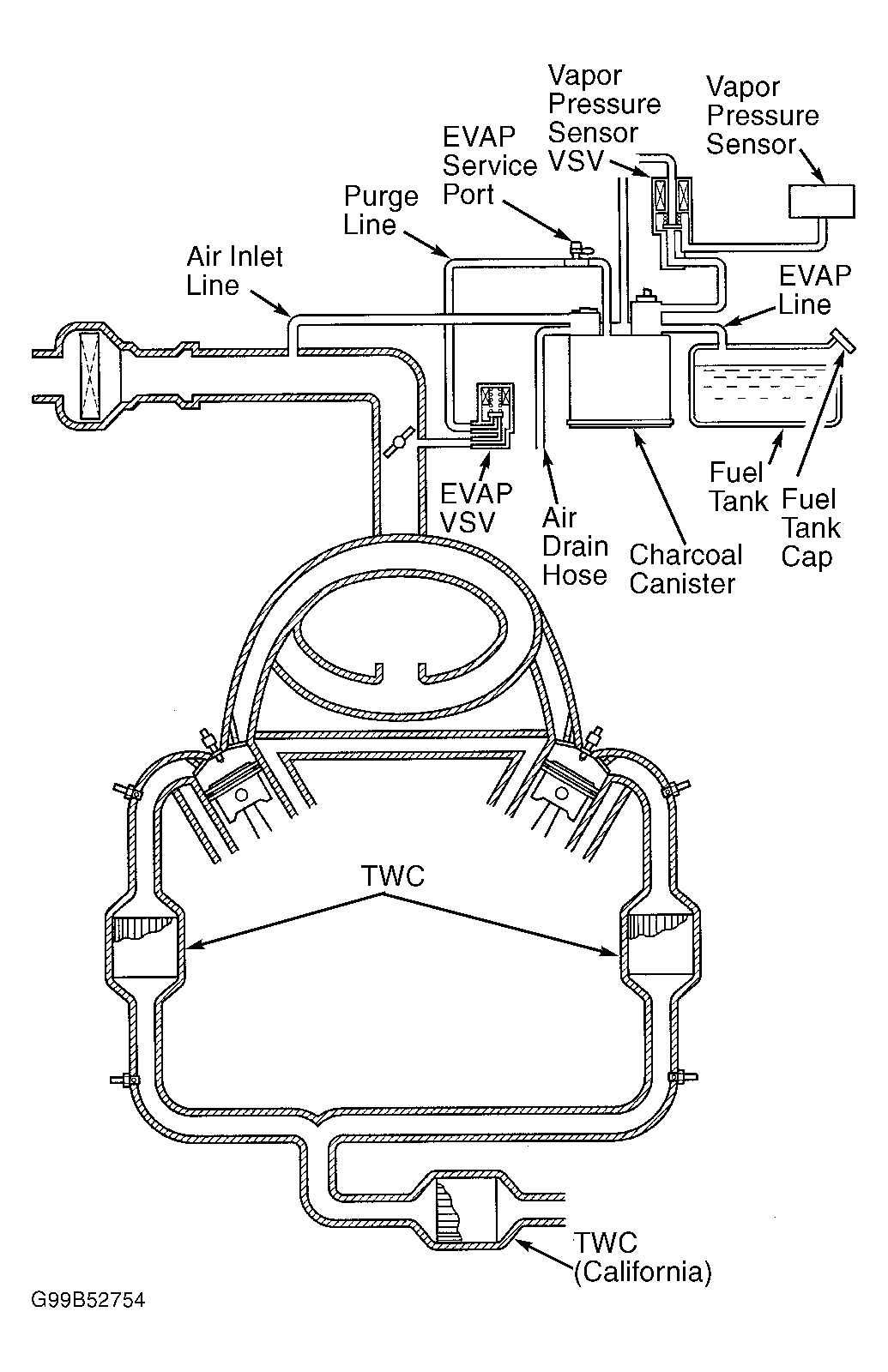

Fig 54: Vacuum Diagram (Tundra 4.7L V8 - 3 Of 3)

G99B52754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 55: Vacuum Diagram (4Runner 3.4L V6 - 1 Of 3)

G00016276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 56: Vacuum Diagram (4Runner 3.4L V6 - 2 Of 3)

G00016277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 57: Vacuum Diagram (4Runner 3.4L V6 - 3 Of 3)

G00016278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
