Interior Light System: Location

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

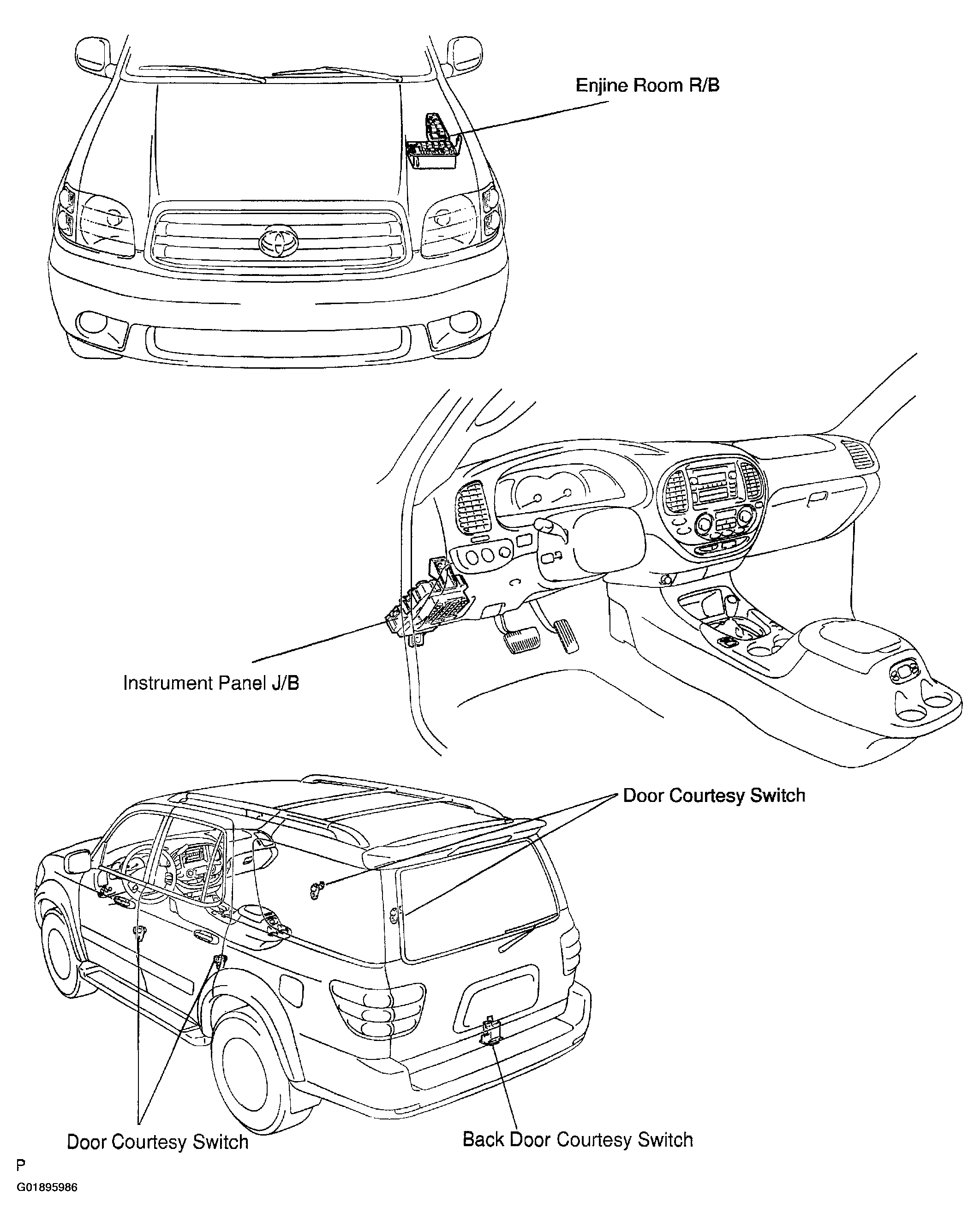

Fig 1: Locating Interior Light System Components (1 Of 2)
G01895986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

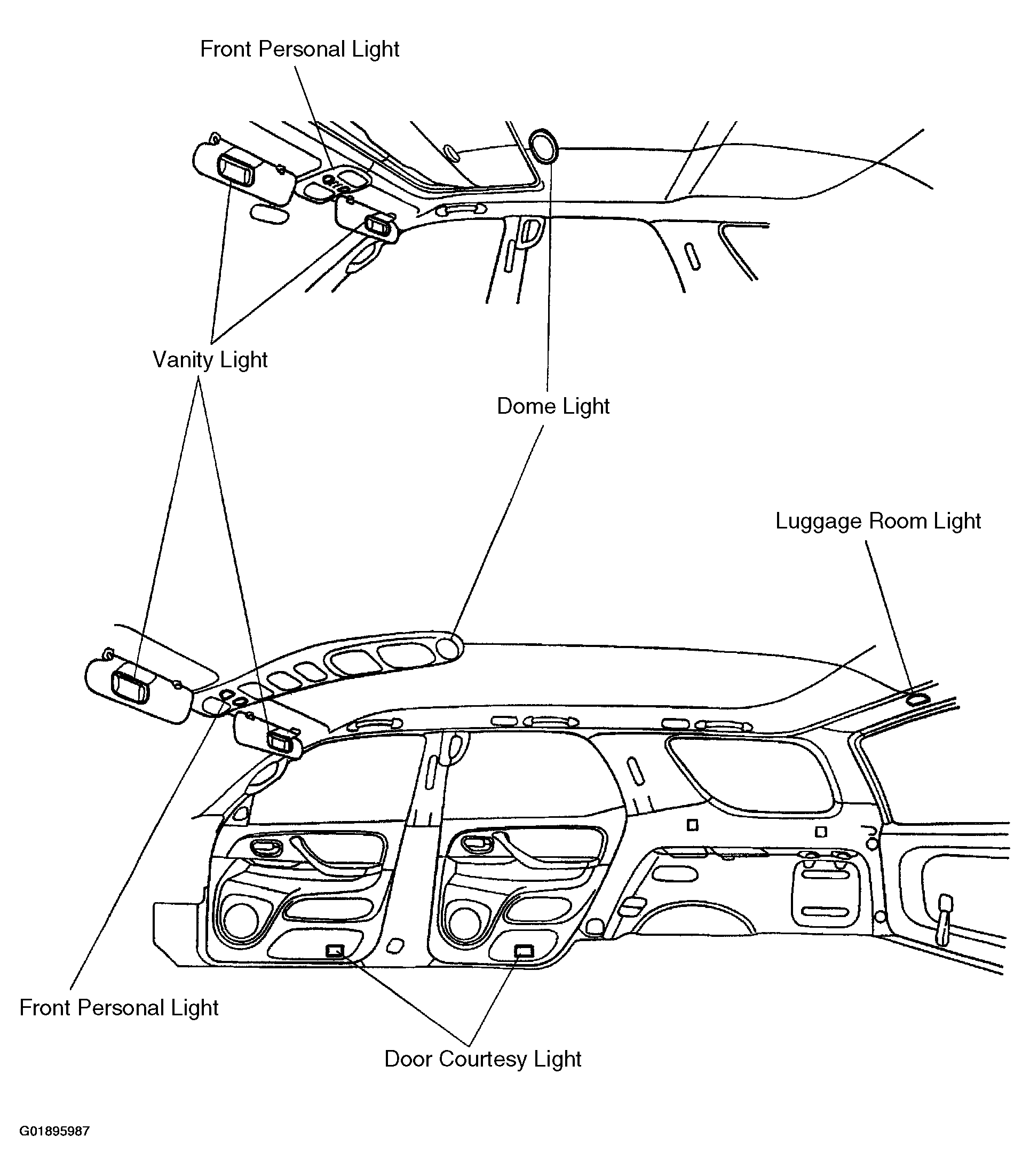

Fig 2: Locating Interior Light System Components (2 Of 2)
G01895987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
