Avalon, Camry, Camry Solara With A/T, Highlander & Sienna

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Remove A/F heater relay. See A/F HEATER RELAY LOCATION table.

A/F HEATER RELAY LOCATION

Application

Location

Avalon & Camry

In Fuse/Relay Box At Driver's Side Front Corner Of Engine Compartment

Camry Solara

In Small Fuse/Relay Box At Driver's Side Front Corner Of Engine Compartment, In Front Of Battery

Highlander

In Fuse/Relay Box At Driver's Side Front Corner Of Engine Compartment, Just In Front Of Strut Tower

Sienna

⁽¹⁾

⁽¹⁾	Located near Engine Control Module (ECM) behind passenger's side of instrument panel. See Fig 1.

Fig 1: Locating A/F Heater Relay (Sienna)

To test A/F heater relay continuity, using ohmmeter, check for continuity and no continuity between specified terminals on A/F heater relay. See Fig 2 and Fig 3 .
To test A/F heater relay operation, apply battery voltage and ground to A/F heater relay and use ohmmeter to check for continuity between specified terminals on A/F heater relay. See Fig 2 and Fig 3 . Replace A/F heater relay if defective.

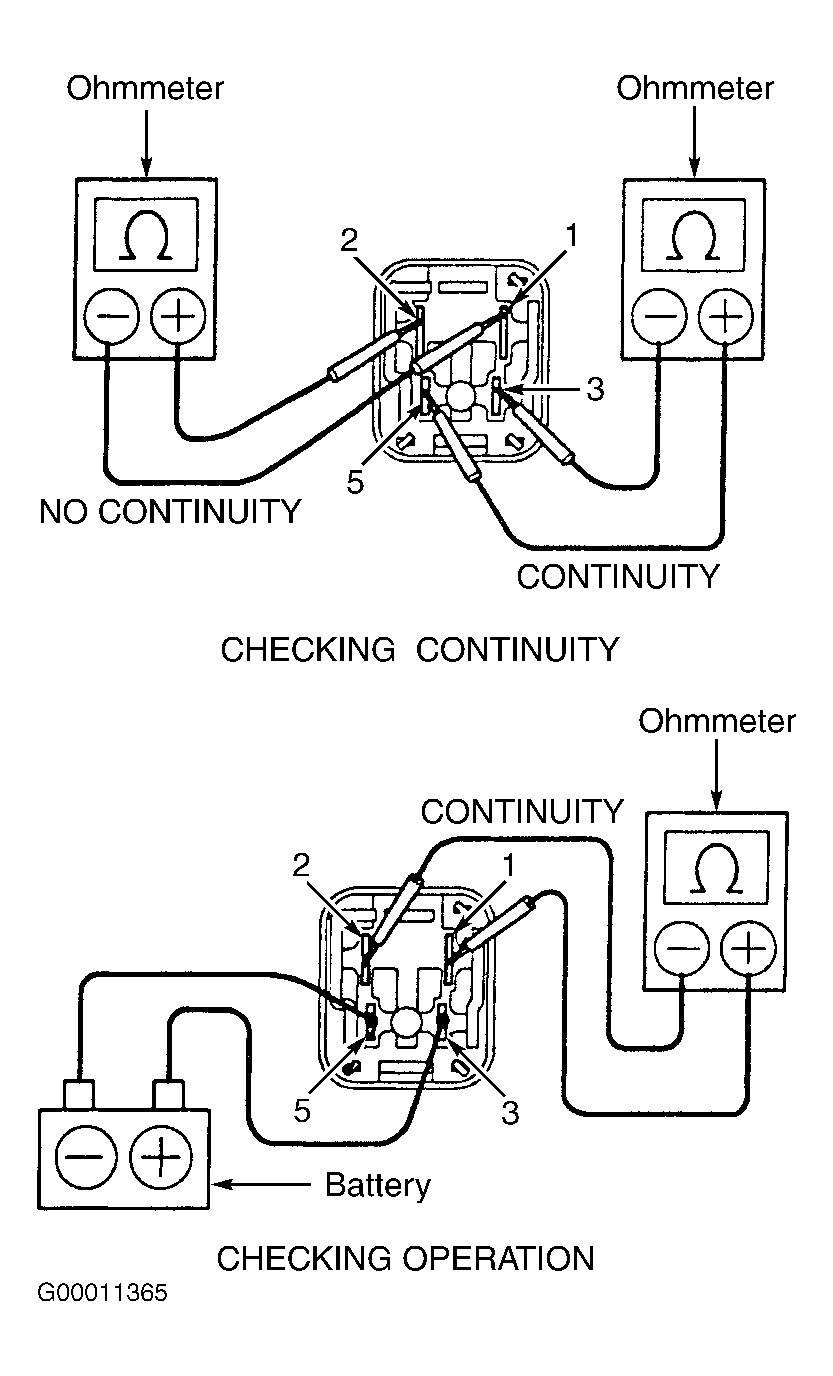

Fig 2: Testing A/F Heater Relay (Avalon, Camry, Camry Solara With A/T & Highlander)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Testing A/F Heater Relay (Sienna)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
