Section 276 (Charging System - Generators & Regulators - 2UZ-FE): Generator: Removal

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Remove Generator Drive Belt
Loosen the belt tension by turning the belt tensioner counterclockwise, and remove the drive belt.

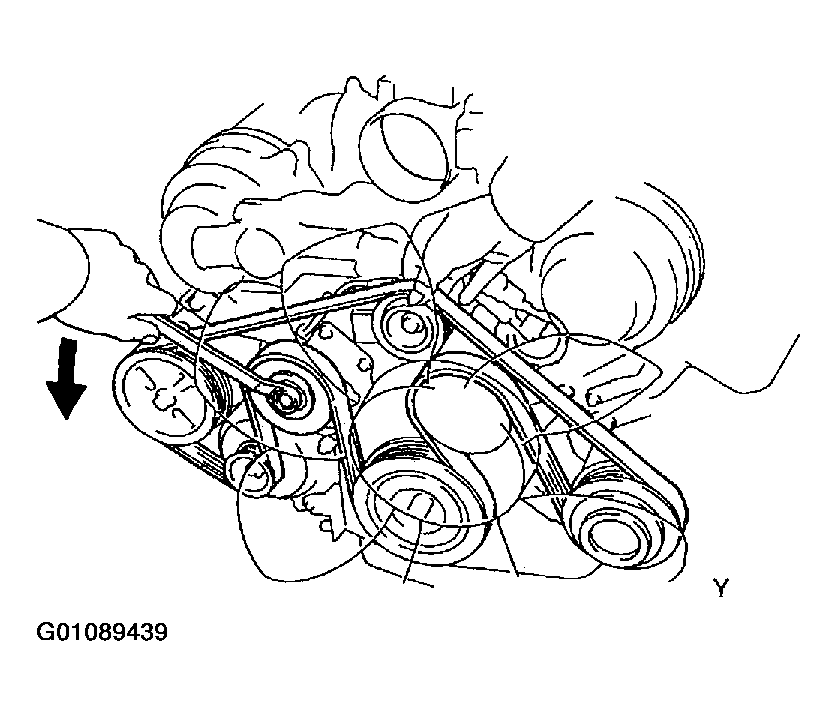

Fig 1: Loosening Belt Tension & Removing Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: The pulley bolt for the belt tensioner has a left - hand thread.
Remove PS Vane Pump From Engine.
Remove Engine Under Cover
Remove No.2 Fan Shroud
Remove the 2 clips and No.2 fan shroud.
Remove Generator
1. Disconnect the generator connector.
2. Remove the cap and nut, and disconnect the generator wire.
3. Disconnect the generator wire clamp from the cord clip on the generator.
4. Remove the bolt, nut and generator.

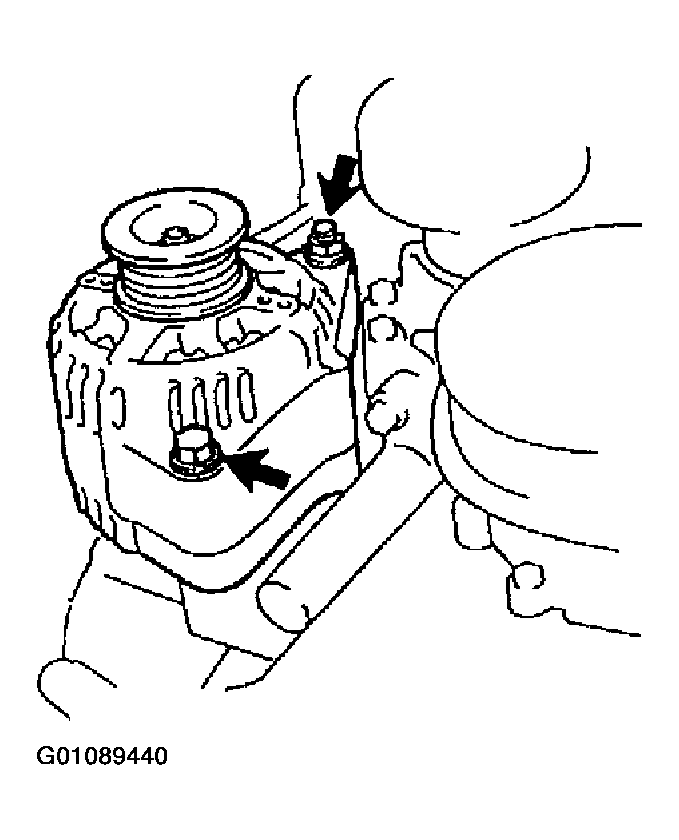

  Fig 2: Displaying Generator Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
