Section 276 (Charging System - Generators & Regulators - 2UZ-FE): Generator: Installation

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Install Generator
1. Install the generator with the bolt and nut.
  1. Torque:
  2. 39 N.m (400 kg.cm, 29 ft.lbf)
2. Connect the generator connector.
3. Connect the generator wire with the nut and rubber.
4. Install the cap.
5. Install the generator wire clamp to the cord clip on the generator.

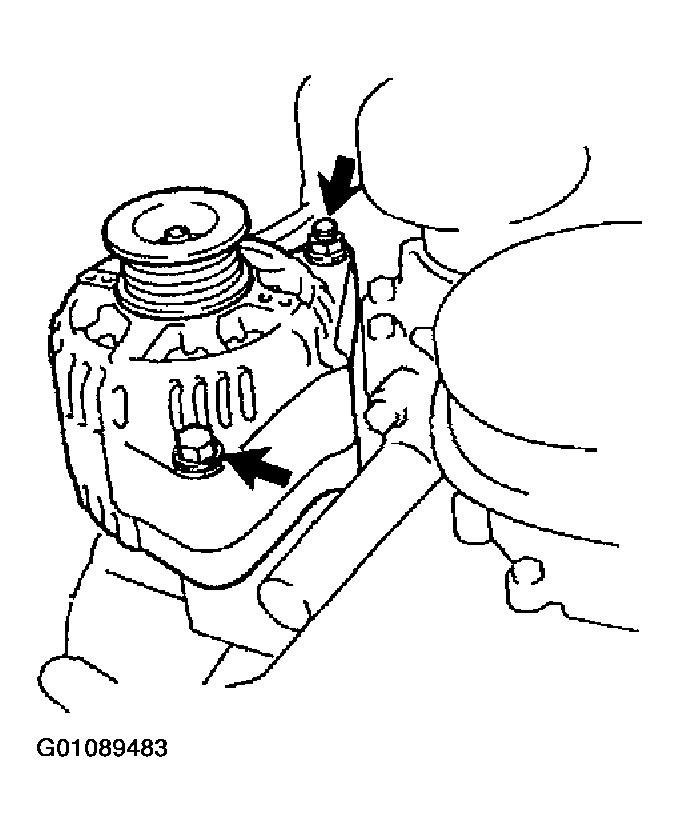

Fig 1: Displaying Generator Installation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install PS Vane Pump
Install Drive Belt
Install the belt by turning the belt tensioner counterclockwise.

NOTE: The pulley bolt for the belt tensioner has a left - hand thread.

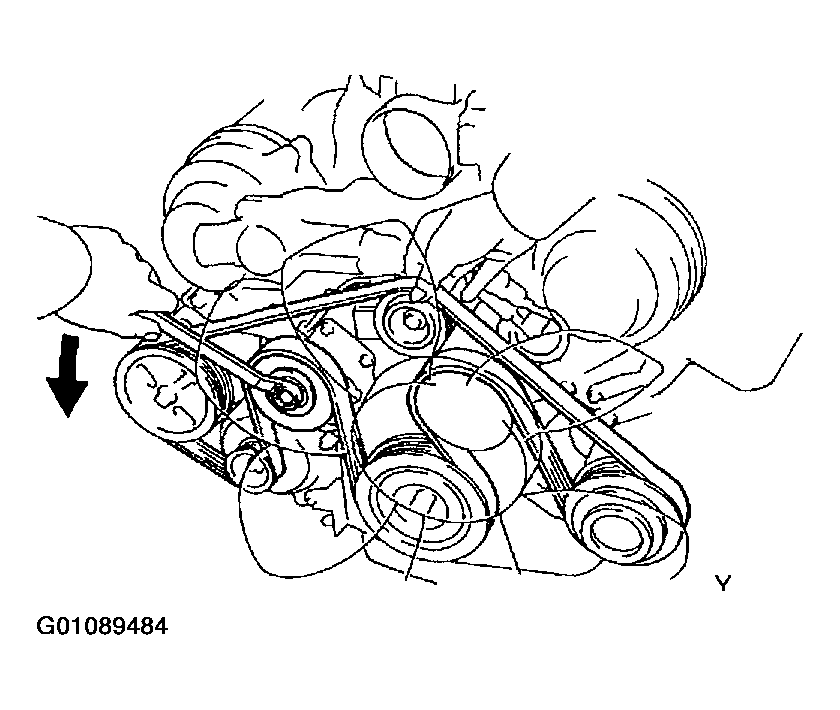

Fig 2: Installing Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Perform On-Vehicle Inspection. See ON-VEHICLE INSPECTION
Install No.2 Fan Shroud
Install the No.2 fan shroud with the 2 clips.
Install Engine Under Cover
