  1. Remove Rear End Cover
    1. Remove the nut and terminal insulator.
    2. Remove the bolt 3 nuts, plate terminal and end cover.

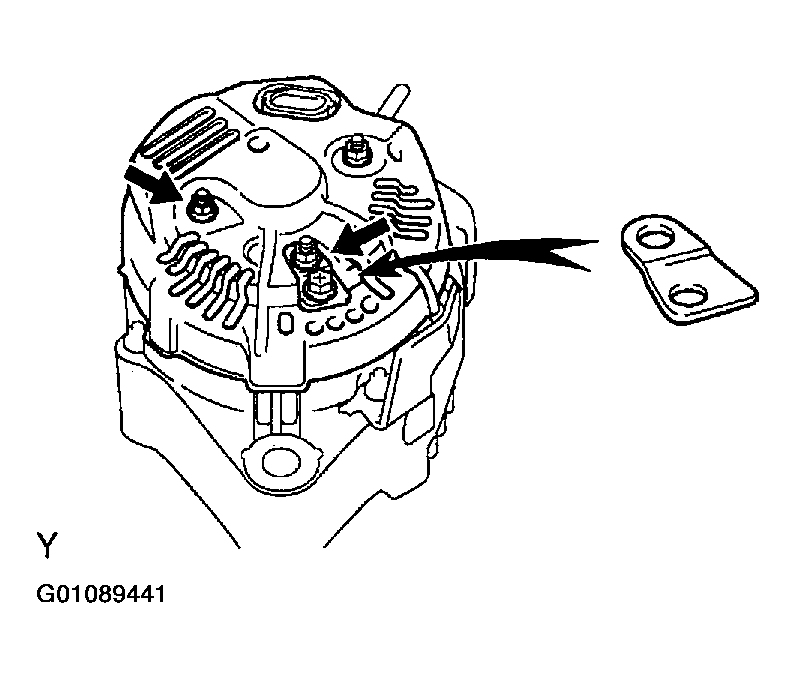

      Fig 1: Removing Plate Terminal & End Terminal
      G01089441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove Brush Holder
    1. 100 A type: Remove the brush holder cover from the brush holder.
    2. Remove the 2 screws and brush holder.
    3. Remove the seal plate from the rectifier end frame.

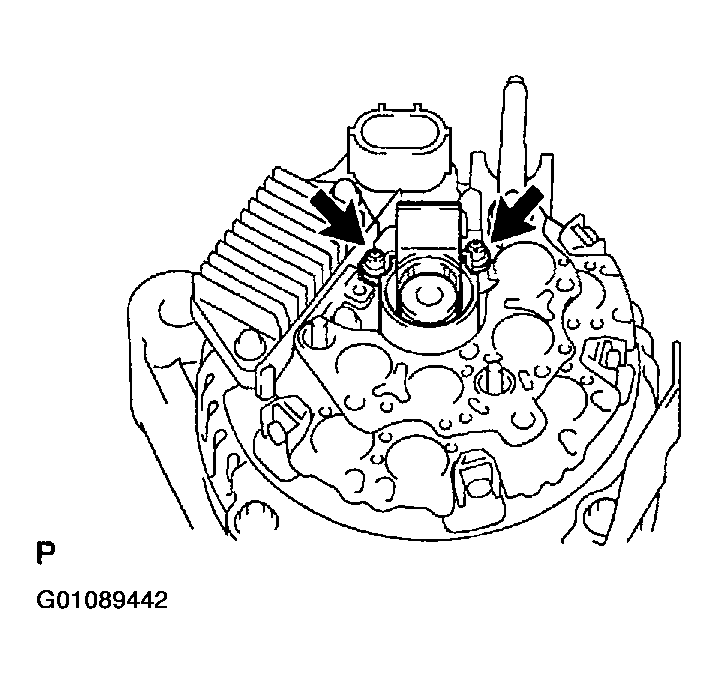

      Fig 2: Removing Screws & Brush Holder
      G01089442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove Voltage Regulator

    Remove the 3 screws and voltage regulator.

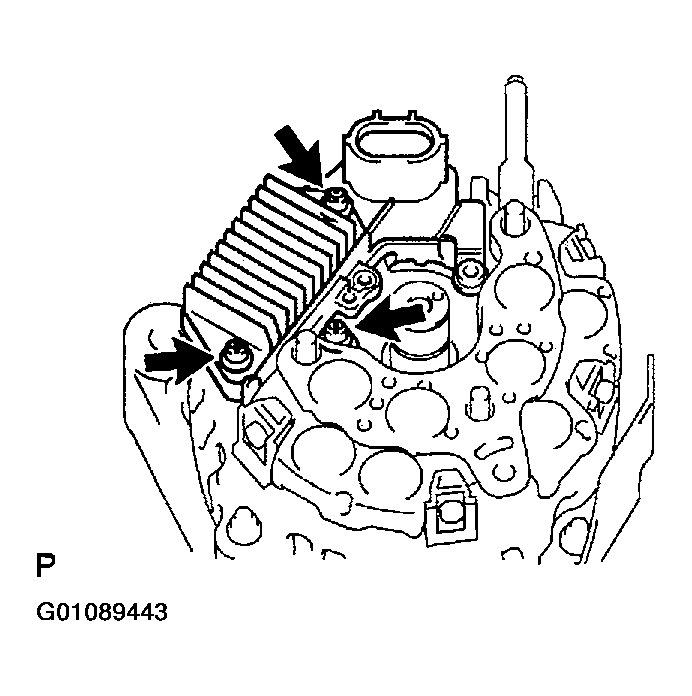

    Fig 3: Removing Voltage Regulator
    G01089443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Remove Rectifier Holder
    1. Remove the nut and cord clip.
      Fig 4: Removing Nut & Cord Clip
      G01089444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws and rectifier holder.
    3. Remove the 4 rubber insulators.
      Fig 5: Removing Screws & Rectifier Holder
      G01089445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Remove Pulley
    1. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.

      SST 09820-63011

      1. Torque:
      2. 39 N.m (400 kgf.cm, 29 ft.lbf)

    2. Check that SST (A) is secured to the rotor shaft.

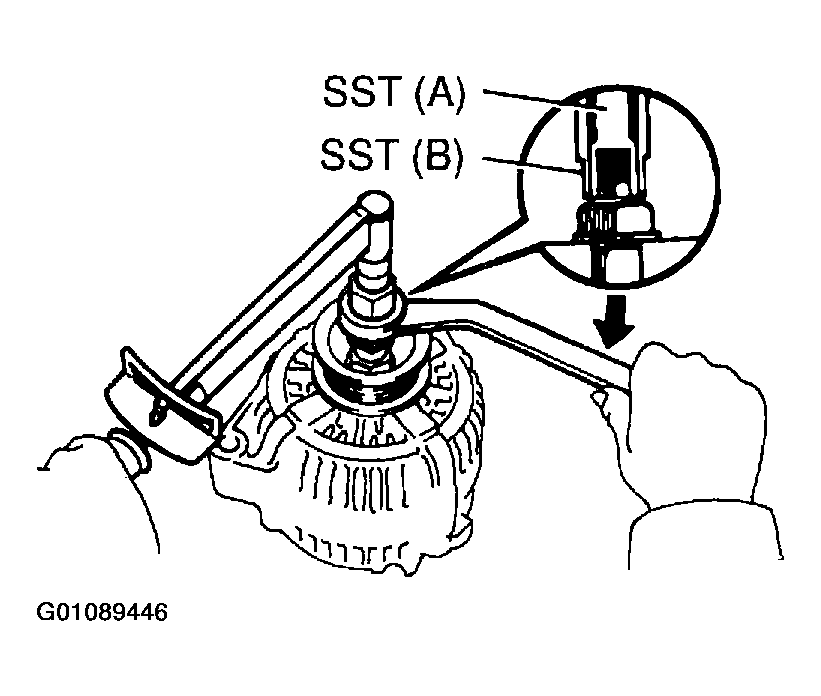

      Fig 6: Using SST (A) Torque Wrench Tighten SST (B)
      G01089446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Mount SST (C) in a vise.
    4. Insert SST (B) into SST (C) and attach the pulley nut to SST (C).
      Fig 7: Inserting SST (B) Into SST (C)
      G01089447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. To loosen the pulley nut, turn SST (A) in the direction shown in the illustration.
      Fig 8: Loosening Pulley Nut
      G01089448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: To prevent damage to the rotor shaft, do not loosen the pulley nut more than one-half of a turn.
    6. Remove the generator from SST (C).
    7. Turn SST (B), and remove SST (A and B).
    8. Remove the pulley nut and pulley.
  6. Remove Rectifier End Frame
    1. Remove the 3 nuts.

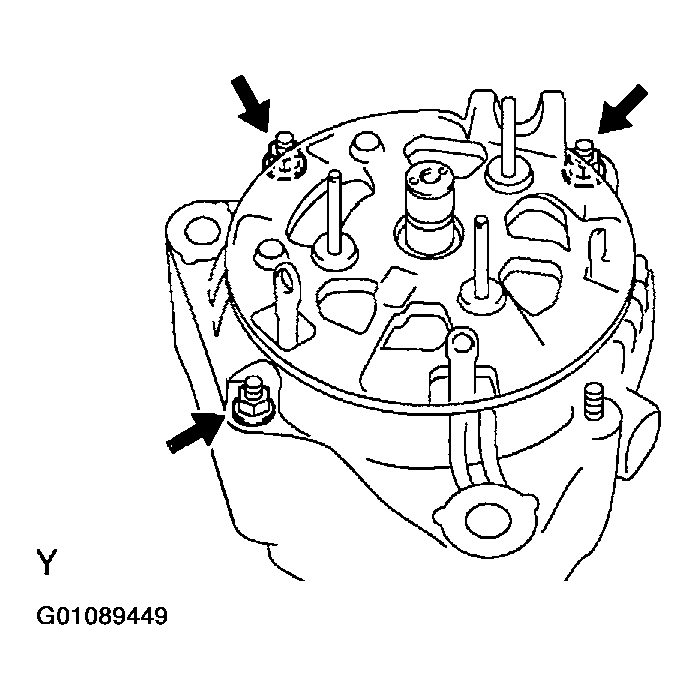

      Fig 9: Displaying Rectifier End Frame For Removal
      G01089449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the rectifier end frame. SST 09286-46011
    3. Remove the generator washer from the rectifier end frame.
  7. Remove Rotor From Drive End Frame
    Fig 10: Removing Rectifier End Frame
    G01089450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
