Repair Procedures (Steering Wheel Off Center)

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This is the repair procedure for steering off center.
  1. Inspect Steering Wheel Off Center.
    1. Apply masking tape on the top center of the steering wheel and steering column upper cover.

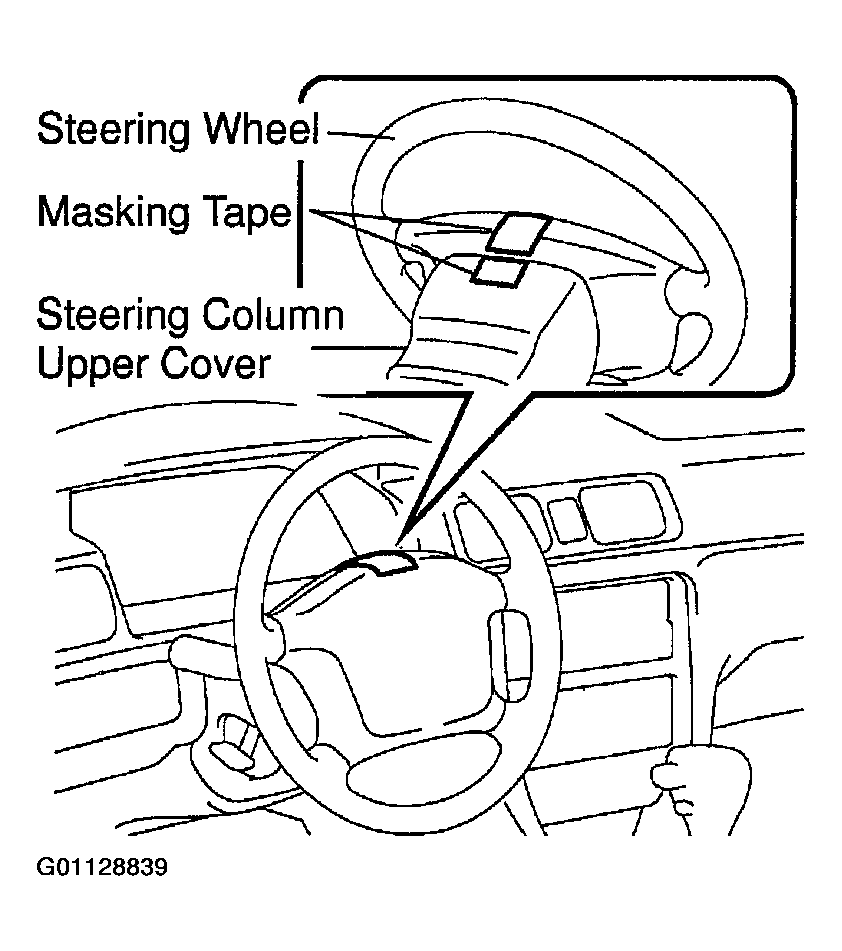

      Fig 1: Identifying Masking Tape Applications Points
      G01128839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Drive the vehicle in a straight line for 100 meters at a constant speed of 35 mph (56 km/h), and hold the steering wheel to maintain the course.
    3. Draw a line on the masking tape as shown in the illustration.

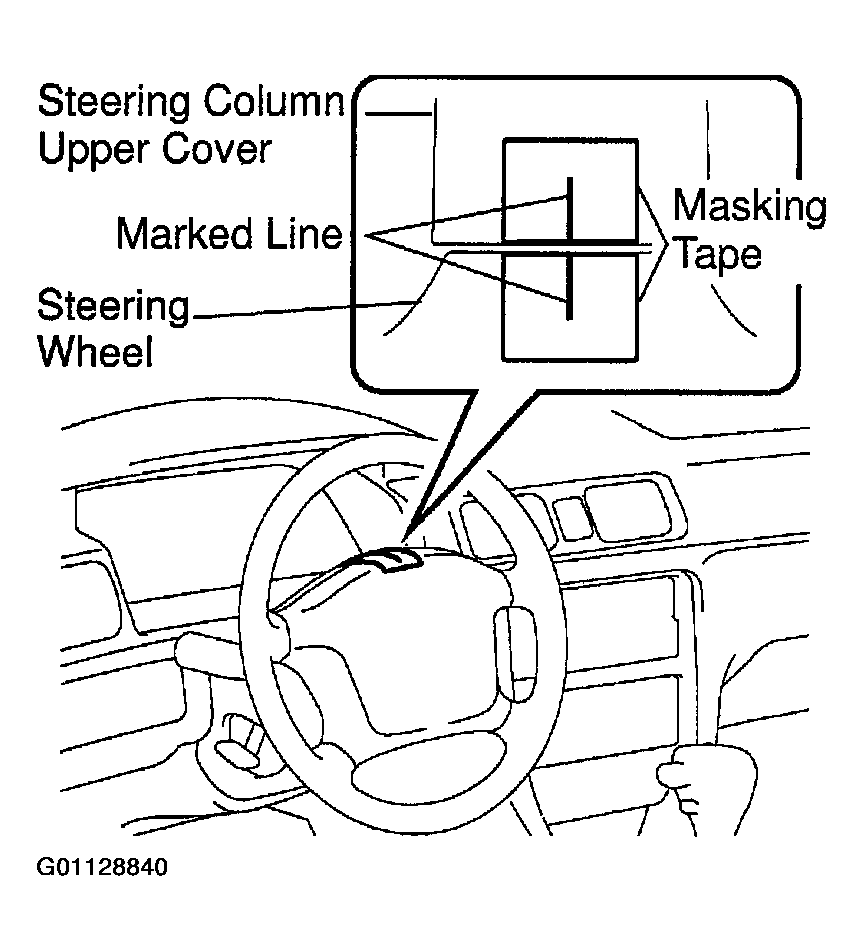

      Fig 2: Marking Applied Masking Tape
      G01128840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. NOTE: Refer to the upper surface of the steering wheel, steering spoke and SRS airbag line for the straight position.
    4. Turn the steering wheel to its straight position.
    5. Draw a new line on the masking tape of the steering wheel as shown in the illustration.

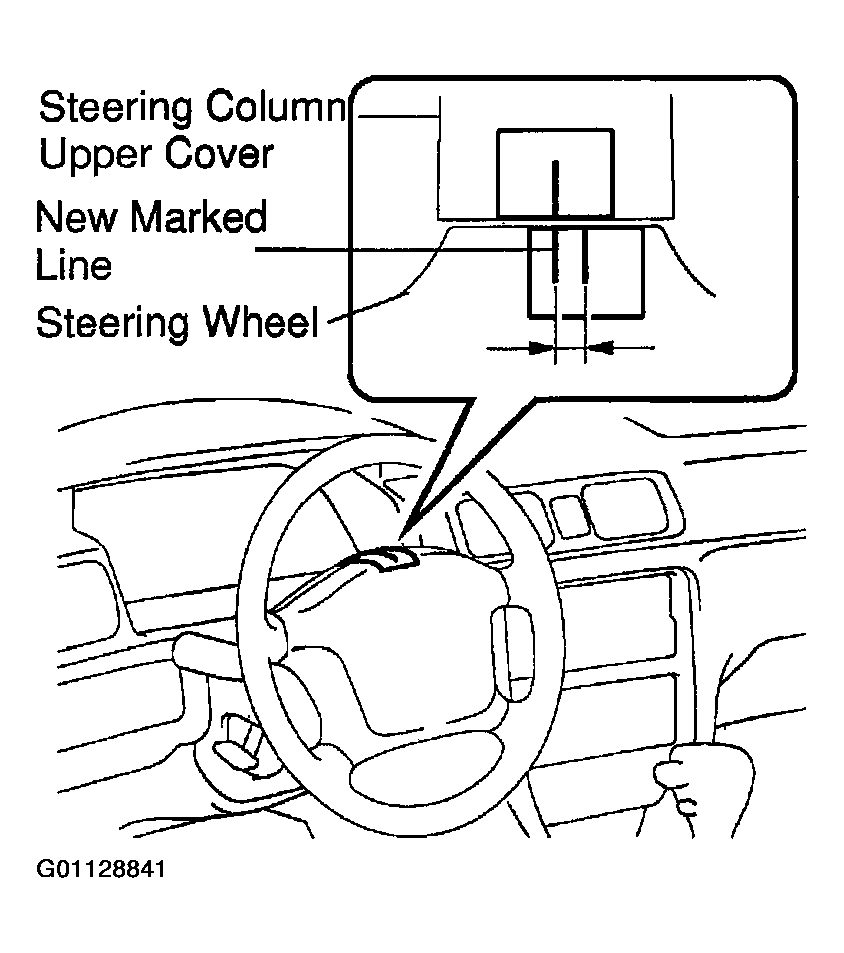

      Fig 3: Marking Angular Calculation Line
      G01128841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Measure the distance between the 2 lines on the masking tape of the steering wheel.
      7. NOTE: Make a note of the steering angle.
    7. Convert the measured distance to steering angle.

      Measured distance 1 mm (0.04 in.) = Steering angle approximately 1 deg.  .

  2. Adjust Steering Angle.
    1. Draw a line on the RH and LH tie rod and rack ends where it can easily be seen.
      Fig 4: Marking Tie Rod & Steering Rack Ends
      G01128842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. NOTE:
      • Measure the RH side and LH side.
      • Make a note of the measured values.
    2. Using a paper gauge, measure the distance from RH and LH tie rod ends to the rack end screws.
    3. Remove the RH and LH boot clips from the rack boots.
      Fig 5: Locating Boot Clip and Lock Nut
      G01128843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Loosen the RH and LH lock nuts.
    5. Turn the RH and LH rack end by the same amount (but in different directions) according to the steering angle.

      1 turn 360 deg. of rack end (1.5 mm (0.059 in.) horizontal movement) = 12 deg. of steering angle  .

      6. NOTE: Make sure that the difference in length between RH and LH tie rod ends and rack end screws are within 1.5 mm (0.059 in.).
    6. Tighten the RH and LH lock nuts.

      Torque: 55 N.m (560 kgf.cm, 41 ft.lbf)  .

    7. Install the RH and LH boot clips.
