Vehicle Speed Sensor: Tacoma
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

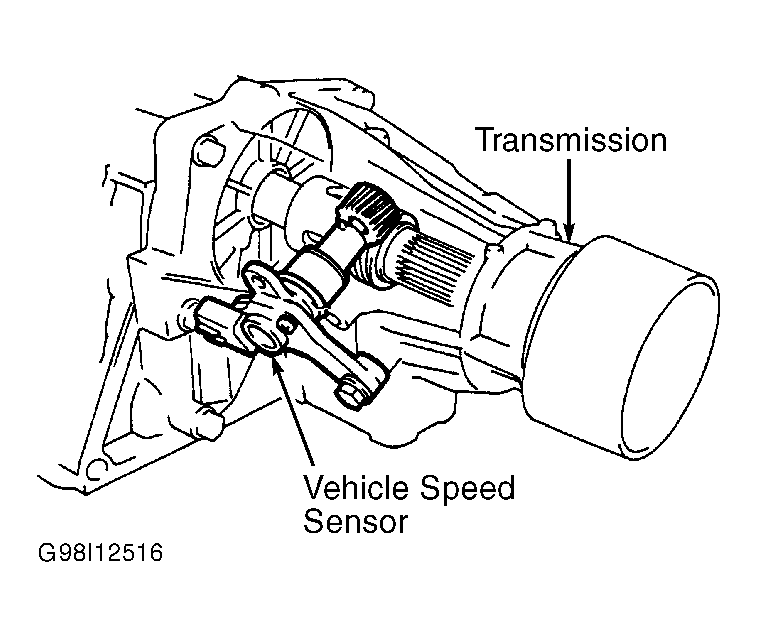

- Vehicle speed sensor is mounted near rear of transmission or transfer case and contains a 3-pin electrical connector. See Fig 1. Electrical connector contains Blue, Green/Red and Pink wires.
- Remove vehicle speed sensor. Connect voltmeter positive lead to terminal No. 3 (outer terminal) and negative lead to terminal No. 2 (center terminal) on vehicle speed sensor. See Figure, Fig 2 and Fig 3 .
- Using jumper wires, connect positive battery terminal to terminal No. 1 (outer terminal) and negative battery terminal to terminal No. 2 (center terminal) on vehicle speed sensor. See Figure, Fig 2 and Fig 3 .
- While rotating vehicle speed sensor shaft, ensure voltage changes from zero volts to at least 11 volts. Voltage should change 4 times per revolution of shaft. Replace vehicle speed sensor if voltage does not change as specified. See VEHICLE SPEED SENSOR
under ENGINE SENSORS & SWITCHES in REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
