Heated Oxygen Sensor: RAV4
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- Two heated Air/Fuel (A/F) sensors are used. Heated A/F sensors are mounted on exhaust manifold above catalytic converter. For testing of A/F sensors, see AIR/FUEL SENSOR . Two heated oxygen sensors are also used. Heated oxygen sensors are mounted on exhaust manifold below catalytic converters. Heated oxygen sensor for cylinders No. 1 and 4 is referred to as bank No. 1 sensor No. 2. Heated oxygen sensor for cylinders No. 2 and 3 is referred to as bank No. 2 sensor No. 2.

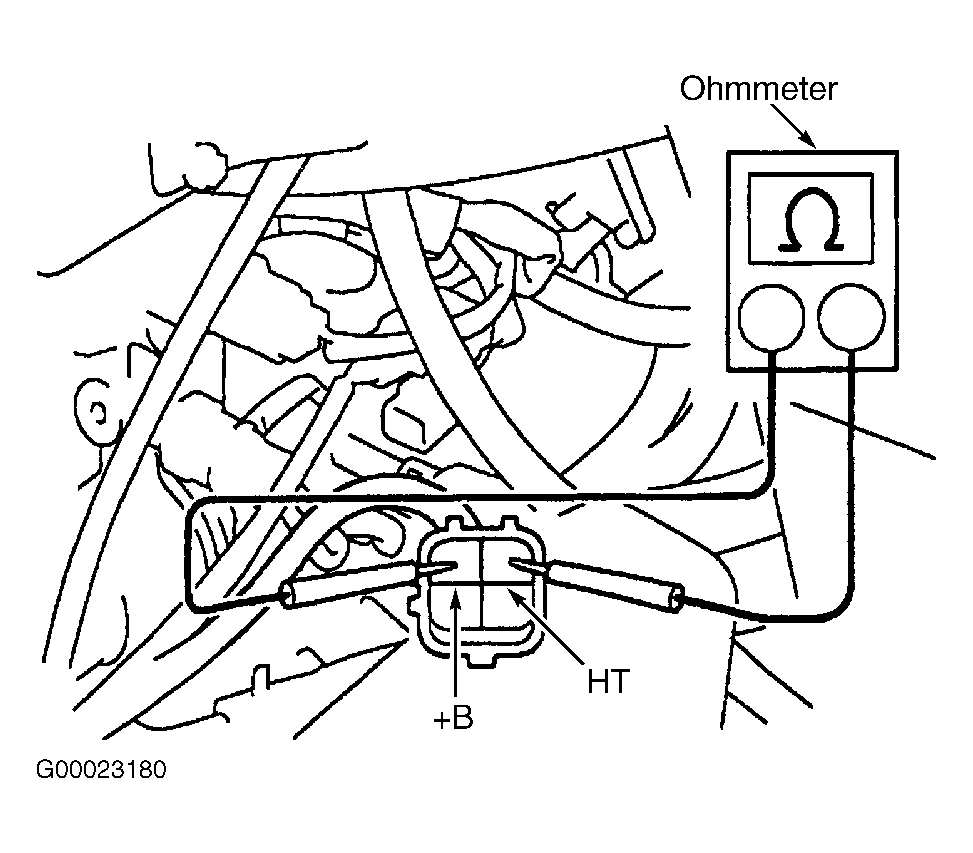

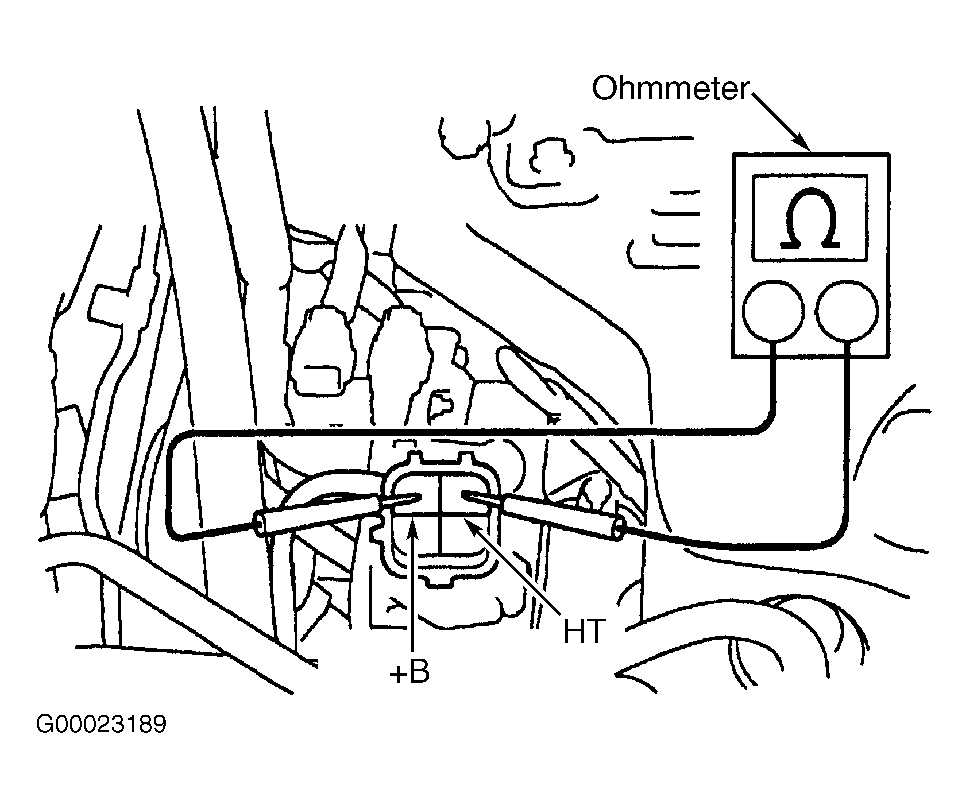

- To test heater resistance on heated oxygen sensor, disconnect electrical connector for heated oxygen sensor. See Fig 1 and Fig 2 . Using ohmmeter, check resistance between +B and HT terminals on electrical connector. See Fig 1 and Fig 2 . Replace heated oxygen sensor if resistance is not 11-16 ohms at 68°F (20°C) and 23-32 ohms at 1472°F (800°C). See HEATED OXYGEN SENSOR under ENGINE SENSORS & SWITCHES in REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.
- If problem exists in either heated oxygen sensor, heater or wiring circuit, a Diagnostic Trouble Code (DTC) may be stored in Engine Control Module (ECM). See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM in appropriate SELF-DIAGNOSTICS article for retrieving of DTCs.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
