Heated Oxygen Sensor: Celica
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- Two heated oxygen sensors are used. One heated oxygen sensor is mounted on exhaust pipe in front of front catalytic converter. This heated oxygen sensor is referred to as bank No. 1 sensor No. 1, or front oxygen sensor. Another heated oxygen sensor is mounted on exhaust pipe behind catalytic converter. This heated oxygen sensor is referred to as bank No. 1 sensor No. 2, or rear oxygen sensor.
- To test heater resistance on heated oxygen sensor, disconnect electrical connector for appropriate heated oxygen sensor. Electrical connector for bank No. 1 sensor No. 1 is a 4-pin electrical connector located near front of center console. See Fig 1. Electrical connector for bank No. 1 sensor No. 2 is a Gray 4-pin electrical connector located below passenger's side front seat and carpet, near center console. See Fig 2.

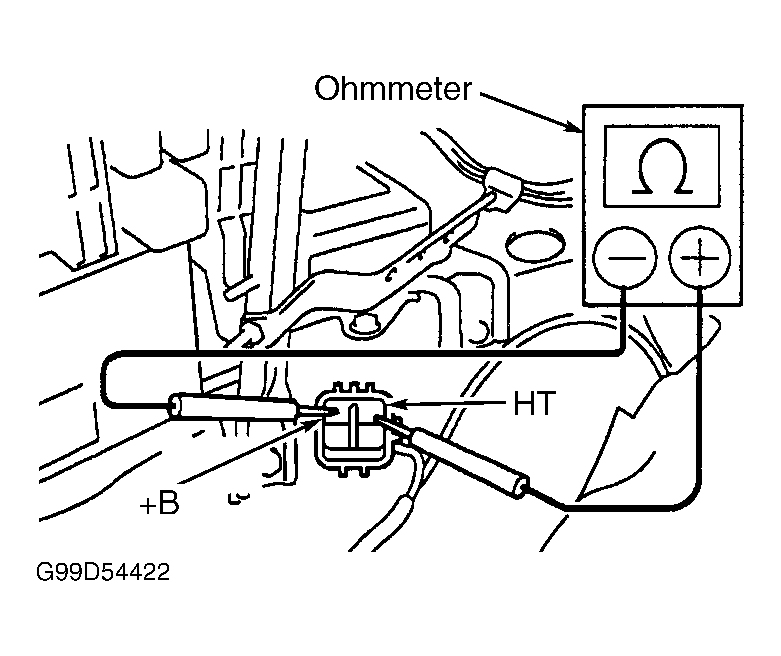

- Using ohmmeter, check resistance between +B and HT terminals on electrical connector. See Fig 1 and Fig 2 . Replace heated oxygen sensor if resistance is not 11-16 ohms at 68°F (20°C). See HEATED OXYGEN SENSOR under ENGINE SENSORS & SWITCHES in REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.
- If problem exists with either heated oxygen sensor, heater or wiring circuit, a Diagnostic Trouble Code (DTC) may be stored in Engine Control Module (ECM). See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM in appropriate SELF-DIAGNOSTICS article for retrieving of DTCs.
