Camry & Camry Solara
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

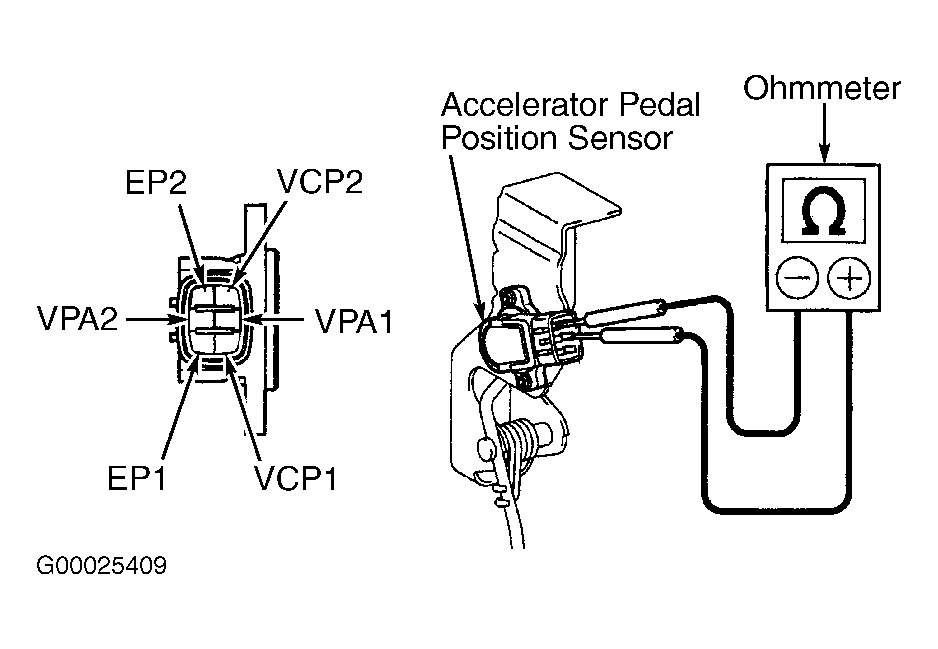

- Disconnect electrical connector at accelerator pedal position sensor. Accelerator pedal position sensor is located near top of accelerator pedal. See Fig 1.
- Using ohmmeter, check that resistance is within specification between specified terminals on accelerator pedal position sensor. See ACCELERATOR PEDAL POSITION SENSOR RESISTANCE table. See Fig 1. Replace accelerator pedal position sensor if resistance is not within specification. See ACCELERATOR PEDAL POSITION SENSOR
under ENGINE SENSORS & SWITCHES in REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.ACCELERATOR PEDAL POSITION SENSOR RESISTANCE
Application Terminals Ohms Camry VPA1 & EP2 5000 Or Less VPA2 & EP1 5000 Or Less VCP1 & EP1 2250-4750 VCP2 & EP2 2250-4750 Camry Solara VCP1 & EP1 (1) 2250-4750 VCP2 & EP2 (1) 2250-4750 (1) Resistance at 68°F (20°C).
