Vapor Pressure Sensor (Tacoma)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure ignition is off. To test vapor pressure sensor supply voltage, disconnect electrical connector from vapor pressure sensor. Vapor pressure sensor is located on top of fuel pump assembly on top of fuel tank and contains Black 3-pin electrical connector with Green/Yellow, Red/Yellow and Blue/Black wires. See Fig 1.

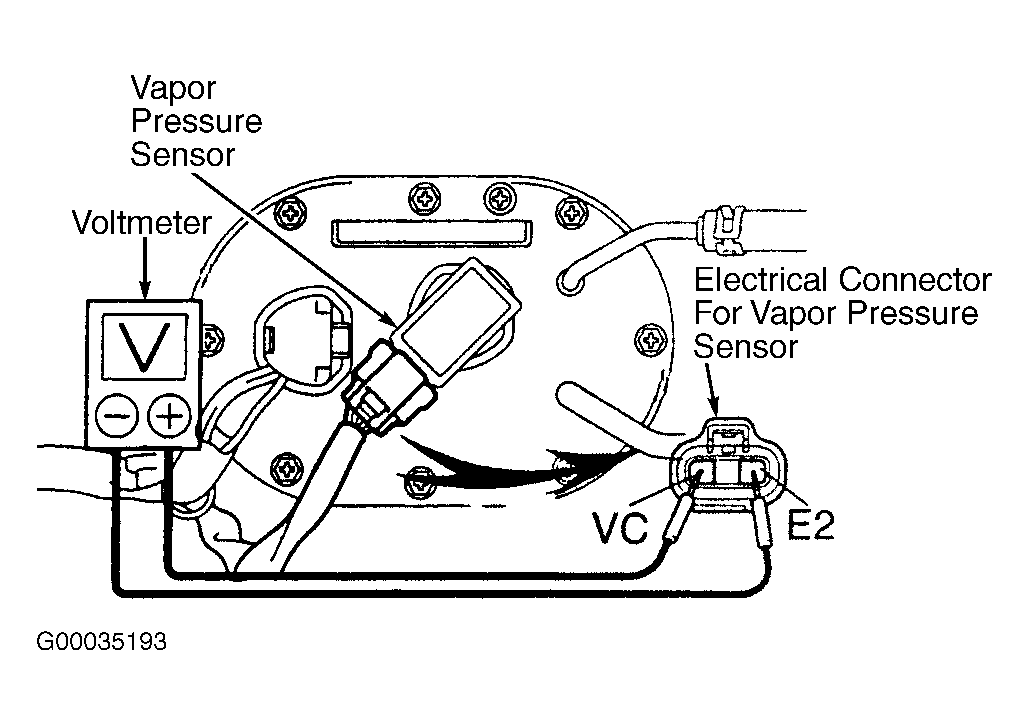

- Turn ignition on. Using voltmeter, measure vapor pressure sensor supply voltage between terminals VC and E2 on wiring harness side of electrical connector for vapor pressure sensor. See Fig 1. DO NOT use center terminal. Vapor pressure sensor supply voltage should be 4.5-5.5 volts.
- If vapor pressure sensor supply voltage is within specification, turn ignition off. Reinstall electrical connector on vapor pressure sensor. Go to next step. If vapor pressure sensor supply voltage is not within specification, check wiring circuit between Engine Control Module (ECM) and vapor pressure sensor. See WIRING DIAGRAMS article. ECM is located behind the glove box. For illustration of ECM location, see THEORY & OPERATION article. For information on accessing ECM, see ENGINE CONTROL MODULE under COMPUTERIZED ENGINE CONTROLS in REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.
- To test vapor pressure sensor output voltage, turn ignition on. Ensure electrical connector is installed on vapor pressure sensor. Remove fuel tank cap. Using voltmeter, check voltage between ECM terminals E2 (Brown wire) and PTNK (Red/Yellow wire). See Fig 2. Vapor pressure sensor output voltage should be 3.0-3.6 volts. Replace vapor pressure sensor if vapor pressure sensor output voltage is not within specification. Turn ignition off. Reinstall fuel tank cap.
