EGR Vacuum Switching Valve (Tacoma 2.7L 3RZ-FE)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect electrical connector from EGR Vacuum Switching Valve (VSV). See Figure. EGR VSV is located on bracket, near throttle body and contains Green 2-pin electrical connector with White/Red and Red/Black wires.
- Using ohmmeter, check that continuity exists between electrical terminals on EGR VSV and that resistance is 33-39 ohms at 68°F (20°C). Replace EGR VSV if no continuity exists or resistance is not within specification.
- Ensure no continuity exists between each electrical terminal and body of EGR VSV body. Replace EGR VSV if continuity exists between electrical terminal and body of EGR VSV.

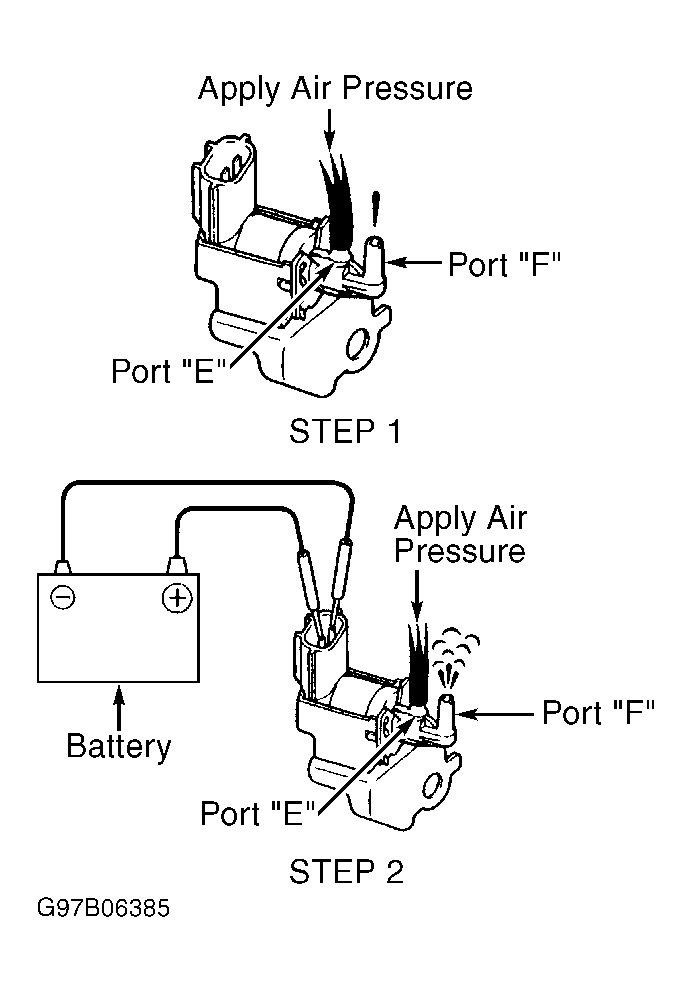

- To test EGR VSV operation, apply air pressure to port "E". Ensure air does not flow from port "F". Perform STEP 1 in illustration. See Fig 1.
- Apply battery voltage and ground to electrical terminals on EGR VSV. Apply air pressure to port "E". Ensure air flows from port "F". Perform STEP 2 in illustration. See Fig 1. Replace EGR VSV if defective.
