Acoustic Control Induction System Vacuum Switching Valve: Celica
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Acoustic Control Induction System (ACIS) Vacuum Switching Valve (VSV) may also be referred to as intake air control valve system VSV.

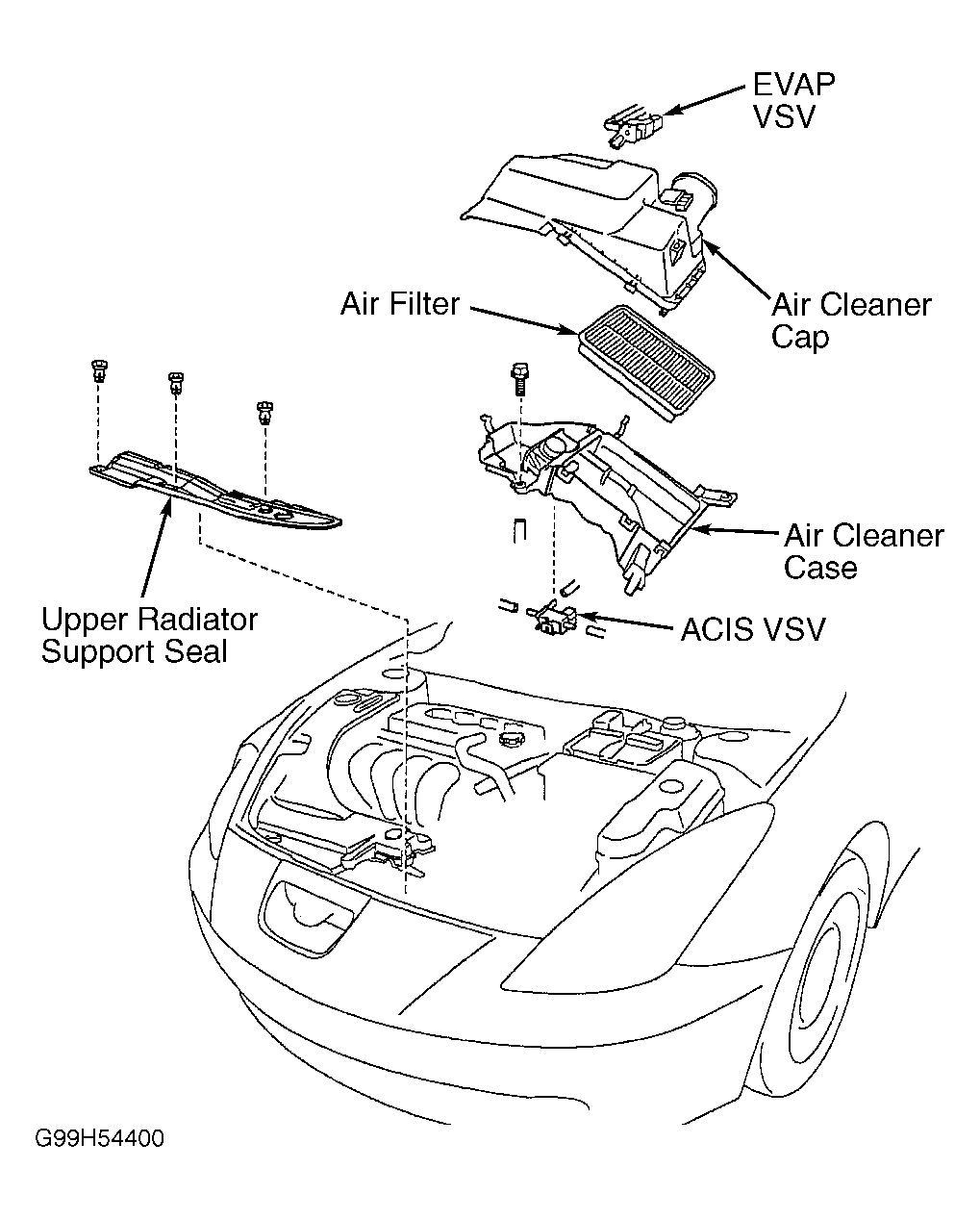

- Remove necessary components for access to ACIS VSV. ACIS VSV is located on bottom of air cleaner case. See Fig 1.
- Remove ACIS VSV. Using ohmmeter, ensure continuity exists between electrical terminals on ACIS VSV and that resistance is 37-44 ohms at 68°F (20°C). Replace ACIS VSV if no continuity exists or resistance is not within specification.
- Using ohmmeter, ensure no continuity exists between each electrical terminal and body of ACIS VSV. Replace ACIS VSV if continuity exists between electrical terminal and body of ACIS VSV.

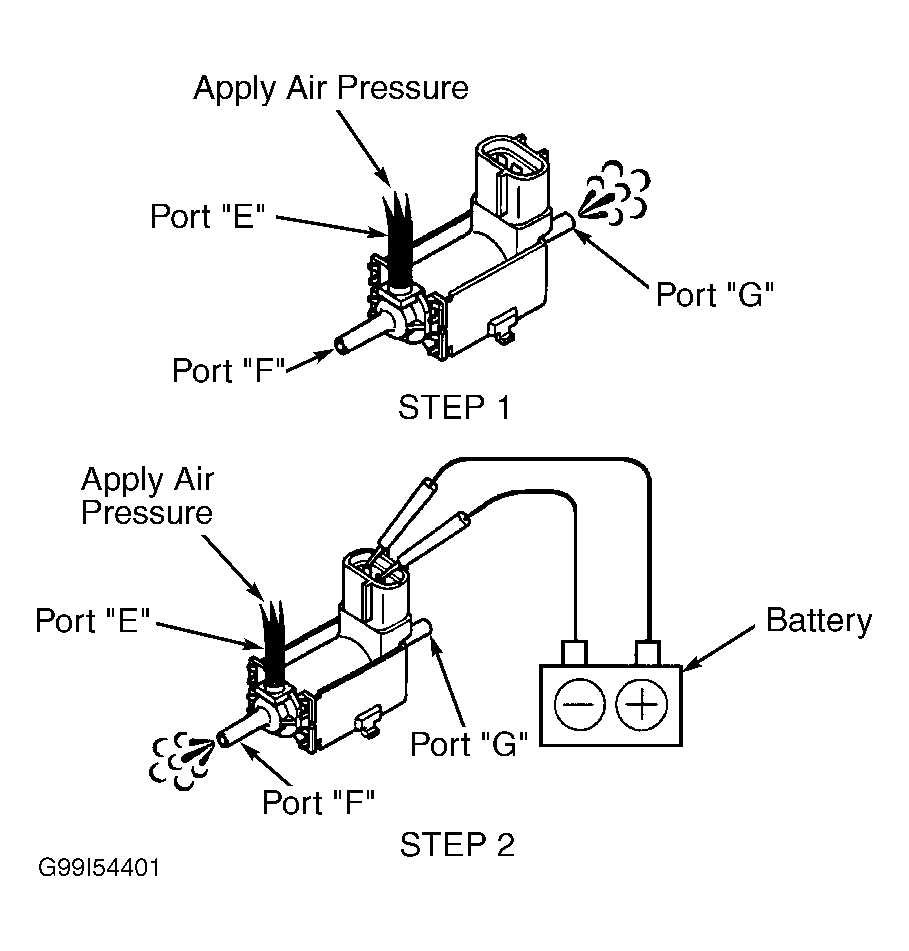

- To test ACIS VSV operation, apply air pressure to port "E". Ensure air flows from port "G". Perform STEP 1 in illustration. See Fig 2.
- Apply battery voltage and ground to electrical terminals on ACIS VSV. Apply air pressure to port "E". Ensure air flows from port "F" and not from port "G". Perform STEP 2 in illustration. See Fig 2. Replace ACIS VSV if defective. Reinstall ACIS VSV.
