Diagnostic Trouble Codes Abs Warning Light Always On - Malfunction In Skid Control Ecu: Wiring Diagram
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

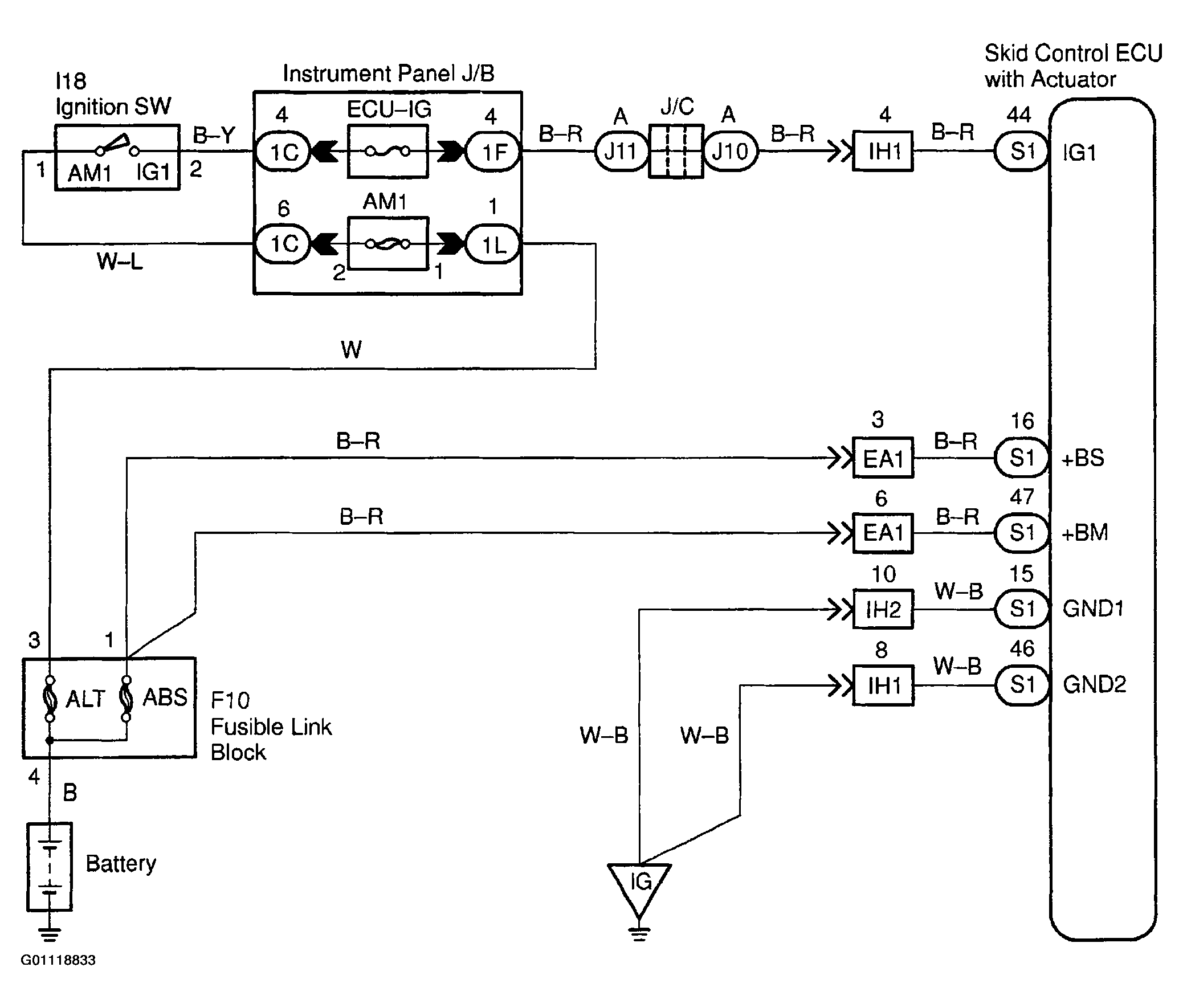

For ABS warning light and skid control ECU wiring diagram, see Fig 1.
For complete ABS System Wiring Diagrams, see ANTI-LOCK BRAKES in SYSTEM WIRING DIAGRAMS article.
