DTC C1251/51: Abs & VSC Pump Motor Lock: Wiring Diagram
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

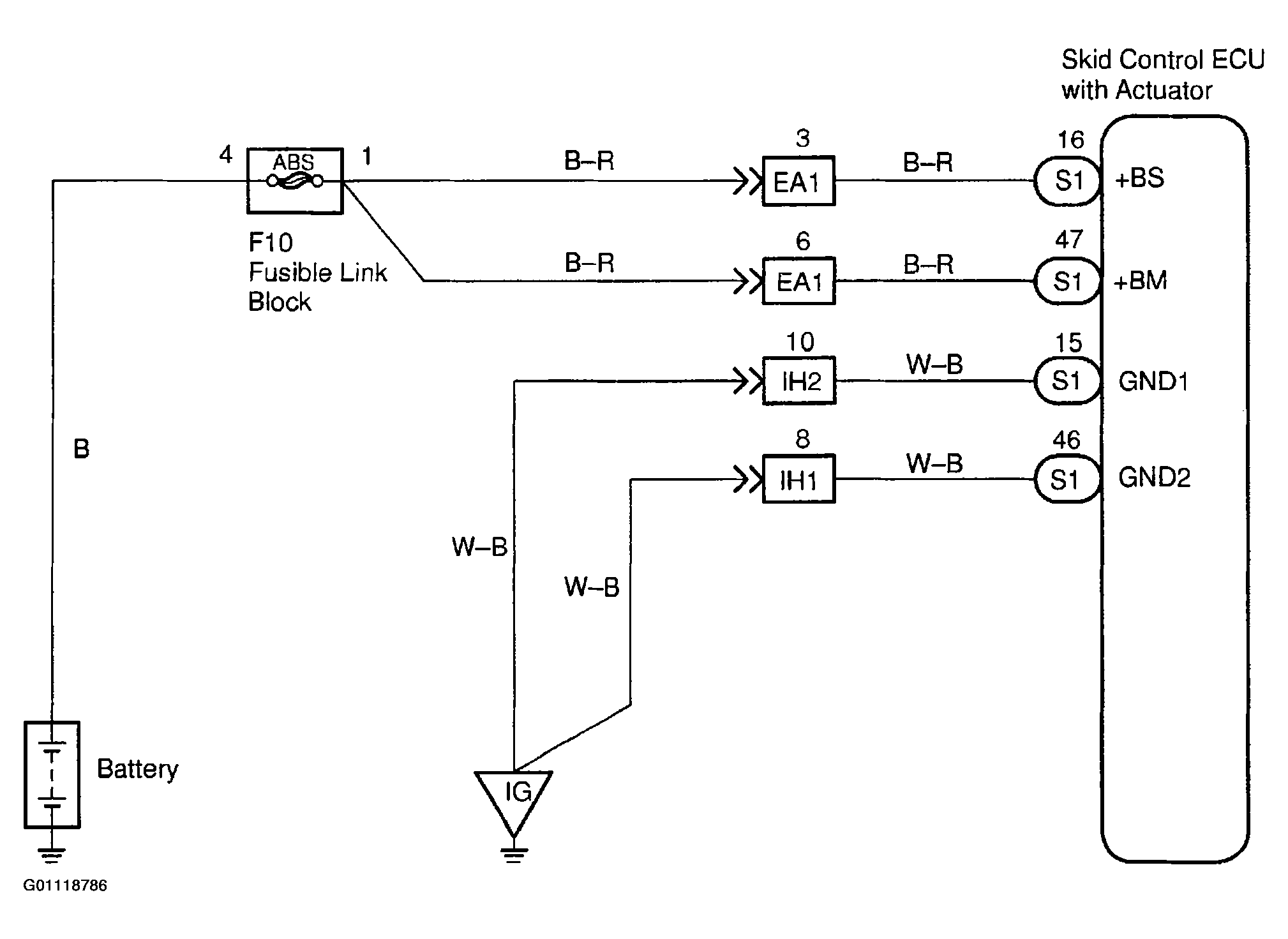

For wiring diagram of ABS & VSC pump motor lock, see Fig 1.
For complete ABS System Wiring Diagrams, see ANTI-LOCK BRAKES in SYSTEM WIRING DIAGRAMS article.
