DTC C1241/41: IG Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram of yaw power source circuit, see Fig 1.

For complete ABS System Wiring Diagrams, see ANTI-LOCK BRAKES in SYSTEM WIRING DIAGRAMS article.

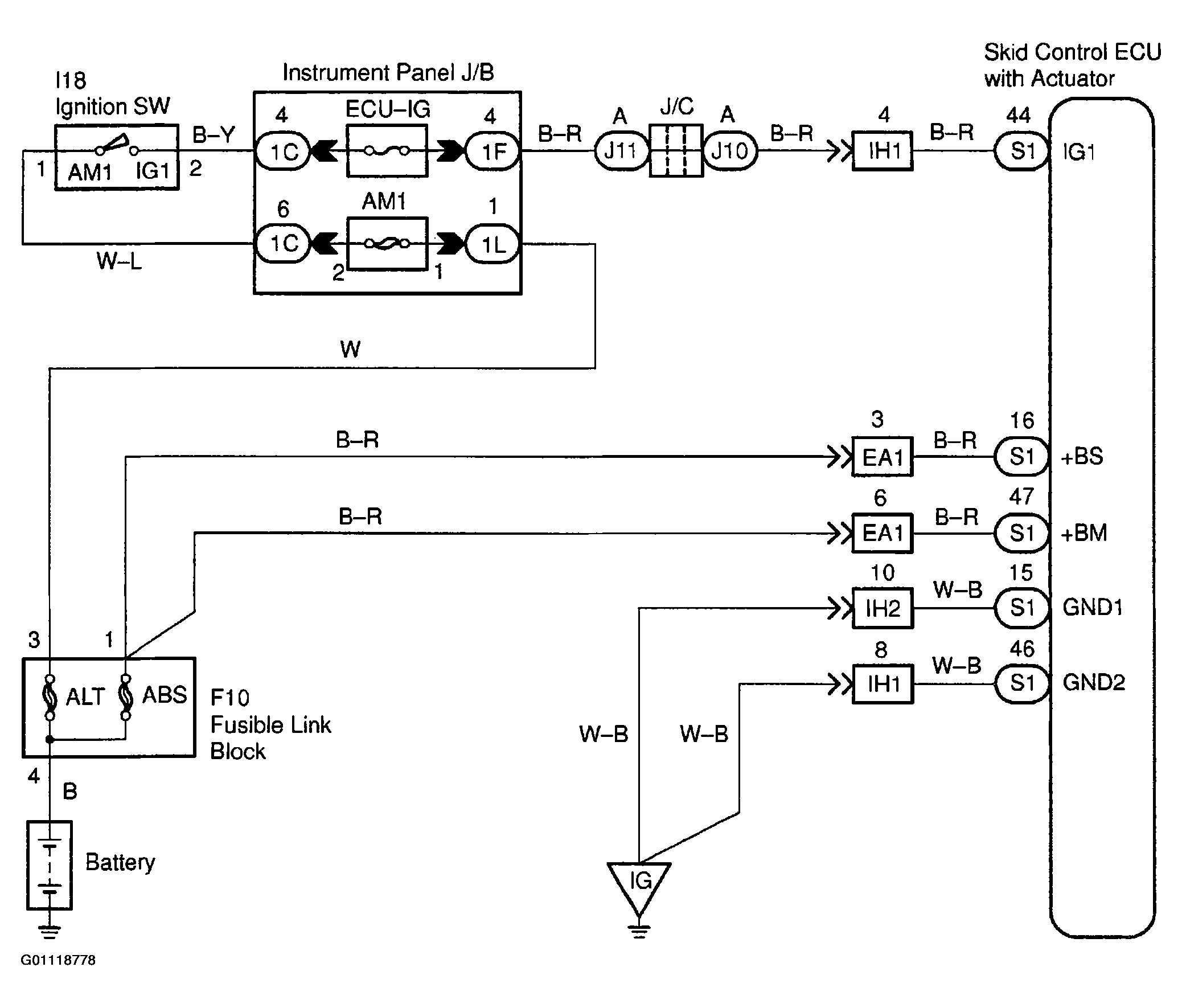

Fig 1: Yaw Power Source Circuit Wiring Diagram
G01118778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
