Circuit Description
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

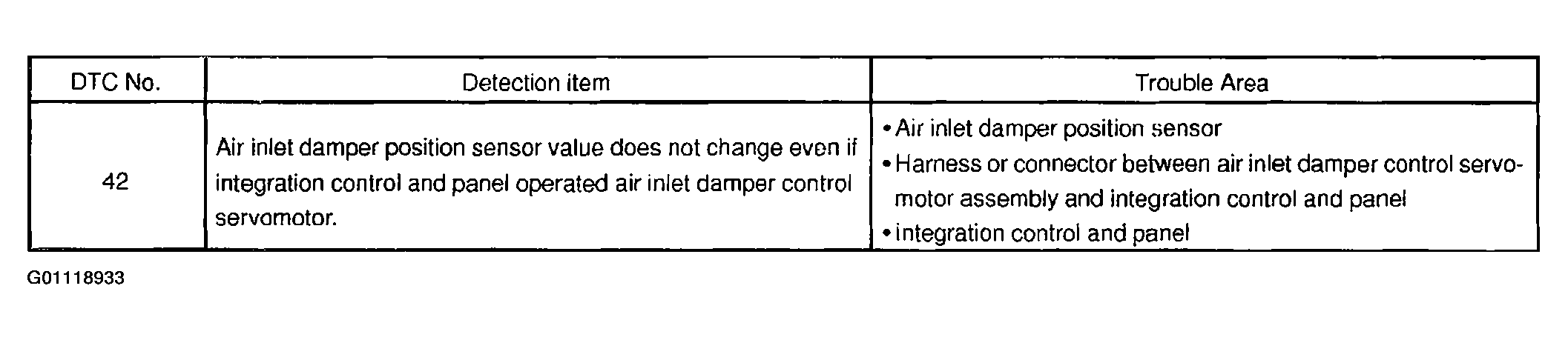

The air inlet damper control servomotor is controlled by the integration control and panel and moves the air inlet damper to the desired position.
