Inspection Procedure

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check Voltage Between Terminals TPH And SG Of Integration Control And Panel Connector
    Fig 1: Locating Integration Control And Panel Connector Terminals TPH & SG
    G01118927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Preparation:

    Remove integration control and panel with connectors still connected.

    Check:

    1. Turn ignition switch to ON.
    2. NOTE: As the temperature increases, the voltage decreases.
      Fig 2: Integration Control And Panel Connector Terminals TPH & SG Voltage Specifications
      G01118926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Change the set temperature to activate the rear air mix damper control servomotor, and measure the voltage between terminals TPH and SG of integration control and panel connector each time when the set temperature is changed.

    OK:

    1. NG: Go to step 2.
    2. OK: Proceed to next circuit inspection shown on problem symptoms table. See  PROBLEM SYMPTOMS TABLE  . However, if DTC 37 or 47 is displayed, check and replace integration control and panel.
  2. NOTE: As the water valve damper control servomotor moves from cool side to hot side, the resistance decreases.
    Fig 3: Integration Control And Panel Connector Terminals TPH & SG Resistance Specifications
    G01118928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

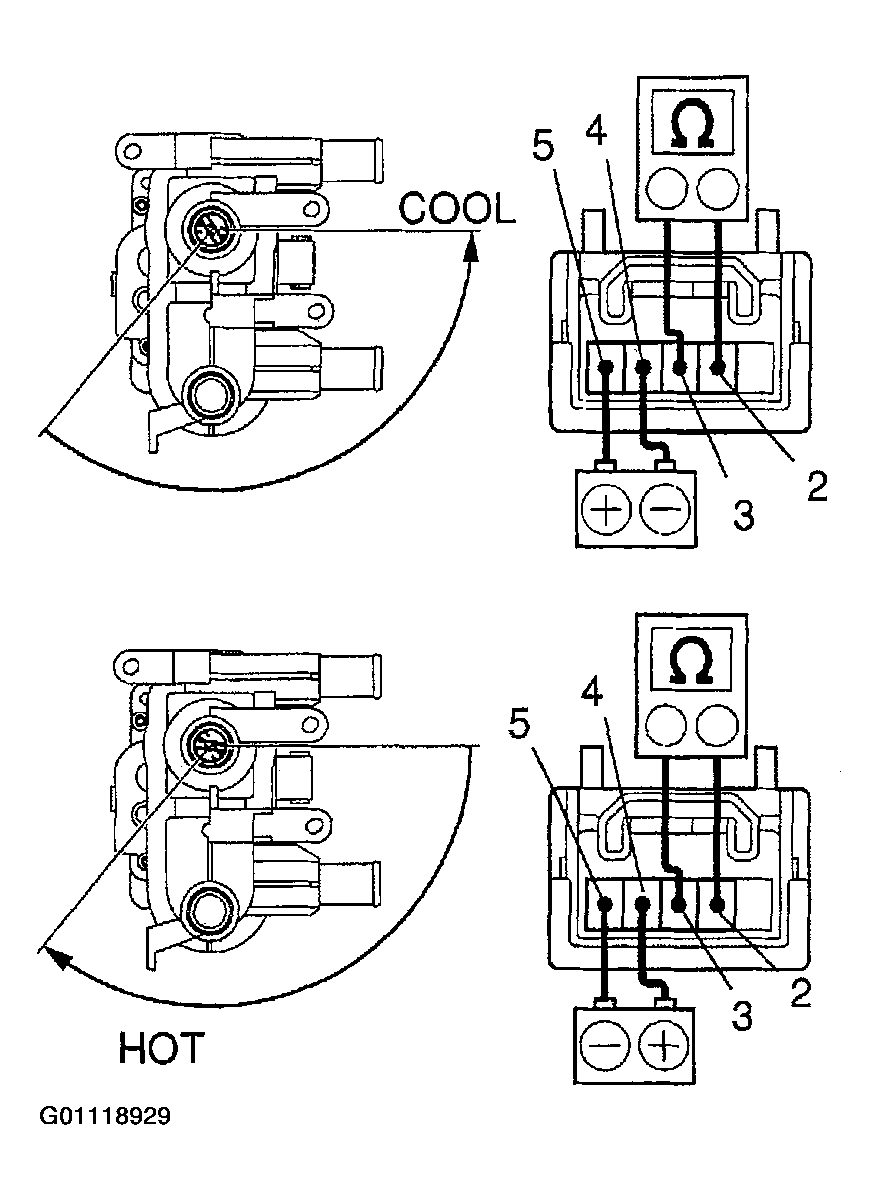

    Fig 4: Testing Water Valve Damper Control Servomotor Assembly Terminals 2 & 3 Resistance
    G01118929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Check Water Valve Damper Position Sensor

    Preparation:

    Remove REAR A/C EVAPORATOR .

    Check:

    Measure resistance between terminals 1 and 2 of water valve damper control servomotor assembly connector.

    OK:

    Resistance: 4.2 - 7.8 kΩ  .

    Check:

    While operating water valve damper control servomotor, following the procedure, measure resistance between terminals 2 and 3 of water valve damper control servomotor assembly connector.

    OK:

    1. NG: Replace water valve damper control servomotor assembly.
    2. OK: Go to next step.
  4. Check Harness And Connector Between Integration Control And Panel And Water Valve Damper Control Servomotor Assembly
    1. NG: Repair or replace harness or connector.
    2. OK: Check and replace integration control and panel.
