Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the position of the air mix damper and sends the appropriate signals to the integration control and panel.

The position sensor is built into the water valve damper control servomotor assembly.

Fig 1: Graphing Relationship Of TP Terminal Voltage To Air Mix Damper Opening Angle

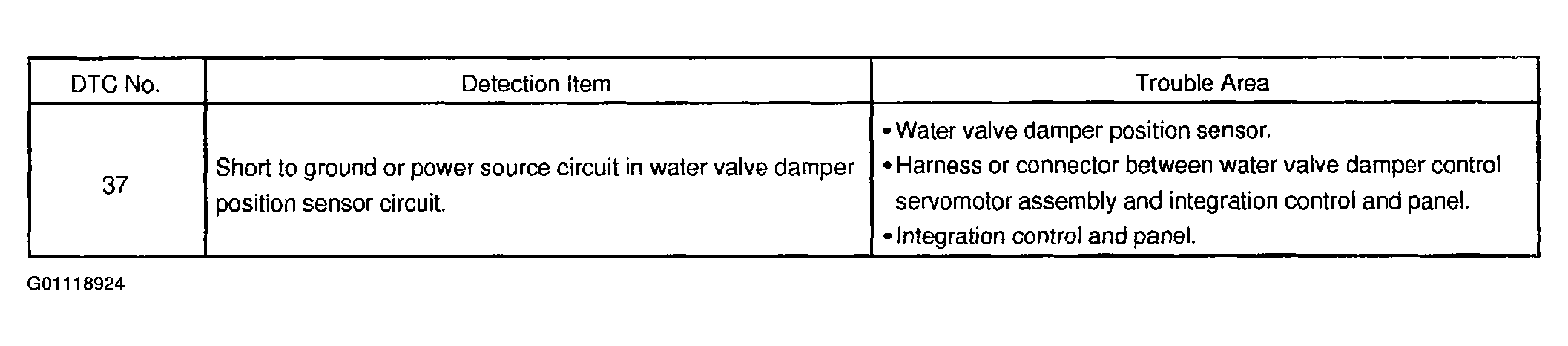

Fig 2: DTC 37 Detected Conditions & Trouble Areas
