Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the position of the air inlet damper and sends the appropriate signals to the integration control and panel.

The position sensor is built into the air inlet damper control servomotor assembly.

Fig 1: Graphing Relationship Of TPI Terminal Voltage To Damper Opening Angle

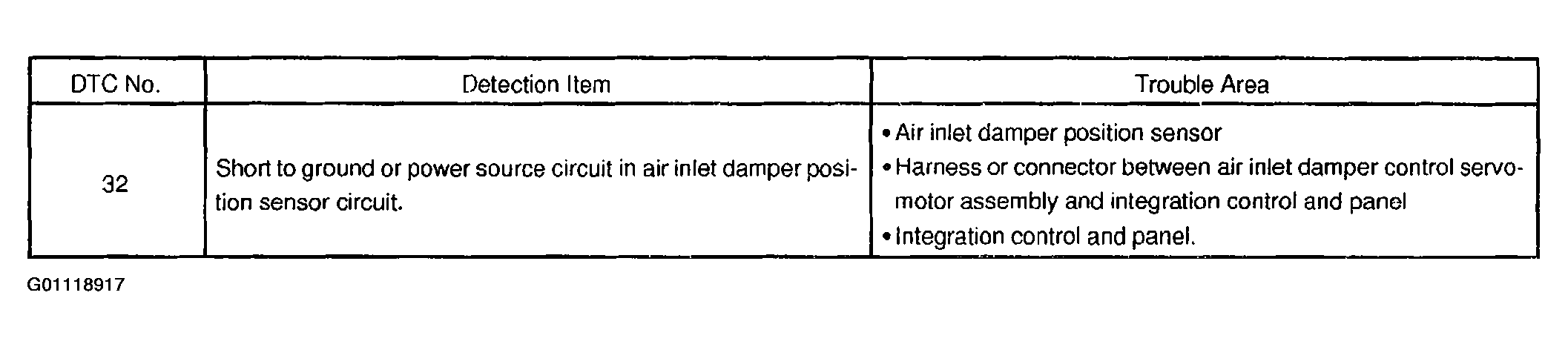

Fig 2: DTC 32 Detected Conditions & Trouble Areas
