Circuit Description
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
This sensor sends 1 pulse per engine revolution to the integration control and panel.

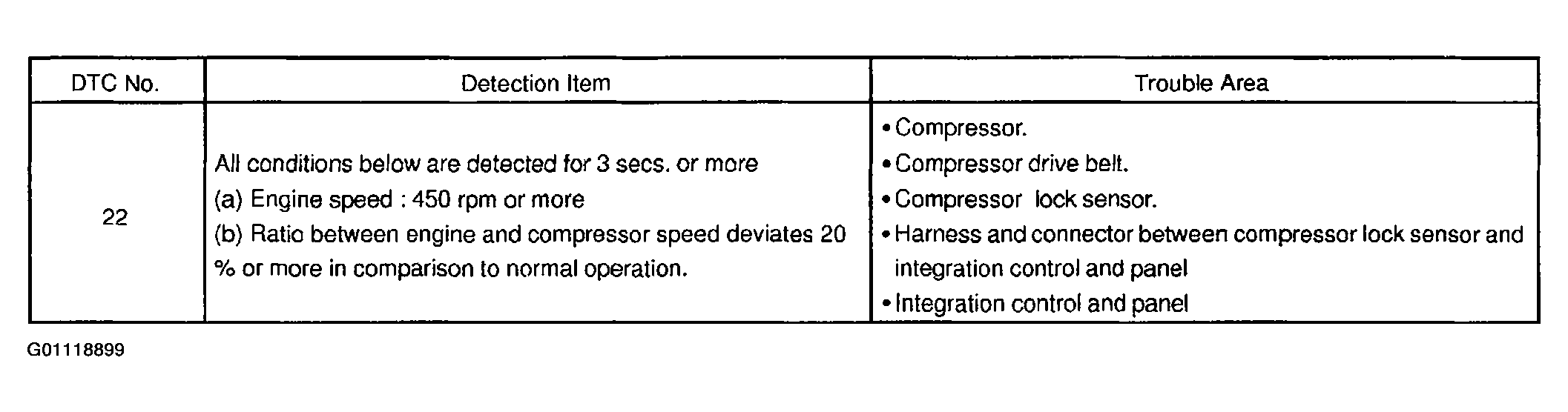

If the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the integration control and panel turns the compressor OFF. And, the indicator flashes at about 1 second intervals.
